Fracarro OPT-PDM-MINI fiber optic kit for DTT and SAT signals 270700
FRA 270700
8016978106127

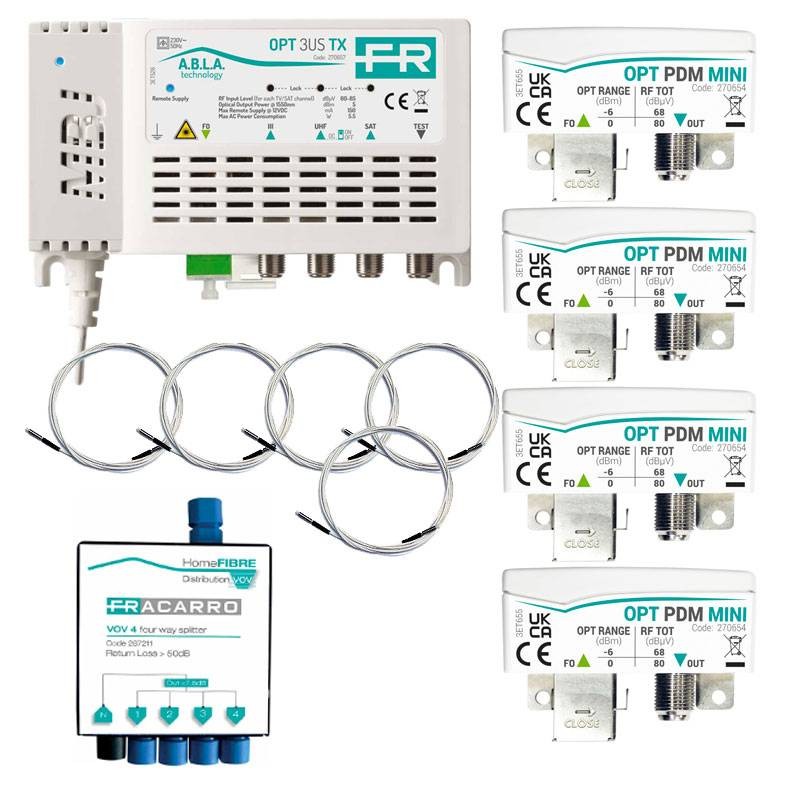

Fracarro OPT-PDM-MINI 4-point fiber optic kit for fiber optic distribution of DTT and SAT 270700 signals, consisting of:
- 1 OPT-MBJ three-input optical transmitter for distribution of band 3, UHF and a full IF-IF band signals on a single fiber;
- 1 4-way miniaturized optical splitter;
- 5 Mono modal fiber optic patch cords of 10 m each; and
- 1 SC/APC adapter patch cord - Mini;
- 4 Miniaturized passive optical receivers (can be placed in 503 boxes) with a wideband RF output for receiving TV+SAT signals distributed on a single fiber
The kit makes it possible to distribute DTT and SAT IF-IF signals over 4 TV points using the advantages of fiber optics: almost zero attenuation, total immunity to electrical interference, and the possibility of using channels at the limit of saturation.
Fracarro OPT-PDM-MINI fiber optic kit for DTT and SAT signals 270700
€320.62
Tax included
€320.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Pay in installments with Klarna
KIT component specifications:
OPT 3US TX optical transmitter code 270657:
Three-input OPT-MBJ optical transmitter for distribution of band 3, UHF and a full IF-IF band signals on a single fiber. Optical output level of 5dBm with laser, wavelength 1550nm. (dimensions 135x82x39mm):
- OPT 3US TX: Up to 20dB of manageable optical attenuation (division ratio greater than 1:32 on P.O.N. distribution) if TX is used together with OPT-RX receiver
- OPT T+S TX PLUS: Up to 24dB of manageable optical attenuation (division ratio greater than 1:64 on the P.O.N. distribution) if the TX is used together with the OPT-RX receiver
- A.B.L.A. Technology: this exclusive FRACARRO system allows the correct optical level to be maintained by special independent electronic circuits, even if the RF input level of each input changes
- Dedicated A.B.L.A. status LEDs
- Separate amplification: the new OPT-MBJ optical transmitter works with "separate amplification" and independent management of input RF signals
- Protective shell: OPT-MBJ optical transmitters and receivers are protected by an innovative protective bell made of flame-retardant ABS material (Class V0)
- Optical output level stabilization even for high variations in RF input signal
- Monitor output: RF output connector to monitor the RF signal without disconnecting the service from the distribution network
- OPT RX: Immediate indications of compliance with correct working conditions. Separate LEDs for received optical power and RFP|P presence Dedicated LEDs for monitoring optical input level status and RF presence
- Broadband TV / SAT
- Suitable for mounting on standard DIN rail (with quick release)
- Low power consumption
- Power status LED
- Quick and easy installation (Plug&Play)
- High shielding against electromagnetic interference
- Standard SC/APC connectors
- RF inputs 3 (3, UHF, IF-IF)
- RF outputs 1 (TEST)Optical output 1 SC/APC
SAT inputs:
- MHz frequency band 950-2150
- Type of connectors F Female
- Reflection loss dB 8
- Input level dBµV 60-85 @TP
TV input:
- Frequency band MHz 174-230, 470-790
- Type of connectors F Female
- Reflection loss dB 8
- Input level dBµV 60-85 @MUX
Test Output:
- Frequency band MHz 174-230 / 470-790 / 950-2150
- Type of connectors F Female
- Test attenuation dBµV 59 (VHF), 70 (UHF, SAT)
Optical output:
- SC/APC connector type
- Wavelength 1550
- Optical power dB 5
- Optical reflection loss dBµV >30
- Safety grade 1M
Main features:
- Supply voltage Vac, Hz 230, 50-60
- Power consumption W 5.5
- Tele power supply mA, V 100, 12 (on UHF input)
- Working temperature °C -10 - +55
- CAG dynamics dB 25
- Light indications dBµV Blue on / Signal in the correct A.B.L.A. range, tele power supply active
- CEI EN 50083-2 EN60065 Regulatory Compliance
- Dimensions mm 135x82x39
OPT-PDM-MINI passive optical receiver 270654:
Miniaturized passive optical receiver with one wideband RF output for receiving TV+SAT signals distributed over a single fiber. Optical input range of 0 to -6dBm; optical window of operation 1270-1610nm. (dimensions 47x33x15mm).
Features:
- Standard MINI (LC) quick connectors.
- Managed frequency band: 88-2350MHz
- Optical input 1 MINI
- RF Outputs 1 (TV + SAT)
Optical input:
- MINI connector
- Wavelength nm 1270-1610
- Optical reflection loss dB -50
- Maximum optical input power dB 10 (0 to -6 operation)
RF output:
- MHz frequency band 88-2350
- Connector type Type F Female
- Reflection loss dB -7
- Total output level dBµV 68@-6dBm; 80@0dBm
- Digital Terrestrial output level dBµV 61 per Mux @0dBm
- Satellite output level dBµV 55 per TP @0dBm
Main features:
- Working temperature: 0+40°C
- CEI EN 50083-2 EN60065 compliance.
- Dimensions mm 47x33x15
Miniature optical splitter code 287211:
Suitable for indoor F.O. deployments where space is limited:
- Inputs No. 1
- Outputs No. 4
- Type of connectors Type Mini
- Wavelength nm 1290-1600
- Insertion loss dB <7.8
- Reflection loss dB >55
- Isolation dB >45
- Working temperature: 20+55°C
- Dimensions mm 83x59x17
Data sheet
- Type: Glass Fiber Kit
