Urmet MININOTE KIT Videophone One-family and MIKRA2 1722/95
UTD 1722/95
8021156068746

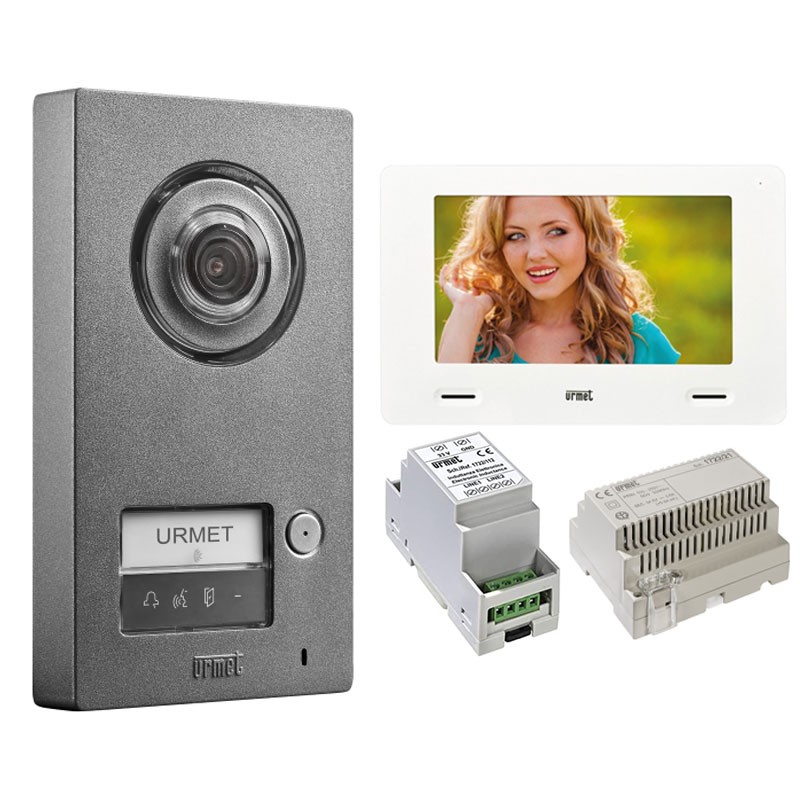

Urmet KIT Videophone Single-family consisting of:
- 1 piece 1784/1 Push-button panel, Mikra2, 1 button, wall-mounted
- 1 piece Videophone, cxModo, 7" touchscreen
- 1 unit 1722/21 Power supply unit
- 1 piece 1722/112 Audio/video inductor
Urmet MININOTE KIT Videophone One-family and MIKRA2 1722/95
€742.29
Tax included
€742.29
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
: 2
Pay in installments with Klarna
Frequently bought together
The kit offers the usual video door phone functions of answering, opening the door, opening the driveway, auto-on to an external station; in addition it allows up to 4 total devices with simultaneous calls and the possibility of making intercom calls from one video door phone to another.
The kit is also equipped with YOKIS home automation functions by means of the on-board radio transmitter; this makes it possible to have 12 icons on the touch screen that activate YOKIS home automation scenarios.
The Mini Note Plus model video door phone kits are easy to install thanks to the use of just two non-polarised wires for interconnecting the various devices. The features of the video entry system are as follows:
- Single-family colour video door entry kit 1722/95 with hands-free voice
- Connection of all devices with only 2 non-polarised wires
- Possibility of connecting the power supply in any place in the system between the call station and video door phone
- Each user can have up to 4 video door phones (1 Master and 3 Slaves) called in parallel.
- Kit 1722/95: allows use of 2 video door phones without any additional power supply.
- Call station with weatherproof zamak front panel (IP55)
- Colour call station camera and LED subject illumination
- Backlit white name tag
- Call forwarding confirmation with acoustic signalling and switching off of name tag backlighting LEDs
- Hands-free video entry panels with 7" colour screen
- OSD menu with audio and video adjustments
- Hands free conversation mode
- Call melodies selectable by the user among the 5 available
- Adjustable call volume with possibility to exclude it completely (mute function)
- Activated mute signalling by means of a flashing red LED
- Yokis module programming signalled by blue led
- Clock function with backup time of 1 hour.
Basic functions:
- Activation of the pedestrian electric lock with capacitive discharge and holding current, with programmable activation time
- Activation of a second lock (driveway) with dry contact
- Provision for connection of a push button for activating the electric pedestrian lock locally
- Provision for connection of a push button for activation of driveway door opener locally
- Auto-insertion function on the call station by any video door phone (Master/Slave)
- Possibility of connecting an additional ringer or wireless call repeater to the Master video door phone for call repetition
- Intercom call between video door phones within the same apartment (function available on both video door phone kits).
There are no reviews
Data sheet
- KIT: Video Doorphone Kit
- Model: Single-family house
- System: 2-Wire
