Urmet ALPHA Video Base Kit with VOG5W WIFI 2Voice White 1783/734
UTD 1783/734
8021156075324

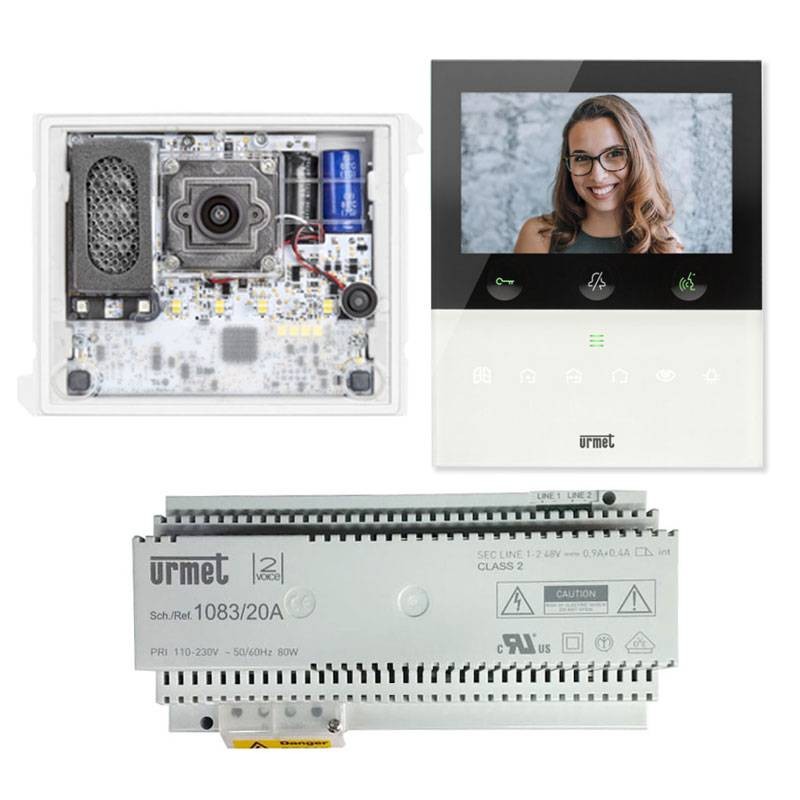

Basic Video Kit Urmet 2Voice system consisting of:
- 1 Piece code 1083/48 Video door station with DDA, Alpha, 2voice system
- 1 Piece code 1083/20A Power supply for 2Voice system
- 1 Piece part number 1760/16 Hands-free video door station with Wi-Fi VOG5W, white, 5" display, 2voice system
Represents the minimum unit to set up a 2Voice system with Alpha push-button panel and video intercoms with Wi-Fi VOG5W.
Expandable with additional button modules and/or accessories, recessed boxes and frames to complete 2Voice common parts.
With the kit you save compared to individually purchased items
Urmet ALPHA Video Base Kit with VOG5W WIFI 2Voice White 1783/734
€580.15
Tax included
€580.15
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 14
Pay in installments with Klarna
Frequently bought together
Specifications of individual kit components:

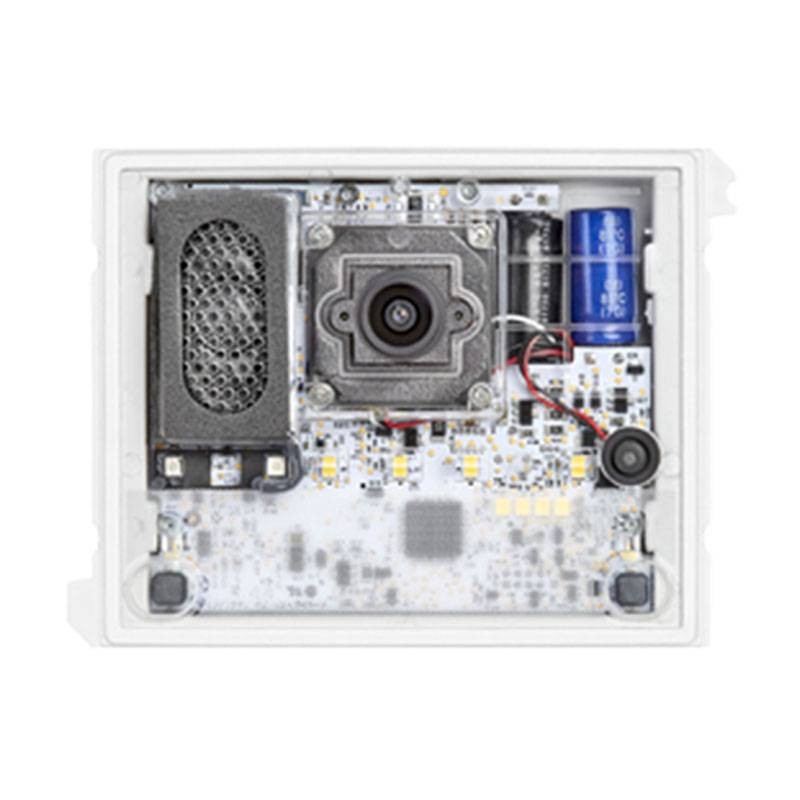

Alpha, audio-video door station with DDA 2voice code 1083/48:
- Audio/video unit on Alpha push-button panel for 2Voice system.
- Equipped with wide-angle camera, led lighting with brightness sensor, speaker and microphone
- System status signaling via 3 leds
- Local programming or via smartphone/tablet/PC
- Management of 2 electric locks: pedestrian and driveway;
- Prepared for 2 call buttons
- To be completed with faceplate
- Input for hallway button for door opening
- Size: 1 Alpha module

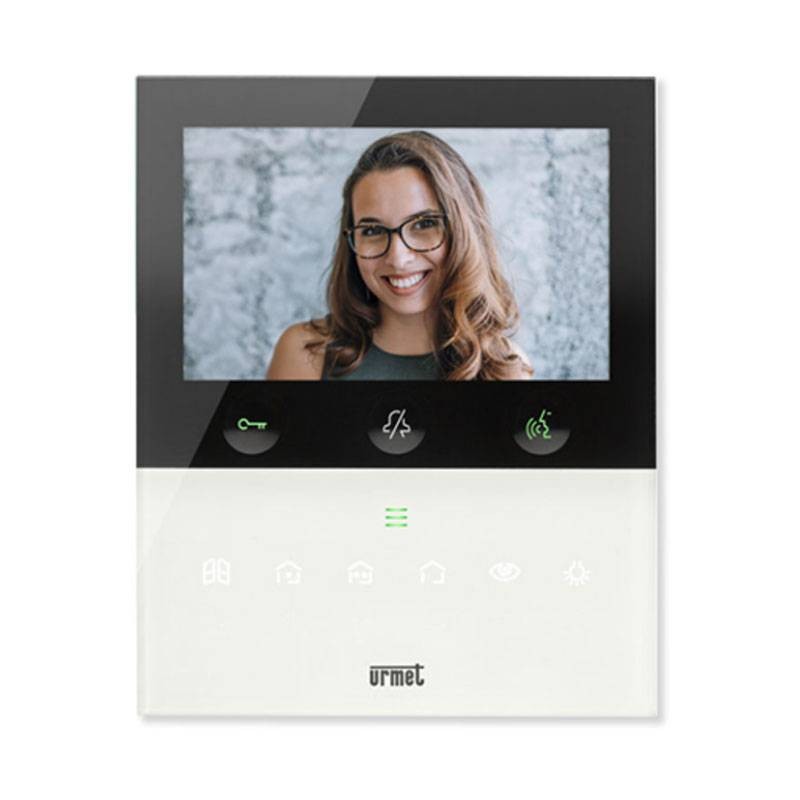

Urmet VOG5W WIFI integrated handsfree videophone, 2Voice system, White color:
- Wall or table-top mounting
- Display 5 - 800 x 480 px resolution
- Soft touch buttons with dynamic management
- IR sensor for controls through gestures
- Voice commands
- 32 intercom calls
- 32 additional activations
- 8 Yokis radio commands
- Emergency call on switchboard and Urmet CallMe app
Advantages:
- Hands-free video intercom with 5" color display in 16:9 format and glass front panel
- Equipped with Wi-Fi for call transfer to smartphone
- Soft touch buttons with contextual appearance
- Equipped with IR sensor for touchless mode commands using hand swipe
- Allows voice commands for most functions
- Compatible with Alexa voice assistant
- Voice commands, both proprietary and using Alexa, require internet connection via Wi-Fi
- MUTE function with both traditional and 8-hour pre-set self-reset as well as ON-OFF scheduling on a daily basis
- Allows for 32 intercom calls to other apartment stations and 32 additional activations of auxiliary services
- Allows for auto insertion on the outdoor button panel and display of other control cameras on the 2Voice system
- Automatic door opener on call (doctor function) with daily programming
- Call buttons to switchboard and staircase lights on
- Yokis 8-channel on-board radio transmitter for as many home automation commands or scenarios
- Ringtones selectable from 5 possible
- Floor call input, output for call repeat on an external ringer, and two outputs for as many activations
- Tactile recognition for the blind for answer and door opening buttons
- Equipped with aid for the hearing impaired
- Glass front panel. White color
Features:
- 5" TFT display 800 x 480 pixel resolution
- Idle consumption: 3 mA
- Max consumption: 160 mA
- Max switchable current and voltage on outputs 50 mA 24Vdc/Ac
- Wi-Fi 2.4 GHz
- 3 operation modes
- Mounting on 503 or round 60mm diameter box
- Operating temperature: -5° +50° C
- Dimensions: 160 x 130 x 26 mm

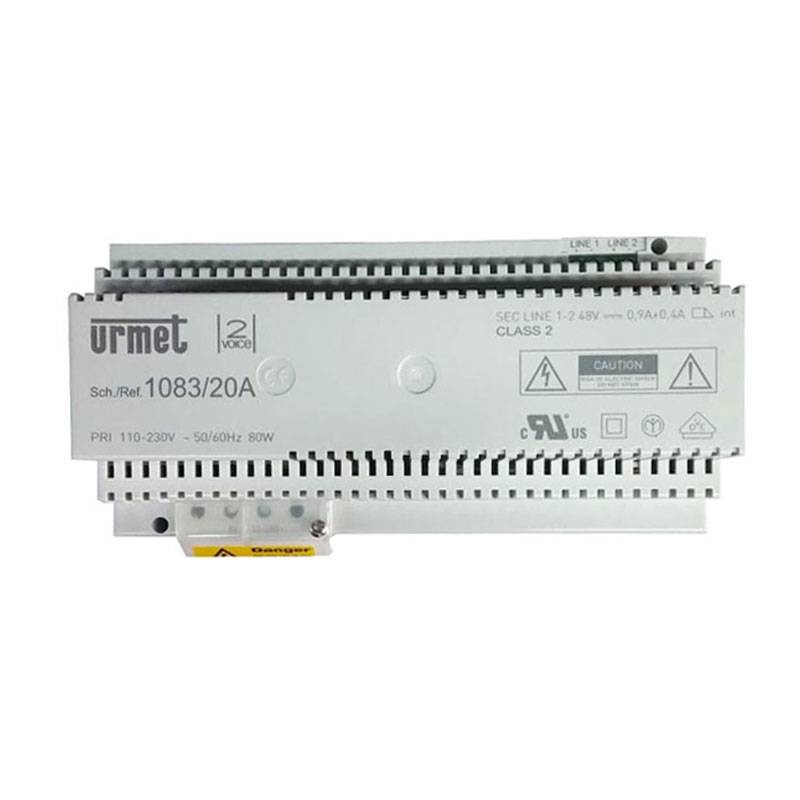

Urmet 2VOICE system power supply 1083/20A:
Urmet 2VOICE POWER SUPPLY 2VOICE system power supply, with the following features:
- Voltage: 110- 230 Vac
- Output voltage: 48V
- Frequency 50/60 Hz
- 10 Din modules
- Protection class 2
- For 2VOICE system
There are no reviews
Data sheet
- KIT: Basic Kit Video Doorphones
- System: 2-Wire
- WIFI: Yes
