Urmet Note2 Video Door Phone Kit WIFI Single-Family 1723/95
UTD 1723/95
8021156070404

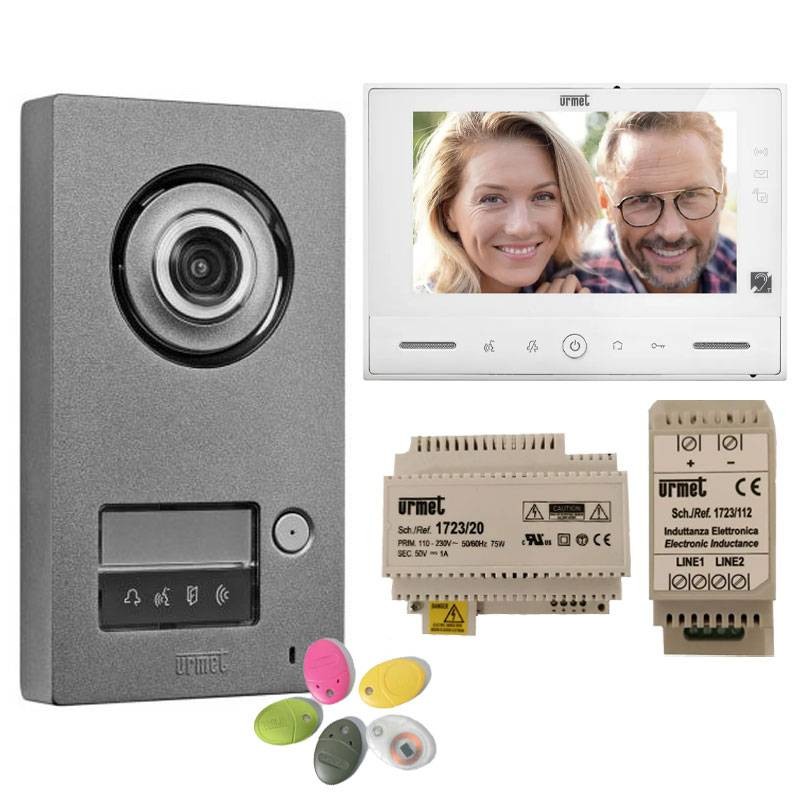

Urmet Note2 Single-family video intercom kit consisting of:
- 1 code 1723/11 Single-family video entry panel, Mikra2, wall-mounted
- 1 code 1723/98 Videophone vModo for 2-wire kit range 1723, display 7, touchscreen, WiFi

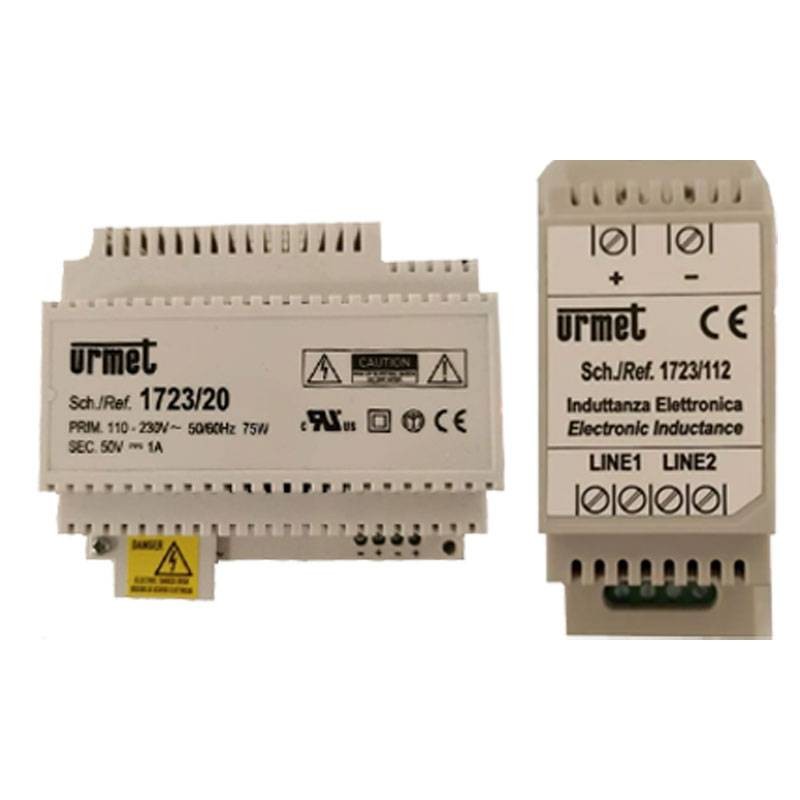

- 1 code 1723/112 Audio/video inductor, for 1723 kit
- 1 code 1723/20 Power supply for 1723 kit
- 5 proximity keys for door opening
Has advanced home automation functions and call deferral to smartphone
2-wire system system.
With the kit you save compared to individually purchased items
Urmet Note2 Video Door Phone Kit WIFI Single-Family 1723/95
€569.84
Tax included
€569.84
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
The kit provides integrated management of Yokis radio home automation controls; in addition, it offers the function of video door phone answering service for up to 32 images. The IP55 outdoor push-button panel is equipped with an integrated proximity key reader for door opening, wide-angle camera (113° H 92° V) and system status signaling via backlit icons.
The kit also provides the possibility of having up to 4 video door phones in simultaneous calling and intercommunicating calls, and the possibility of adding a second video button panel and a control camera. There is also a call forwarding function to smartphones or tablets.
Advantages:
- The 7" touchscreen video intercom allows easy management of functions
- Up to 4 video intercoms can be connected in simultaneous call
- Allows 8 YOKIS radio commands to be activated with the on-board transmitter plus 4 composite scenarios
- Equipped with an alarm input that can be connected to a sensor or burglar alarm control panel to send an alarm indication to the smartphone
- Input for a YOKIS temperature probe that can be combined with a YOKIS radio control to be connected to the boiler to perform the thermostat function
- Allows voice messages to be recorded to be left for other members of the household (electronic POST-IT function) and intercom calls to be made between video intercoms in the housing unit
- External push button panel is equipped with 3 LEDs for signaling system status and proximity key reader with MIFARE technology to open the door (5 keys supplied with the kit)
- Possibility of adding a second push-button panel to the system and 4 control cameras via external accessory viewable from the video door phone
Kit component specifications:
MIKRA2 single-family push-button panel for kit 1723:
- 1-button video door entry panel in Zamak.
- Equipped with wide-angle camera with LED lighting
- Manages 2 entrances, pedestrian entrance and driveway
- Allows the pedestrian entrance to be opened by proximity key
- Equipped with backlit icons for status indication of video door phone functions
- Connection with 2 wires
- Dimensions (H x W x D) : 180 x 100 x 28 mm
- Surface wall mounting. Can be flush wall mounted with accessory 1723/50
- Degree of protection IP55

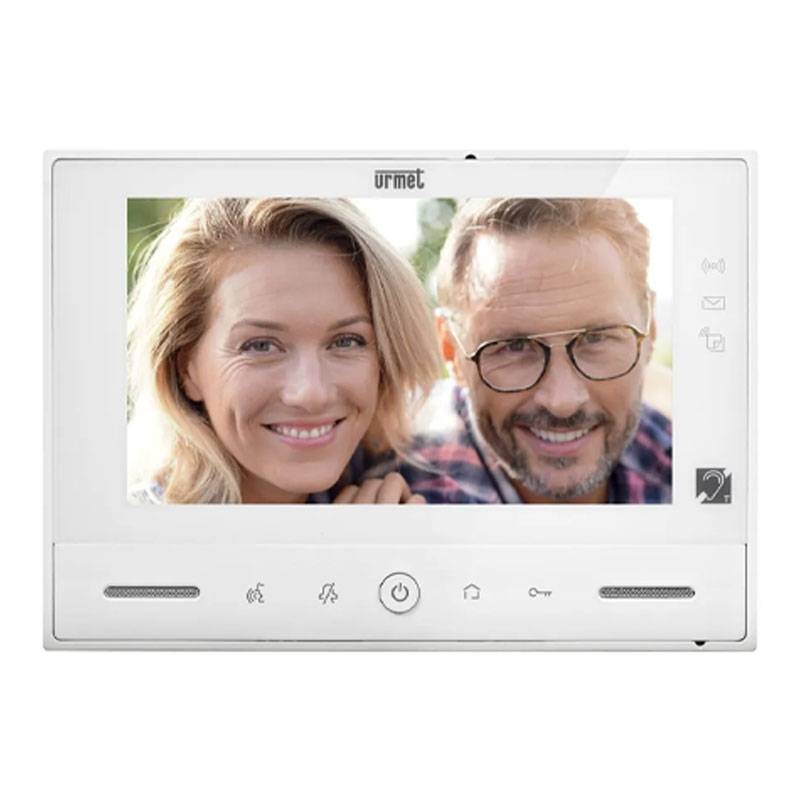

Videointercom Modo 7" touchscreen Wi-Fi for 1723 kit:
- The videophone is to be used as a replacement for the Modo 7" supplied with NOTE2 kits 1723/95 and 1723/96
- MODO color hands-free model in white ABS with glossy finish
- Built-in Wi-Fi to allow calls to be transferred to smartphone with free Callme app
- 7'' (18 cm) color LCD touch screen
- Metal bracket included for wall mounting with verticality adjustment
- Mounting spacing adapted to Ø 60 mm box
- Surface mounting. Flush mounting with optional kit ref. 1723/60
- Menu access to settings and configuration
- Video memory of 32 clips of 10 seconds that can be saved on micro SD
- Audio post-it: recording and listening to an internal message intended for residents
- Ringer level adjustment + mute with light signaling
- Brightness, contrast, color adjustment
- 5 melodies to choose from + 1 user-customizable
- Commands: door opening, motorized gate opening and 8 car radios (outdoor lighting, steering wheels, etc.), 6 customizable scenarios
- Video surveillance to display images of 2 traffic signals and 4 cameras
- Led function: ringer disengaged, door open, messages
- Built-in magnetic ring. Compatible with hearing aids
- 1 output for additional ringer or wireless ringer
- 2 dry contact outputs for additional controls
- 1 output 12 Vdc - 250 mA to power a detector or camera
- 1 input for connecting a surveillance camera or 4-camera interface
- 1 input for connecting a presence detector
- 1 input floor bell button
- Dimensions (HxWxD): 142 x 202 x 22 mm
There are no reviews
Data sheet
- KIT:
- Video Doorphone Kit
- Model:
- Single-family house
- System:
- 2-Wire
- WIFI:
- Yes
