Urmet system base kit 2Voice column 1783/708
UTD 1783/708
8021156058259

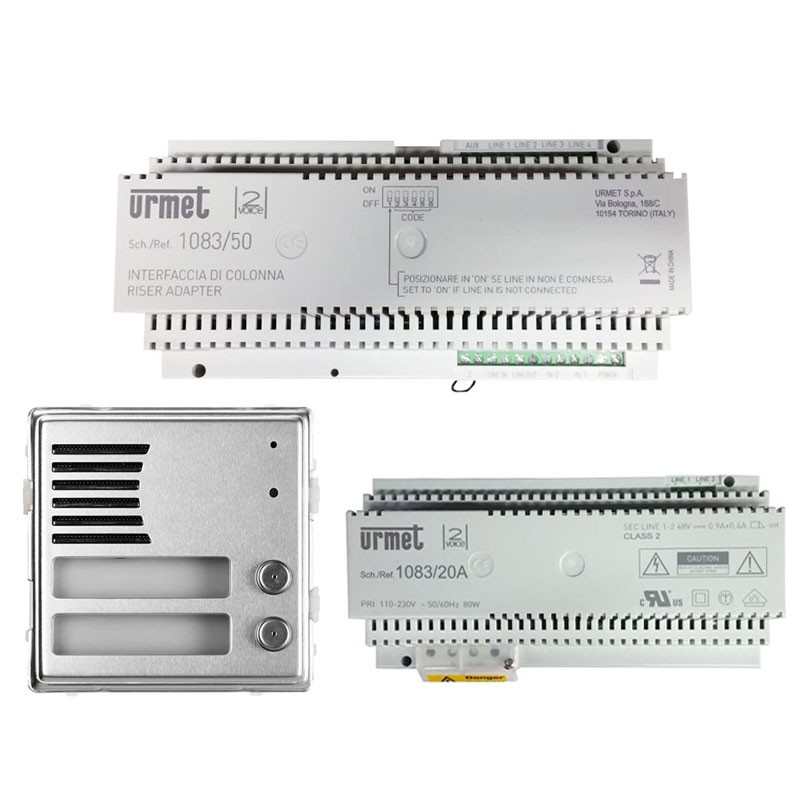

Urmet Base Kit for 2Voice audio secondary column with Sinthesi S2, consisting of:
- 1 piece column interface/distributor (code 1083/50)
- 1 piece 2Voice system power supply unit (code 1083/20A)
- 1 piece audio door station on one module with two buttons (code 1083/74)
Urmet system base kit 2Voice column 1783/708
€582.71
Tax included
€582.71
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
Kit component specifications:
1 piece column interface/distributor (code 1083/50): Device used to decouple risers in complex 2VOICE systems. Prepared for DIN rail mounting (10 modules). Dedicated to the 2Voice system and is used to split a riser into multiple risers or to connect multiple (max 32) independent risers in the system. Can handle one riser and a maximum of 2 call stations directly connected to itUsed to decouple risers in complex 2VOICE systems. Prepared for DIN rail mounting (10 modules).
INSTALLATION: The riser interface can be installed in an electrical panel on a DIN rail (occupies 10 18mm DIN modules) or on the wall using wall plugs not supplied. Terminal blocks and configuration dip-switches are accessible when the electrical panel is open.
Features:
- Supply voltage (LINE IN): 36 to 48 VDC
- Supply voltage (POWER): 36 - 48 Vdc
- Absorption at rest (LINE IN): 25 mA max
- Maximum current consumption (LINE IN): 70 mA max
- Quiescent absorption (POWER): 30 mA max
- Max. absorption (POWER): 100 mA max
- Maximum load switchable from AUX: 100 mA@60V
- Operating temperature: - 5 ÷ + 45 °C
- Regulatory compliance: EN 61000-6-3, EN 61000-6-1
1 piece 2Voice system power supply (code 1083/20A): Used for 2Voice system. DIN rail mounting (10 modules).
Features:
- Voltage: 110- 230 Vac
- Output voltage: 48V
- Frequency 50/60 Hz
- 10 Din modules
- Protection class 2
- For the 2VOICE system
1-piece audio door station on one module (code 1083/74): On a Sinthesi S2 module, features speaker, microphone and 2 call buttons. Output for door opening; second output with relay contact for opening a second driveway entrance. Input for local door opening button. Second input for open door detection contact. Dip switch for configuration of module address, door opening mode from 2VOICE extensions (free or after call). Possibility to program door opening time. Prepared for ILA hearing aid module and voice and visual signaling module.
