Urmet Column kit Two-family Audio 2Voice SINTHESI S2 1783/718
UTD 1783/718
8021156063697

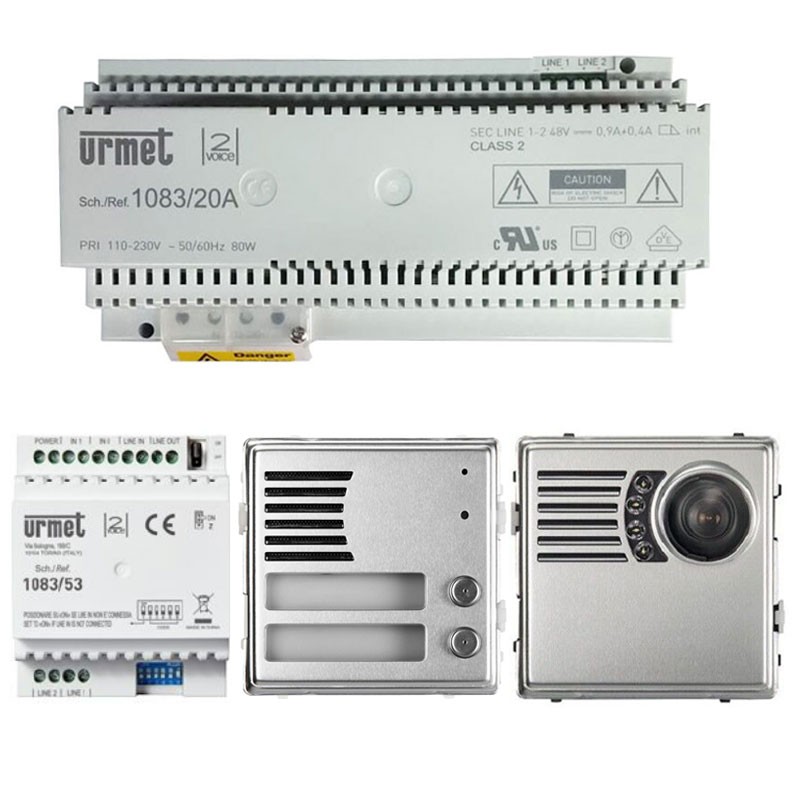

Urmet Sinthesi S2 video sub column kit consisting of:
- 1 piece Sinthesi S2 audio door station with 2 buttons (code 1083/74)
- 1 piece column distributor (device used to decouple riser columns in complex 2Voice systems) prepared for mounting on 4-module DIN rail (code 1083/53)
- 1 piece 2Voice power supply unit (code 1083/20A)
- 1 piece Sinthesi S2 video module (code 1748/83)
Urmet Column kit Two-family Audio 2Voice SINTHESI S2 1783/718
€597.70
Tax included
€597.70
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
: 1
Pay in installments with Klarna
Kit component specifications:
1 piece Sinthesi S2 audio door station with 2 buttons (code 1083/74): On a Sinthesi S2 module, it is equipped with speaker, microphone and 2 call buttons. Output for door opening; second output with relay contact for opening a second driveway entrance. Input for local door opening button. Second input for open door detection contact. Dip switch for configuration of module address, door opening mode from 2VOICE extensions (free or after call). Possibility of programming door opening time. Prepared for ILA hearing aid module and voice and visual signaling module.
1 piece column distributor (device used to decouple riser columns in complex 2Voice systems) prepared for mounting on 4-module DIN rail (code 1083/53): Allows a secondary riser or staircase to be controlled in a system with main inputs and secondary staircase or building pushbuttons. DIN rail mounting (4 modules). Two bus outputs to split the column signal over 2 risers. Can manage up to 2 pushbuttons dedicated to the relevant staircase or building.
1 piece 2Voice power supply (code 1083/20A): Used for the 2Voice system. DIN rail mounting (10 modules). Supply voltage 110/230Vac, frequency 50/60Hz.
1 piece Sinthesi S2 video module (code 1748/83): Equipped with color camera with LED lighting. Selection jumper for 50/60Hz operation. For use with 1083/74 for video installations.
