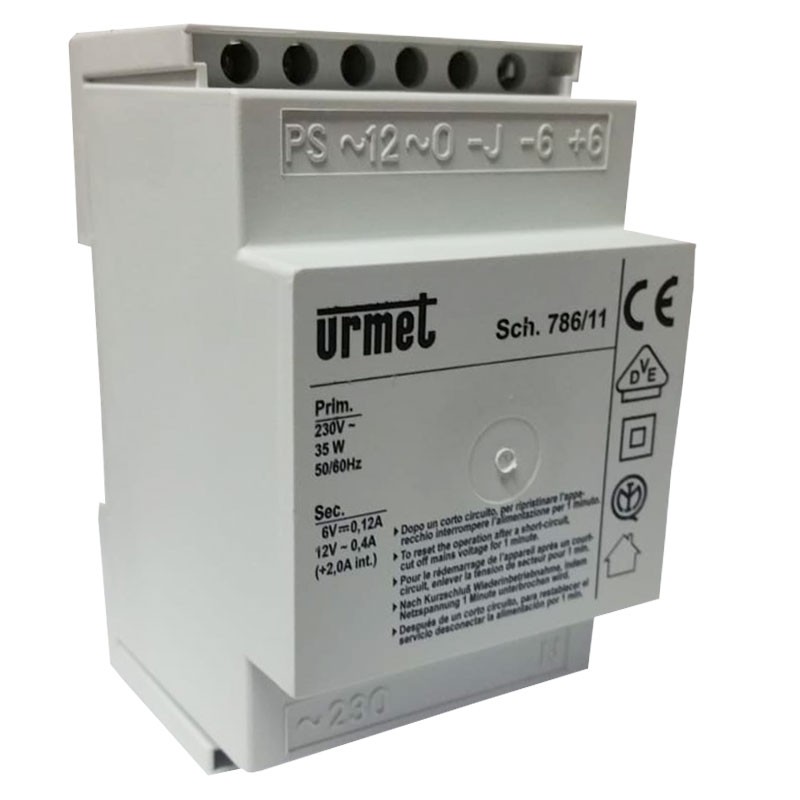

Urmet Basic intercom power supply with note generator 786/11
UTD 786/11
8021156027385
Basic intercom power supply with Urmet note generator, with the following features:
- Power supply: 220 Vac 50/60Hz
- Max. absorption: 150 mA
- Note generator frequency: F1 960 -1440 Hz, F2 600 - 900 Hz
- Note generator output: 8Vpp min
- Transformer power: 28 VA
- DIN modules: 3
- Dimensions: (H x W x D) 61 x 54 x 90 mm
Replaces 786/1, 786/14 and 786/38 power supplies.
Urmet Basic intercom power supply with note generator 786/11
€111.89
Tax included
€111.89
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 311
: 24
Pay in installments with Klarna
The device allows to realize 4+n audio systems both with traditional and electronic call. It is equipped with PTC network protection (self-restoring in case of short circuit) and with an enhanced call generator to call 4 electronic intercoms in parallel without adding any additional device. It is fixed directly to the Din rail or to the wall with the addition of a bracket kit 786/50.
Features:
- Urmet Series
- Approval: IMQ-CE-VDE, complying with DIN and CEI EN 60065 standards
- Power loss after one hour of operation: 4.2W
- Power supply for phonic circuit: 6Vcc @ 0,12A
- Power supply for intercom circuit: 3,5-6,5 Vdc @ 0,12A
- Power supply for electric lock circuit: 12 Vac @ 2 A
- Max. number of backlit name tags with LEDs: Sinthesi: 40; K-steel: 8
- N max of 12Vac 3W bulbs: 2
Data sheet
- Type: Accessories
- Components: Power supplies
