Urmet one family intercom kit with Mirò and Sinthesi 1150/301
UTD 1150/301
8021156054480

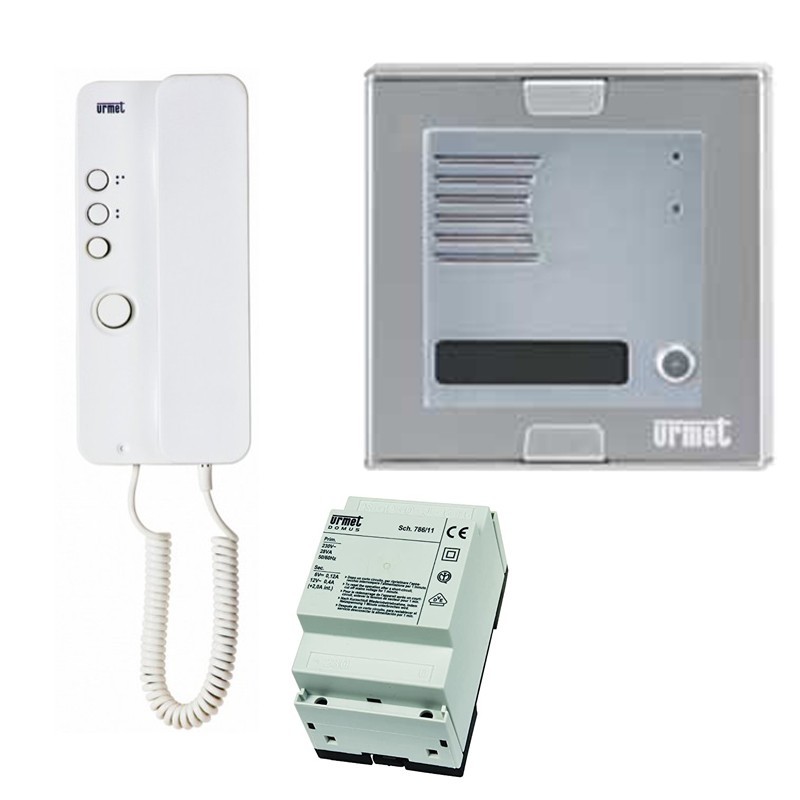

Urmet single family intercom kit composed of:
- 1 Sinthesi built-in push-button panel
- 1 Myro intercom
- 1 Power supply
Urmet one family intercom kit with Mirò and Sinthesi 1150/301
€170.17
Tax included
€170.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 85
: 23
4-wire system plus neutral.
The external control panel is completely made of aluminium with an illuminated name button.
Single-family intercom kit includes specifically:
1 MIRO' UTD 1150/1 intercom with additional push button
1 amplified door unit with feedback called UTD 1145/500
1 UTD 786/11 power supply unit with enhanced generator
1 Sinthesi S2 UTD 1148/21 module with LED name tag backlighting and P.E. ready.
1 frame with module holder frame UTD 1148/61
1 flush mounted box UTD 1145/51
The kit is expandable.
Features:
Size: (W x H x D): 90 x 220x 50 mm
Colour: white
System: 4+n audio with electronic call
Power supply: Din modules: 3
Dimensions:(H x W x D) 61 x 54 x 89 mm
Approval: IMQ-CE-VDE, in compliance with DIN and CEI EN 60065 standards
Power supply:220Vac 50/60Hz
Max absorption: 150 mA
Note generator frequency: F1 960 -1440 Hz, F2 600 - 900 Hz
Note generator output: 8Vpp min
Transformer power: 28 VA
Dissipated power after one hour of operation: 4.2W
Phonic circuit power supply: 6Vdc @ 0.12A
Power supply for intercommunicating phonic circuit: 3.5-6.5 Vdc @ 0.12A
Power supply for electric lock circuit: 12 Vac @ 2 A
Max. no. of backlit cards with leds: Sinthesi S2: 40; K-steel: 8 - Max. no. of 12Vac 3W bulbs: 2
Sinthesi module:
- Name tag size (L x H) 67 x 12,5 mm
Frontal treatment:anodized aluminium
Module size (H x W) 90 x 90 mm
IP 42 Protection
