Urmet two-family intercom kit with Mirò and Sinthesi 1150/302
UTD 1150/302
8021156054497

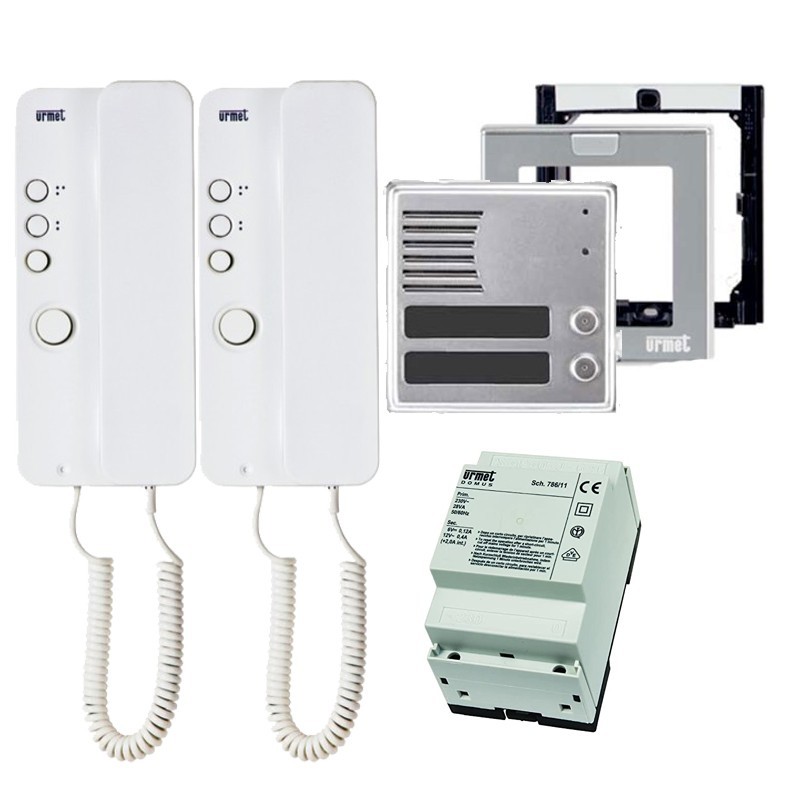

Two-family Urmet intercom kit consisting of:
- 1 Built-in Sinthesi push-button panel 2 push-buttons
- 2 Myro intercoms
- 1 Power supply, 4-wire system plus neutral.
Urmet two-family intercom kit with Mirò and Sinthesi 1150/302
€187.11
Tax included
€187.11
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 143
: 28
Pay in installments with Klarna
The external push-button panel is completely made of aluminium with illuminated name buttons.
Single family intercom kit includes specifically:
- 2 MIRO' UTD 1150/1 intercoms with additional button
- 1 amplified door unit with feedback called UTD 1145/500
- 1 UTD 786/11 power supply unit with enhanced generator
- 1 Sinthesi S2 UTD 1148/22 module with LED name tag backlighting and P.E. ready.
- 1 frame with module holder frame UTD 1148/61
- 1 flush mounted box UTD 1145/51.
The kit is expandable.
Technical characteristics:
-
Size: (W x H x D): 90 x 220x 50 mm
-
Colour: white
-
System: 4+n audio with electronic call
-
Power supply: - Din modules: 3 Dimensions:(H x W x D) 61 x 54 x 89 mm
-
Approval: IMQ-CE-VDE, in compliance with DIN and CEI EN 60065 standards
-
Power supply:220Vac 50/60Hz
-
Max absorption: 150 mA
-
Note generator frequency: F1 960 -1440 Hz, F2 600 - 900 Hz
-
Note generator output: 8Vpp min
-
Transformer power: 28 VA
-
Power dissipated after one hour of operation: 4.2W
- Phonic circuit power supply: 6Vdc @ 0.12A
- Power supply for intercommunicating phonic circuit: 3.5-6.5 Vdc @ 0.12A
- Power supply for electric lock circuit: 12 Vac @ 2 A
- Max. no. of backlit tags with leds: Sinthesi S2: 40; K-steel: 8
Sinthesi module:
- Name tag size (L x H) 67 x 12,5 mm
- Frontal treatment: anodized aluminium
- Module size (H x W) 90 x 90 mm
- IP 42 degree of protection
Data sheet
- KIT: Intercom Kits
- Model: Two-family house
- System: 5-Wire
