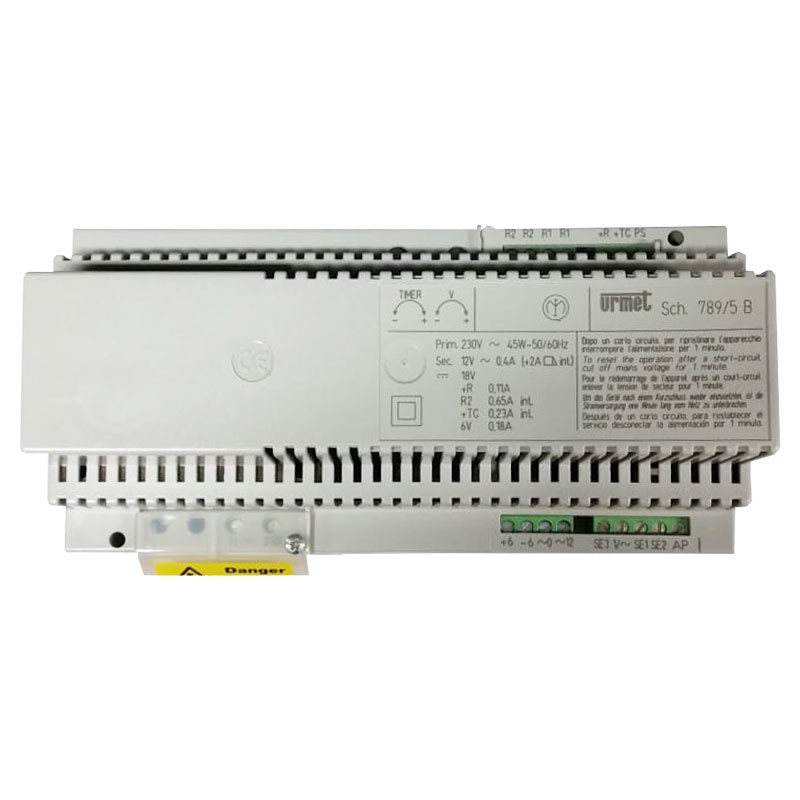

Urmet video door phone power supply base 789/5B
UTD 789/5B
8021156018543
Urmet basic video door phone power supply unit, with the following features:
- Power supply: 230 Vac - 50 Hz
- Transformer power: 38 VA
- Absorption: 200 mA
- Dimensions (W x H x D): 180 x 75 x 97 mm
- DIN modules: 10
Urmet video door phone power supply base 789/5B
€240.06
Tax included
€240.06
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
: 1
Pay in installments with Klarna
The device is used to power video intercom systems with electronic call. It is equipped with self-resetting PTC protection, adjustable timer and enhanced note generator that allows to call up to 4 devices in parallel without added devices.
In addition, it can turn on up to 2 Atlantic monitors simultaneously.
Features:
- Urmet Series
- Call generator frequency:F1 1063 - 1438 Hz, F2 638 - 862 Hz
- Phonecircuit power supply: 0.2A @6Vcc
- Electric lock circuit power supply: 2A @12Vac
- Timed output: 18Vdc @ 0.85A; 16Vdc @ 0.23A
- Timer: 45 - 180
- Relay contact capacity for lock: 5A @ 12Vac
- Power dissipated after one hour of operation: 5,7 W
- N max of backlit tags with LEDs: Sinthesi: 40; K-steel: 8
- N max of 12Vac 3W bulbs: 2
Data sheet
- Type: Accessories
- Components: Power supplies
