Basic kit Urmet Alpha Callme Multiuser video entry system 1783/824

Urmet
UTD 1783/824 8021156073283

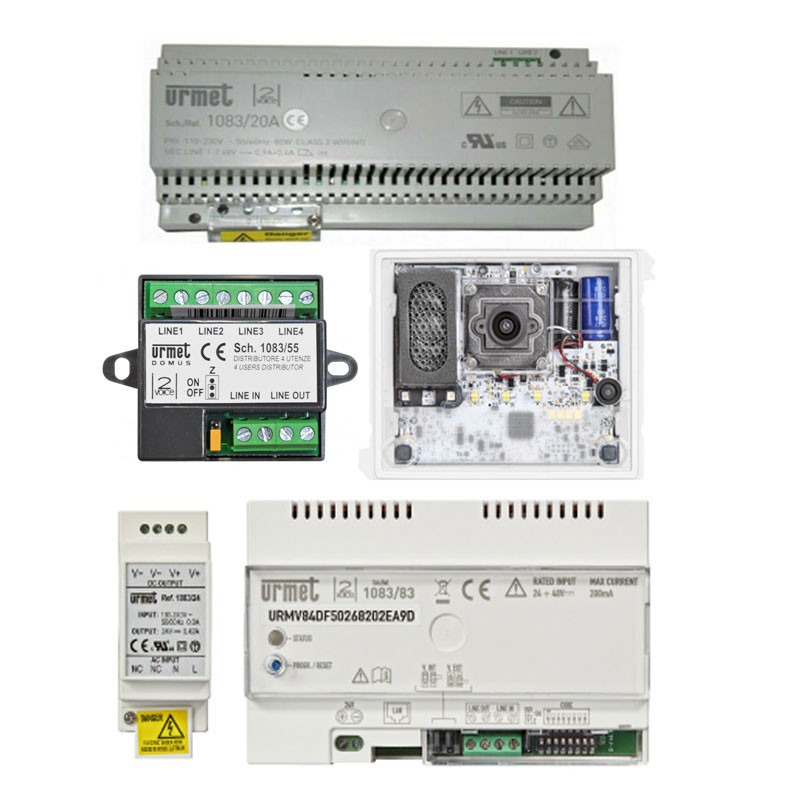

Basic kit for Urmet Alpha Callme Multiuser video door entry system with 2Voice system, consisting of:

  • 1 video door station, Alpha code 1083/48
  • 1 Power supply for 2voice system code 1083/20A
  • 1 Video distributor 4 user 2voice 1083/55
  • 1 CallMe multi-user call forwarding device code 1083/83.

Request info about this product

Basic kit Urmet Alpha Callme Multiuser video entry system 1783/824

€438.64 Tax included
€438.64

Basic kit Urmet Alpha Callme Multiuser video entry system 1783/824

€438.64
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
qty

Basic kit Urmet Alpha Callme Multiuser video entry system 1783/824

€438.64

Buy it within and receive it from Monday, 22 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days

Kit components specification:

Alpha, audio-video door station with DDA 2voice Code 1083/48:

Audio/video unit on Alpha push-button panel for 2Voice system. Equipped with wide-angle camera, LED lighting with brightness sensor, loudspeaker and microphone. Signaling of the system status by 3 leds. Local programming or via smartphone/tablet/PC. Management of 2 electric locks: pedestrian and driveway.

  • Ready for 2 call buttons
  • To be completed with front panel
  • Input for entrance hall button for door opening
  • Size: 1 Alpha module.

System power supply code 1083/20A:

Used for 2Voice system. DIN rail mounting (10 modules) Voltage 110/230Vac 50-60Hz.

4-user distributor code 1083/55:

Connection for input bus, output bus and 4 apartment shunts. Equipped with protection against short-circuit on the outputs.

  • Dimensions 45 x 45 x 16 mm (WxHxD)

Callme multi-user, call forwarding device on smartphones for 2Voice systems Code 1083/83:

Allows you to forward video door phone calls remotely, answer and open the two doors on 2VOICE panels from your mobile phone wherever you are.

With the addition of a single device for the entire condominium, all users will have the call forwarding function on smartphone available.

Possibility to view from smartphone the push button panel cameras and other control cameras connected on the 2VOICE system, without having received the call.

Compatible with all monitors and intercoms of 2VOICE line.

The Urmet CallMe App is available for Android and iOS operating systems.

  • DIN rail device
  • Size 8 modules
  • Power supply 2 DIN modules supplied.

Data sheet

KIT:
Basic Kit Video Doorphones
System:
2-Wire
