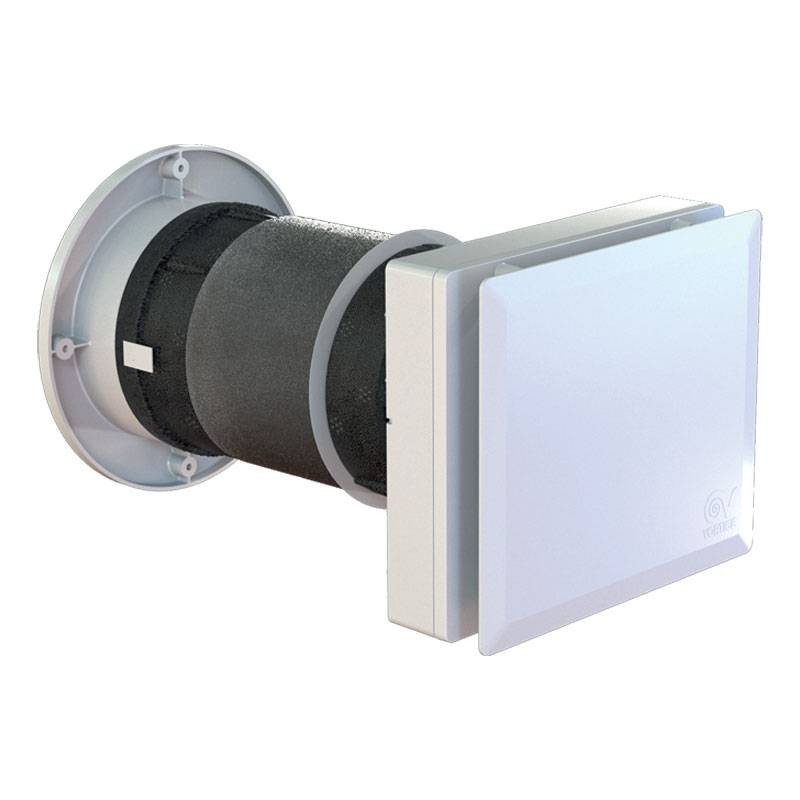

Vortice Heat Recovery Unit HRW 40 Mono Evo HCS 0000012437
VOR 0000012437
8010300124377
Ventilation unit with decentralized heat recovery Vortice model HRW 40 Mono Evo HCS, for installation in residential and commercial rooms of new buildings or subject to renovation for energy efficiency.
Ideal not only for ensuring proper air exchange, but also to prevent excess humidity in the room and the occurrence of mold on the walls.
Vortice Heat Recovery Unit HRW 40 Mono Evo HCS 0000012437
€329.40
Tax included
€329.40
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Structural features:
- Shockproof and anti-UV plastic resin structure
- Nominal diameter: 160 mm
- Ceramic type heat exchanger with hexagonal cells. High heat exchange efficiency (up to 90% at minimum air flow rate)
- High-efficiency EC fan motor; five operating speeds to maximize performance when needed or minimize noise and consumption
- Product-integrated relative humidity probe
- One-way remote control that allows you to set parameters or view useful product information
Functions:
- Power on and off
- Selection of 5 operating modes
- Selection of fan speeds
- Selection of relative humidity threshold value that activates Boost speed (three pre-defined levels that can be set to 50%, 65% and 80%)
- Activation of Night mode
- Signaling the condition of saturated filters
Five different modes of operation:
- Continuous ventilation with heat recovery: the product cyclically extracts and injects air to and from the room by recovering the energy stored in the heat exchanger
- Air extraction-only ventilation: stale air is extracted from the room
- Air supply-only ventilation: the product introduces fresh air into the room
- Automatic: the recuperator automatically manages air flows based on relative humidity sensor readings
- Night: as light falls in the room, the product automatically forces the fan to run at minimum speed, regardless of the relative humidity readings
Advantages:
- Two air filters, an IsoCoarse 65% and a coarser pre-filter for dust, both easily removed for washing them
- Mechanical quick-closing air supply system integrated into the product chassis
- External rubber grille, which can be installed from the outside using dowels or inserted from the inside, through the hole in the wall, without resorting to external scaffolding
- Anti-insect mesh, insertable into the duct from inside the room
Features:
- ISOCoarse 65% filter class
- Max absorbed current (A) 0.05
- Rated Duct Diameter (mm) 160
- Frequency (Hz) 50-60
- Insulation II° class
- Weight (Kg) 3.30
- Max. power consumption (W) 5
- Max. ambient temperature for continuous operation (°C) 30
- Voltage (V) 220-240
- Max recovery efficiency (%) 90
- Max flow rate at max vel. (l/s) 11.1
- Max flow rate at max vel. (m³/h) 40
- Max flow rate at min vel. (l/s) 4.2
- Max flow rate at min vel. (m³/h) 15
- Sound power level Lw dB (A) - max vel 49.3
- Sound power Lw dB (A) - min vel 36.5
- Sound power Lw dB(A) - med vel 42.9
- Max pressure at max vel (mmH2O) 4.8
- Max pressure at max vel (Pa) 47
- Max pressure at min vel. (mmH2O) 1.7
- Max pressure at min vel. (Pa) 17
- Sound pressure Lp dB (A) 3m - max vel 31.8
- Sound pressure Lp dB (A) 3m - med vel 25.4
- Sound pressure Lp dB (A) 3m - min vel 19
Data sheet
- Type: Heat recovery units
