Vortice Heat recovery unit HRW 20 MONO 0000011634
VOR 0000011634
8010300116341
Heat recovery unit Vortice HRW 20 MONO:
- Internal panel in self-extinguishing plastic polymer (ABS) V0
- Internally coated with thermo-insulating material
- EC Motor Fan
- Low voltage power supply with shaft mounted on ball bearings
- High efficiency heat exchanger of accumulation type made of ceramic material.
On/off and operating mode selection controls integrated in the body of the product.
5 speeds with different flow rates: 10 m3/h; 16 m3/h; 22 m3/h; 30 m3/h and 40 m3/h.
Vortice Heat recovery unit HRW 20 MONO 0000011634
€346.03
Tax included
€346.03
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Features:
- Casing in expanded polypropylene material (PPE).
- Internal panel in self-extinguishing plastic polymer (ABS) V0, internally coated with heat insulating material
- EC motor-fan powered at low voltage with shaft mounted on ball bearings
- 5 speeds with different flow rate levels: 10 m3/h; 16 m3/h; 22 m3/h; 30 m3/h and 40 m3/h

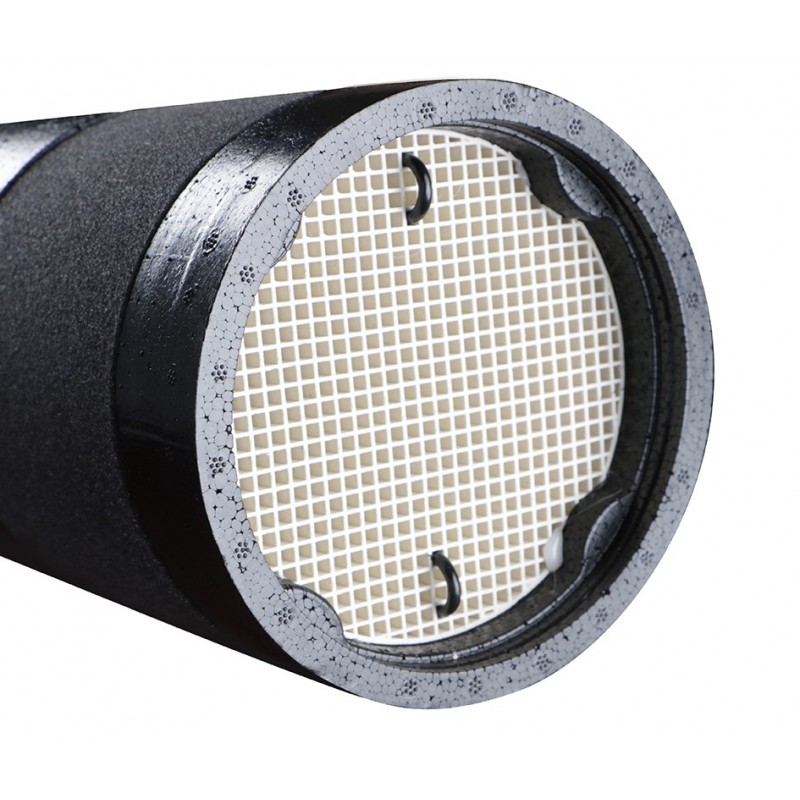

- High-efficiency heat exchanger made of ceramic material

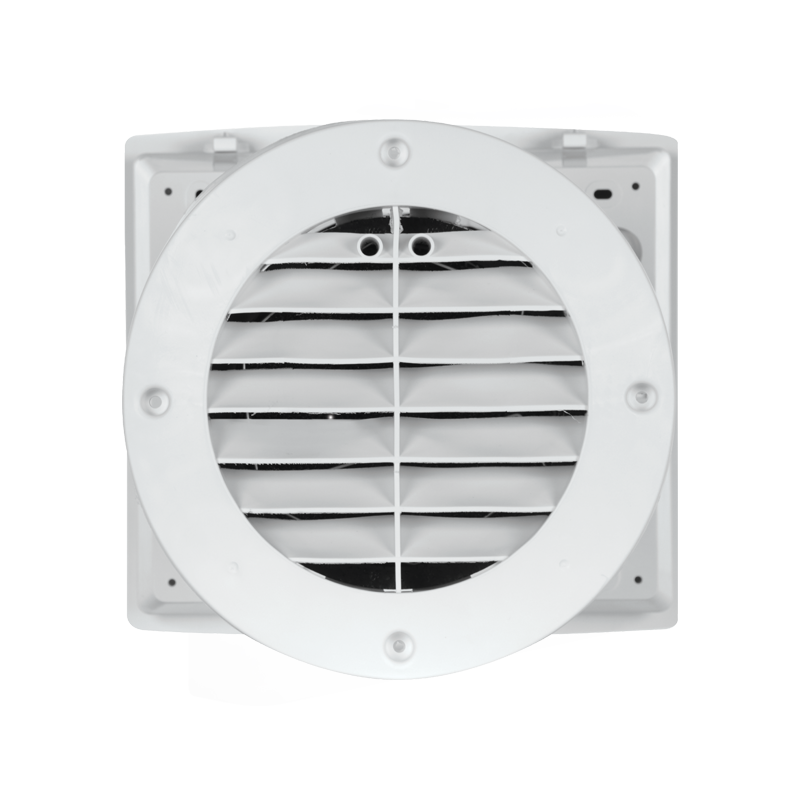

- External rubber moulded grille, mountable from the inside through the hole in the wall
- Separate anti-insects net, which can be inserted in the duct together with the external grid at the moment of the installation
- Internal air suction realized on the perimeter of the front panel
- Circular section air inlet with a nominal diameter of 160 mm
- Target wall depth: 300 mm. By means of the special optional kit it is possible to install the unit on walls up to 700 mm deep.
- Washable G3 filter, easily accessible for maintenance

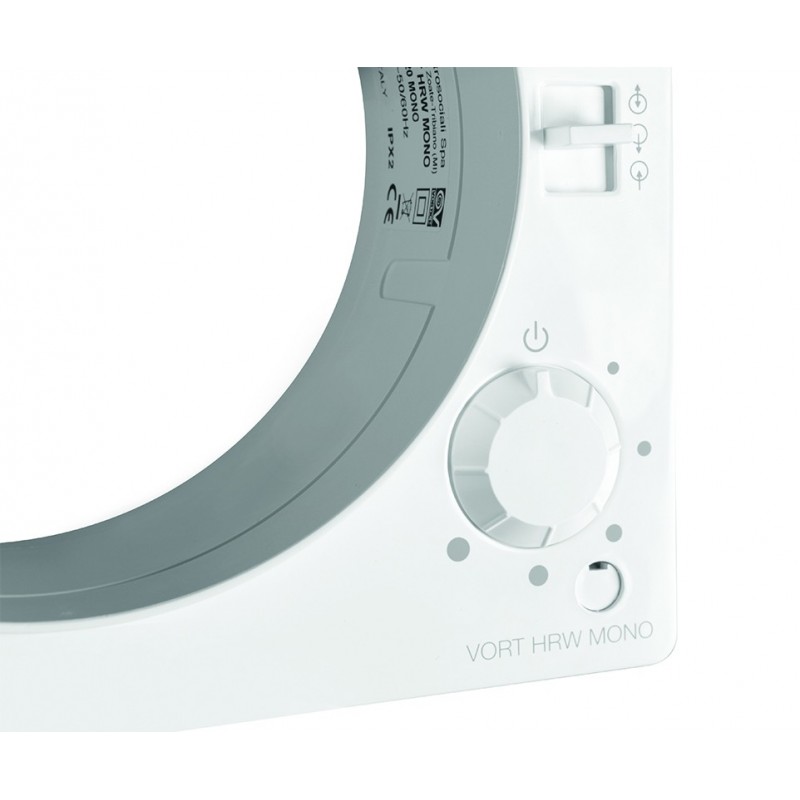

- On/off and operating mode selection controls integrated in the body of the product
- Ready for wall-mounted wiring
- Electronic board with on-board power supply integrated in the product
- Diagnostic and filter status LEDs
- 3 operating modes: Ventilation with heat recovery - Ventilation with air extraction only - Ventilation with air intake only
- Possibility of automatic operation through the installation of optional temperature and relative humidity sensors.
Technical specifications:
- Filter class G3
- Max absorbed current (A) 0,05
- Max current consumption at max speed (A) 0,05
- Max current consumption at min speed (A) 0,015
- Rated Duct Diameter (mm) 160
- Frequency (Hz) 50
- Protection degree IP X4
- Insulation class II
- Weight (Kg) 2,55
- Max power consumption (W) 5.0
- Max power consumption at max speed (W) 5.0
- Max power consumption at min speed (W) 1.0
- Voltage (V) 230
- Max recovery efficiency (%) 90
- Max. flow rate (l/s) 11,3
- Max. flow rate (m³/h) 41
- Max. flow rate at max speed (l/s) 11,3
- Max. flow rate at max speed (m³/h) 41
- Max. flow rate at min. speed (l/s) 2.77
- Max flow rate at min speed (m³/h) 10.0
- Max pressure (mmH2O) 4.1
- Max pressure (Pa) 40.6
- Max pressure at max speed (mmH2O) 4,1
- Max pressure at max speed (Pa) 40,6
- Max pressure at min speed (mmH2O) 0,635
- Max pressure at min speed (Pa) 6,22
- Sound pressure Lp in free field [dB(A)] 3 m max speed 23,6
- Sound pressure Lp in free field [dB(A)] 3 m min speed <16
There are no reviews
Data sheet
- Type: Heat recovery units
