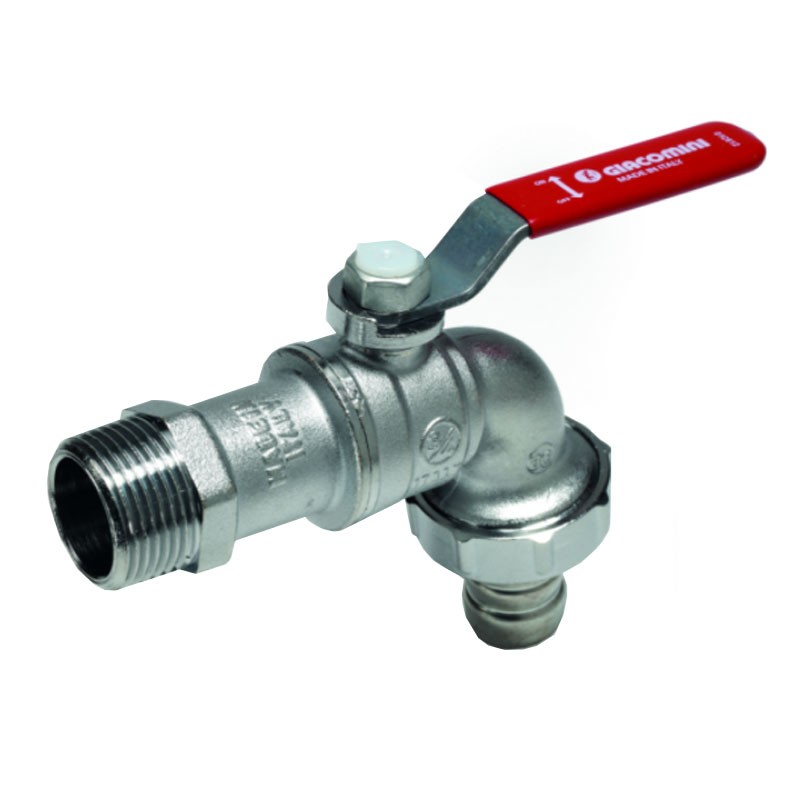

Giacomini hose tap lever handle R621X003
GIA R621X003
8009902028374
Giacomini dispensing tap series R621, in chromed brass, with male connection and hose nozzle. Connection size 1/2" - mouth 3/4".
Giacomini hose tap lever handle R621X003
€5.93
Tax included
€5.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 512
Pay in installments with Klarna
Features:
- Giacomini series
- Standard passage
- Taps in chrome plated brass UNI EN 12165 CW617N
- Control rod with double O-Ring seal
- Finish: Chromed brass
- Handle type: short lever
- Handle colour: red
- Lever handle in steel with anti-corrosion treatment and red PVC coating (R621)
- Minimum operating temperature: 5 °C
- Maximum working temperature: 90 °C
- Maximum working pressure at 20 °C with water: 1,0 MPa (10 bar)

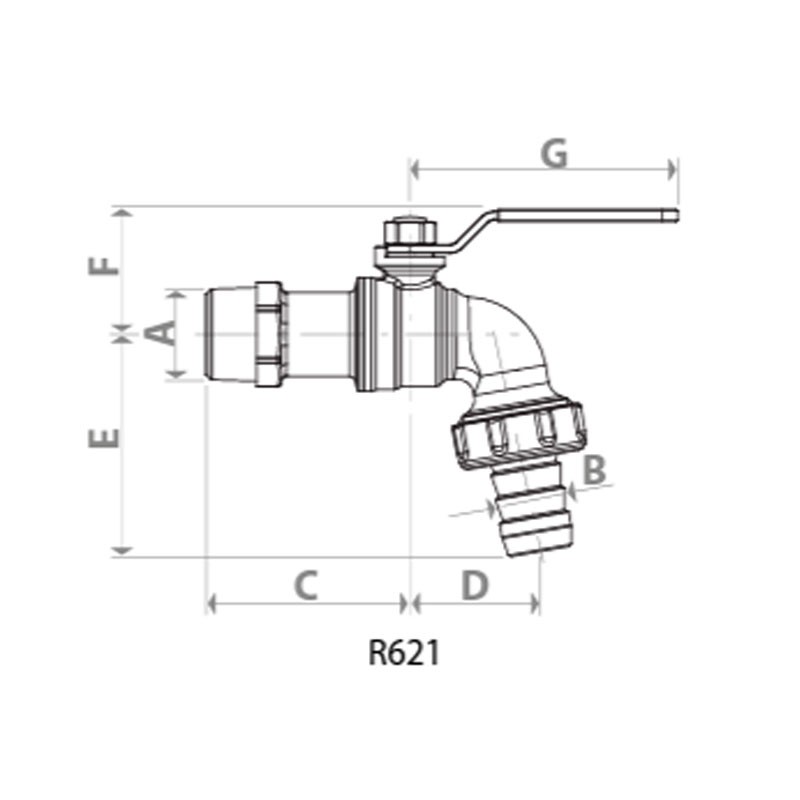

Dimensions:
- DN 10
- A 1/2 "M mm
- B Ø 15 mm
- C 52 mm
- D 30 mm
- E 52 mm
- F 29 mm
- G 76 mm
- Kv 6,7
ottimoooooooooooooooooooooooooooooooooooooooooooooo
buono come le aspettative prezzo di mercato
Prodotto di ottima qualità, consigliato!
Data sheet
- Type: Outdoor faucets
- Connection: M
- System: Water
- Hoses: 1/2
3/4
