Giacomini ball valve M-M 1/2 butterfly handle yellow R782GX003
GIA R782GX003
8009902320669
Giacomini R782G angle ball valve, with male - male threaded connections. Integral passage. Connections 1/2 "M (ISO 228) x 1/2 "M (ISO 228).
Suitable for hazardous gas installations of the first, second and third family (EN 437).
Giacomini ball valve M-M 1/2 butterfly handle yellow R782GX003
€6.73
Tax included
€6.73
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Features:
- Giacomini Series
- Finish: nickel-plated brass
- Handle type: butterfly
- Handle colour: yellow
- Valve in nickel-plated brass UNI EN 12165 CW617N
- Control rod with double sealing system
- Nut with anti-corrosion coating, guarantee seal and hologram
- Yellow painted aluminium butterfly handle
- Certified EN 331:2015Ranges of use
- Temperature range: -20÷60 °C
- Maximum operating pressure (MOP) with gas: 0.5 MPa (5 bar)
- Resistance to high temperatures: class B 0,1; 650 °C for 30'.

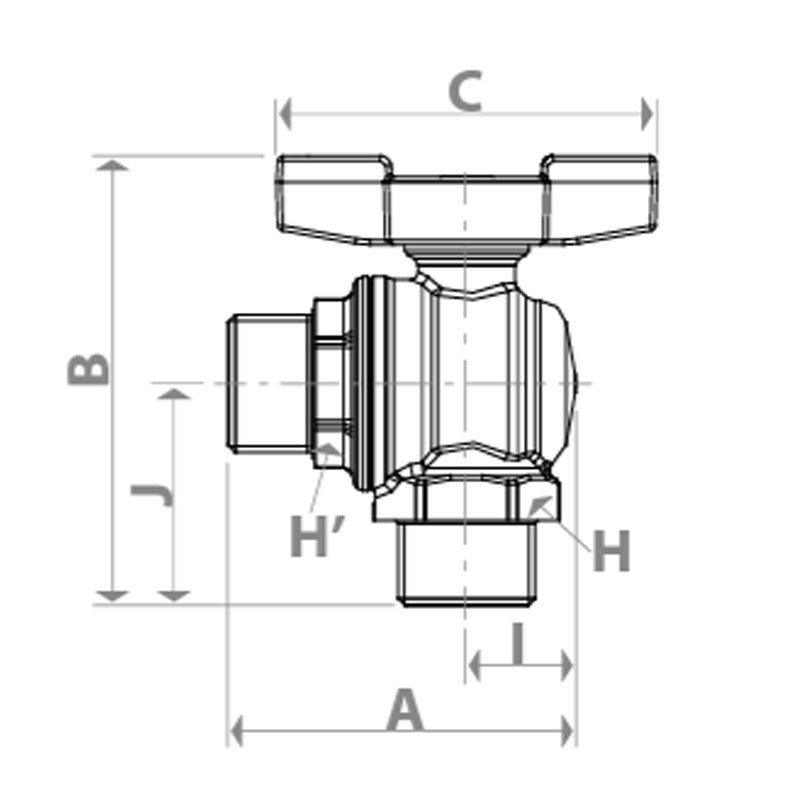

Dimensions:
- DN 15
- A 59 mm
- I 18 mm
- B 79 mm
- J 41 mm
- C 63 mm
- H 26 mm
- H' 22 mm
There are no reviews
Data sheet
- Type: Ball valves
- Connection: M
- System: Gas
- Hoses: 1/2
