Giacomini valve F-F 3/4 yellow butterfly handle R251X024
GIA R251X024
8009902060176
Giacomini ball valve, with female-female threaded connections. Connections G 3/4 "F x G 3/4 "F.
Ideal for dangerous gases and liquid hydrocarbons.
Giacomini valve F-F 3/4 yellow butterfly handle R251X024
€6.16
Tax included
€6.16
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
Features:
- Giacomini series
- Valve in chrome plated brass UNI EN 12165 CW617N
- Control rod with double O-Ring seal
- Nut with anti-corrosion coating, guarantee seal and hologram
- Yellow painted aluminium butterfly handle
- Temperature range: -20÷60 °C
- Maximum operating pressure at 20 °C with liquid hydrocarbons*: 1,2 MPa (12 bar)
- Maximum operating pressure (MOP) with gas: 0,5 MPa (5 bar)
- Standard passage
- Material/finish: chrome plated brass
- Handle type: butterfly
- Handle colour: yellow

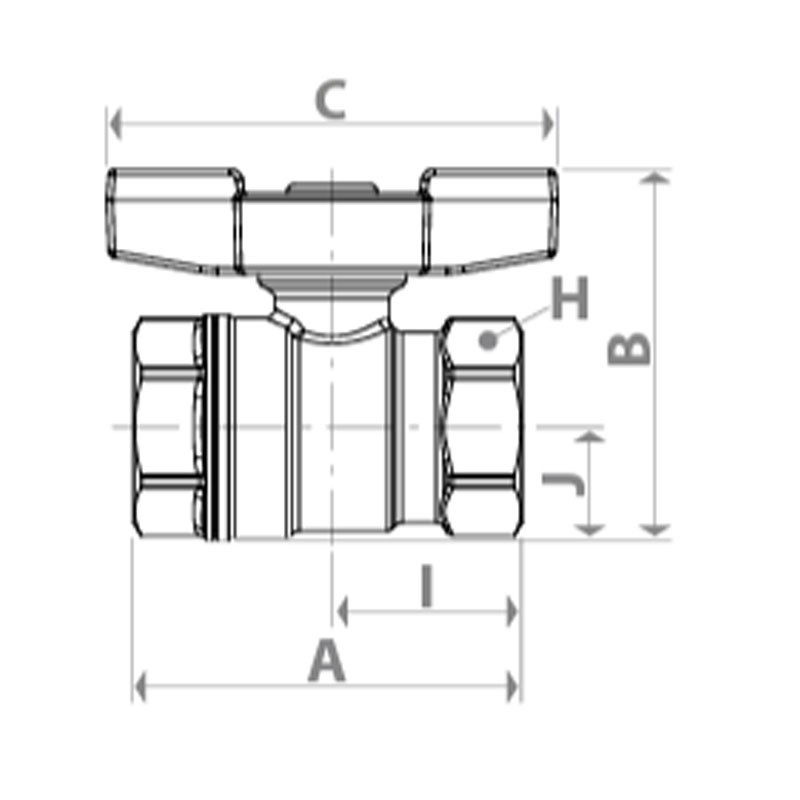

Dimensions:
- DN18
- A63
- I31
- B60
- J18
- C73
- H ch.32mm
There are no reviews
Data sheet
- Type:
- Ball valves
- Connection:
- F/F
- System:
- Gas
- Hoses:
- 3/4
