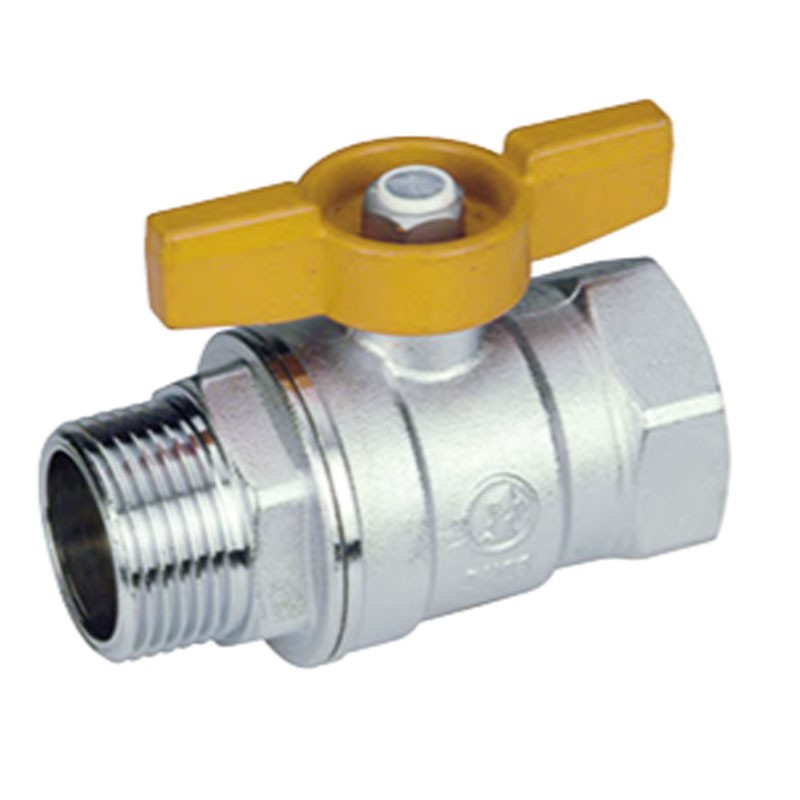

Giacomini valve M-F 1/2 yellow butterfly handle R254X024
GIA R254X024
8009902060657
Giacomini ball valve, with male-male threaded connections. Connections G 3/4 "F x R 3/4".
Suitable for dangerous gases and liquid hydrocarbons.
Giacomini valve M-F 1/2 yellow butterfly handle R254X024
€5.67
Tax included
€5.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Features:
- Giacomini series
- Finishing: chromed brass
- Handle type: butterfly
- Handle colour: yellow
- Standard passage
- Valve in chrome-plated brass UNI EN 12165 CW617N
- Control rod with double O-Ring seal
- Nut with anti-corrosion coating, guarantee seal and hologram
- Yellow painted aluminium butterfly handle
- Temperature range: -20÷60 °C
- Maximum operating pressure at 20 °C with liquid hydrocarbons*: 1,2 MPa (12 bar)
- Maximum operating pressure (MOP) with gas: 0.5 MPa (5 bar)

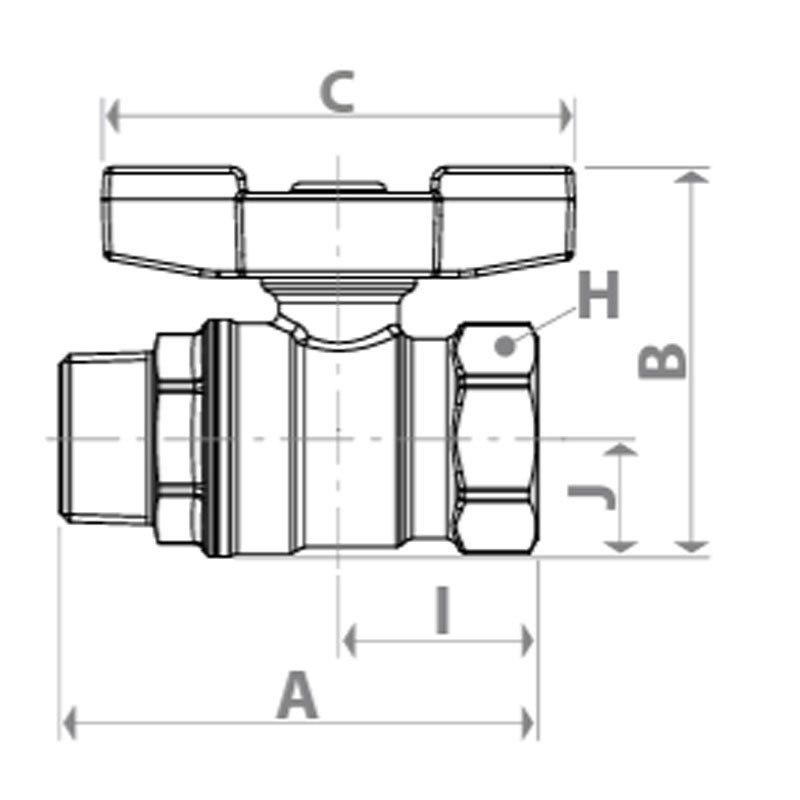

Dimensions:
- DN18
- A76
- I31
- B60
- J18
- C73
- H ch.32mm
There are no reviews
Data sheet
- Type: Ball valves
- Connection: M/F
- System: Gas
- Hoses: 3/4
