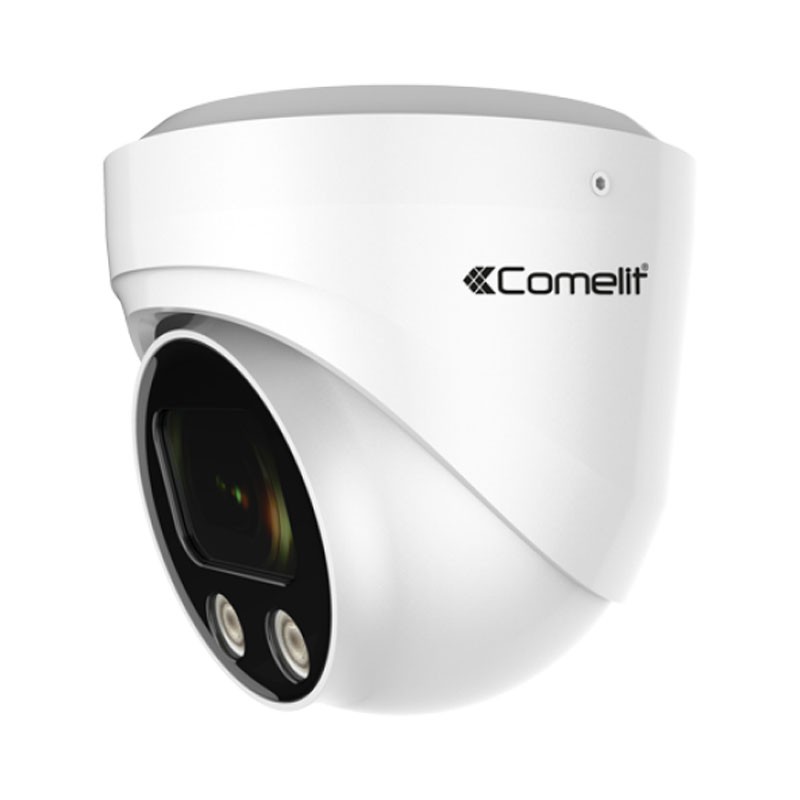

Comelit AHD 5MP MiniDome Camera Lens 2.7-13mm IR 30M AHDCAMS05ZB
COE AHDCAMS05ZB
8023903390445
Comelit AHD/TVI/CVI/CVBS (960H) minidome camera, 5Mp resolution, 2.7- 13.5mm motorized optics, IR LEDs with 30mt range, WDR 120dB, 12Vdc power supply, IP67 waterproof die-cast aluminum housing.
Comelit AHD 5MP MiniDome Camera Lens 2.7-13mm IR 30M AHDCAMS05ZB
€94.05
Tax included
€94.05
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 41
: 9
Pay in installments with Klarna
Frequently bought together
Specifications:
- 1/2.8'' CMOS camera sensor Sony Starvis Technology back-illuminated pixels
- Lens Type Motorized
- Varifocal lens size (mm) 2.7÷13.5
- Horizontal field of view (°) 108.78÷32.27 (± 5%)
- Vertical field of view (°) 57.22÷18.15 (± 5%)
- Diagonal field of view (°) 130.54÷37.02 (± 5%)
- Electronic shutter (s) 1/25÷1/25000
- Slow shutter
- Camera optical zoom 5x
- Sensitivity (lux) 0.01 (color), 0 (black and white, IR led ON)
- Signal-to-noise ratio (dB) >50 (AGC OFF)
- IR Filter Mechanical
- Video Output AHD/TVI/CVI/CVBS
- Video resolution (H x V - pixels) 1920x1080, 2592x1944 (5MP), 4MP
- Frame rate AHD/TVI: 5MP@20fps, 4/2MP@30fps. CVI: 4/2MP@30fps
General features and data:
- Backlight Compensation (BLC) BLC, HLC
- Digital effects Defog, Mirror (Horizontal, Vertical, 180° Rotation), OSD
- Wide Dynamic Range (WDR) WDR (120dB)
- 3DNR DNR Control
- White balance adjustment AWB, Manual
- IR led illumination distance 2 leds 42μ / 30m
- Maximum distance with RG59 / UTP coaxial cable 300 / 100
- IP rating IP67
- 3-axis camera movement No
- CVBS analog video output (BNC - 1 Vpp/75 ohm)
- Supply voltage 12VDC
- Max. power consumption (W) 9
- Diameter (mm) 115
- Height (mm) 113
- Product weight (g) 800
- Type coating materials Die-cast aluminum
- Housing type Minidome
- Product color White
- Operating temperature (°C) -10 ÷ 50
- Operating humidity (RH max) (%) 25 ÷ 95
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- System: AHD
- Optical: 2.7-13mm
- Resolution: 5MP
