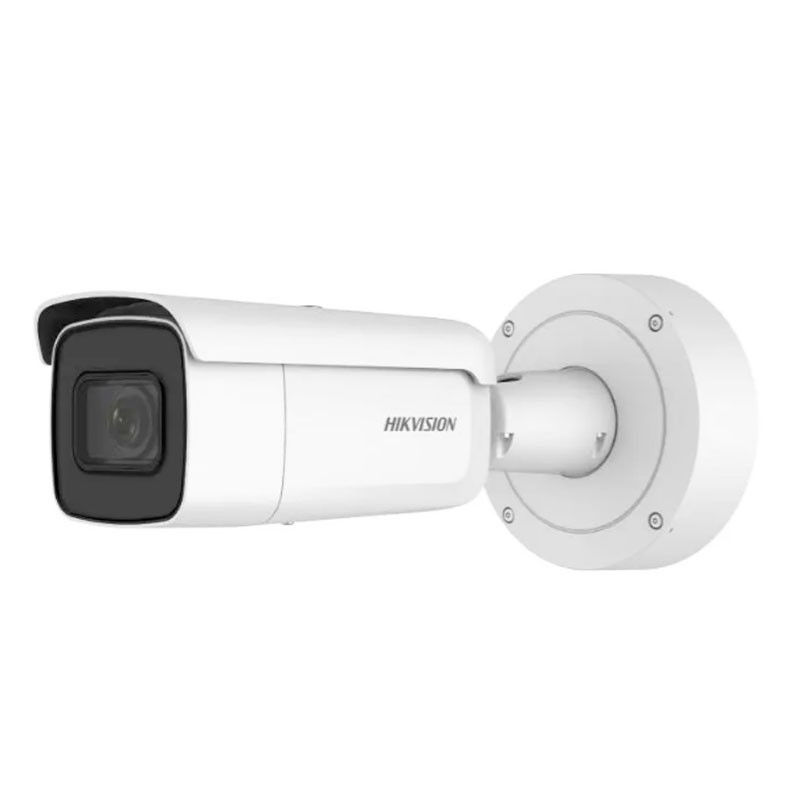

Hikvision IP Bullet Camera 8MP 2.8/12MM H265 SMART DS-2CD1683G0E-IZ
HIK 311314934
Hikvision varifocal motorized WDR 4K outdoor bullet network camera model DS-2CD1683G0E-IZ, with the following features:
- Image Sensor: 1/2.5" progressive scan CMOS.
- Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: YES
- Wide Dynamic Range: 120 dB
- Day Night: IR Cut Filter
- Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 90°, Rotation: 0° to 355°
- Focus: Auto
- Lens Type: 2.8 to 12mm - Motorized
- Degree Of Protection: IP66
- Impact Protection Degree: IK10
- Field of View: Horizontal field of view: 105° to 34.5°, Vertical field of view: 55° to 19°, Diagonal field of view: 125° to 40
Hikvision IP Bullet Camera 8MP 2.8/12MM H265 SMART DS-2CD1683G0E-IZ
€190.90
Tax included
€190.90
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 32
Pay in installments with Klarna
Frequently bought together
Advantages:
- High-quality images with a resolution of 8 MP
- Efficient H.265+ compression technology
- Sharp images against strong backlighting thanks to 120 dB True WDR technology
- Water- and dust-resistant (IP66) and vandal-resistant (IK10)
- Motorized varifocal lens for easy installation and monitoring
- Rugged frame design with all-metal materials
Other technical features:
- Aperture: F1.6
- Lens Mount: F14
- Aperture Type: Fixed
- IR Range: Up to 50 m
- Wavelength: 850 nm
- Maximum Resolution 3840 × 2160
- Main Stream: 50 Hz: 12.5 fps (3840 × 2160), 20 fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720), 60 Hz: 15 fps (3840 × 2160), 20 fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Flow: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288), 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression: Main stream: H.265/H.264, Secondary stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
- Video Bitrate: 32 Kbps to 16 Mbps
- H.264 Type: Main Profile/High Profile
- H.265 Type: Main Profile
- H.264+: Main Stream Supports
- H.265+: Main Stream Supports
- Scalable Video Coding (SVC): Support for H.264 and H.265 encoding
- Ambient Noise Filtering: YES
- Audio Sampling Frequency: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Bitrate Audio: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Simultaneous Live Display: Up to 6 channels
- API: ONVIF (S PROFILE, G PROFILE), ISAPI
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- User/Ospite: Up to 32 users, 3 levels: Administrator, Operator and User
- Network Storage: Supports Micro SD/SDHC/SDXC (128G) cards, local and NAS storage (NFS,SMB/CIFS), ANR
- Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Network Browsing Program: Live plug-in display required: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11, Live display without plug-in: Chrome 45.0+, Firefox 52.0+
- Alarm Triggering: Motion detection, video tampering, network disconnected, IP address conflict, illegal access, HDD full, HDD error
- Day/Night Switching: Day/Night/Auto/Program/Activated by alarm input
- Lens Crop: NO
- DNR: 3D DNR
- Image Enhancement: BLC/3D DNR/HLC
- Image Settings: Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable via client software or web browser
- With facial recognition
- Audio: 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono audio
- Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video Output: Composite output 1Vp-p (75 Ω) (adjustment only)
- On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Recovery: YES
- Communication Interface: 1 self-adaptive RJ45 10M/100M Ethernet port
- Firmware Upgrade: 5.6.3
- General Function: One-button reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filtering
- Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (no condensation)
- Power Supply: 12 VDC ± 25%, coaxial power plug Φ 5.5 mm, PoE (802.3at, class 4)
- Power Consumption & Current: 12 V DC, 1.2 A, max. 14.5 W, PoE (802.3at, 42.5 V to 57 V), 0.5 A to 0.3 A, max. 18W
- Camera Size: Φ144.1 × 332.7 mm (Φ5.7" × 13.1")
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP66
- System: IP
- Optical: 2.8-12mm
- Resolution: 8MP (4K)
