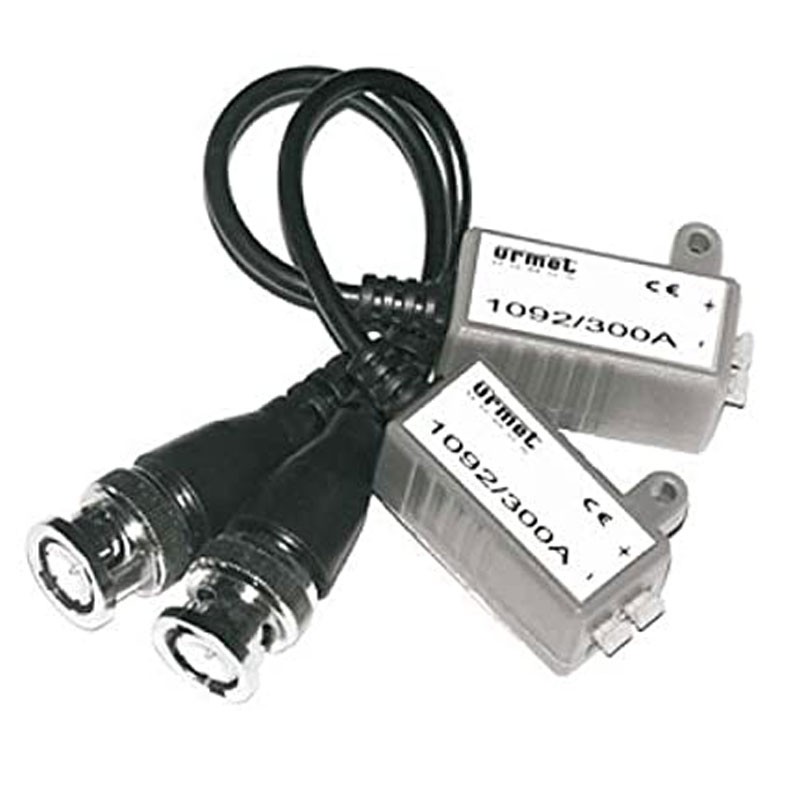

Pair of passive Video Balun TX/RX Urmet 1092/300A
UTD 1092/300A
Pair of passive video balun TX/RX Urmet, with the following features:
- Video input/output: BNC male
- UTP cable input / output: terminal block
- Weight: 30gr (each)
- Dimensions (each) (W x H x D): 30 x 15 x 14 mm
It can be used as a transmitter in combination with the following receivers: Ref. 1092/300A, Ref. 1092/303, Ref. 1092/304 and Ref. 1092/316 depending on the distances to be covered.
Pair of passive Video Balun TX/RX Urmet 1092/300A
€12.83
Tax included
€12.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 237
: 25
Pay in installments with Klarna
The Video Balun devices (Balanced-Unbalanced) use, for the transmission of the video signal, the twisted cables UTP CAT5. The great advantages of this type of transmission, compared to the use of coaxial cable, are represented by greater wiring distances (max 3000mt), easy availability of CAT5 cable on the market, possibility to use a single cable to transmit 4 video signals (through the 4 pairs of twisted pairs in the CAT5 cable), a higher immunity to atmospheric discharges and electromagnetic inductions.
The ease and inexpensiveness of installation, combined with the performance characteristics of the products, make the range BALUN Urmet Domus a solution suitable for all types of systems.
Prodotto discreto con un prezzo buono.
Ottimo prodotto ,professionale semplicissimo da installare.
Data sheet
- Type: Accessories
