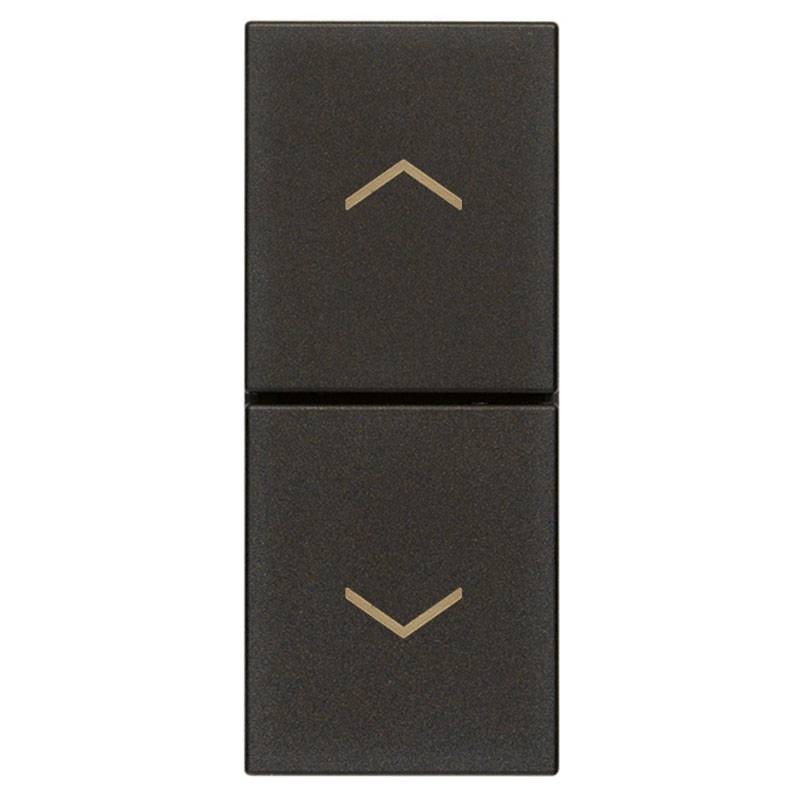

Double Roller Shutter Push Button Vimar Line Interlocked Black 30062.G

Vimar
Vimar
VIW 30062.G 8007352691582

Double Vimar Linea interlocked roller shutter pushbutton 1P NO + 1P NO 10 A 250 V~, with directional arrows. Black color, 1 Module.

To be applied only to Vimar Linea series holders codes: 30613/30614/30617.


Request info about this product

Double Roller Shutter Push Button Vimar Line Interlocked Black 30062.G

€17.93 Tax included
€17.93

Double Roller Shutter Push Button Vimar Line Interlocked Black 30062.G

€17.93
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 265
logo priority: 52
Altre disponibilità dal produttore
qty

Double Roller Shutter Push Button Vimar Line Interlocked Black 30062.G

€17.93

Buy it within and receive it from Wednesday, 31 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

The double interlocked button additionally has interlocking i.e. a protective device that prevents the two buttons from being pressed at the same time so as to avoid possible damage to the motor we are controlling.

Features:

  • Number of latching contacts 2
  • Number of poles 1
  • Type of fixing lock in place
  • Suitable for protection class IP40
  • Push-button control type
  • Rated voltage 250 v
  • Type of connection screw terminal
  • Rated Current 10.00 A
  • Type of mounting recessed
  • Material quality thermoplastic material
  • RAL code (similar) 7021.

There are no reviews

Data sheet

Main Commands:
Rolling shutters
