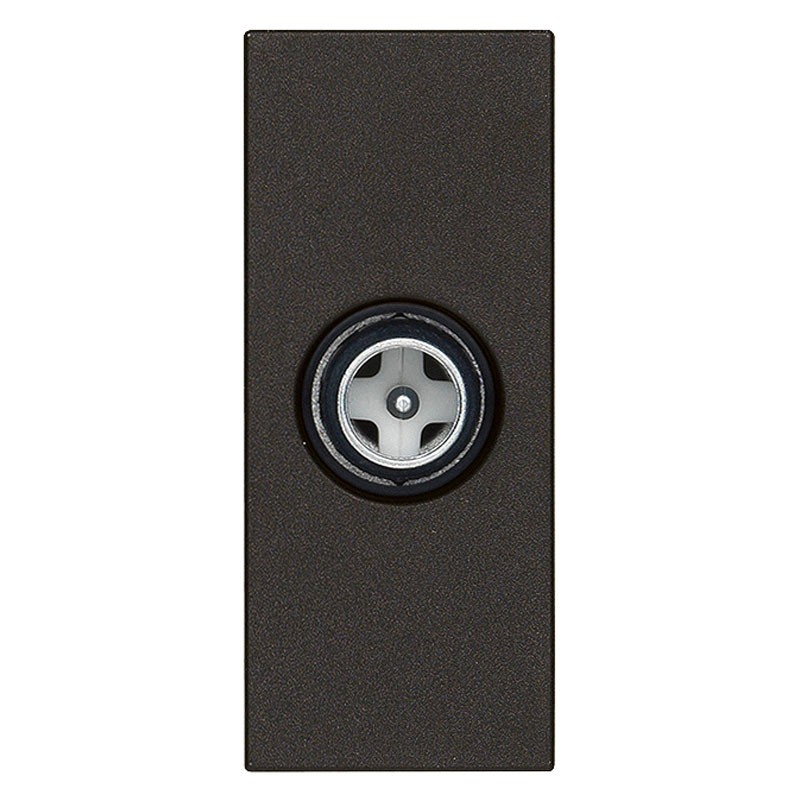

Vimar Linea TV-RD-SAT Direct Coaxial Socket Black 30300.01G
VIW 30300.01G
8007352677371
Vimar Linea TV-RD-SAT direct coaxial socket Black (shunt), with male connector, shunt attenuation 1 dB.
Black color, 1 module.
Allows direct current and control signals (24 V 500 mA max) to pass through.
To be applied only to Vimar Linea series frames codes: 30613/30614/30617.
Vimar Linea TV-RD-SAT Direct Coaxial Socket Black 30300.01G
€11.90
Tax included
€11.90
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 123
: 152
Pay in installments with Klarna
Frequently bought together
The direct outlet is also called the end because, precisely, it corresponds to the end of the antenna cable. We call it a feed-through socket, on the other hand, when the antenna cable that reaches the socket, comes out and goes into another socket.
Characteristics:
- Connection attenuation at 860 MHz 0.10 dB
- Type of fixing snap-on fixing
- Material quality thermoplastic material
- Degree of protection IP20
- Number of fruit modules 1
- Frequency 5 - 2400 MHz
- RAL code (similar) 7021.
Ho acquistato quasi tutto il materiale per l'impianto di casa mi sono trovato molto bene ottimi prezzi e catalogo prodotti molto fornito.
Data sheet
- Main Commands: TV sockets
