Vimar Linea 1P 10A Illuminated Aligned Pushbutton White 30008.B
VIW 30008.B
8007352683044

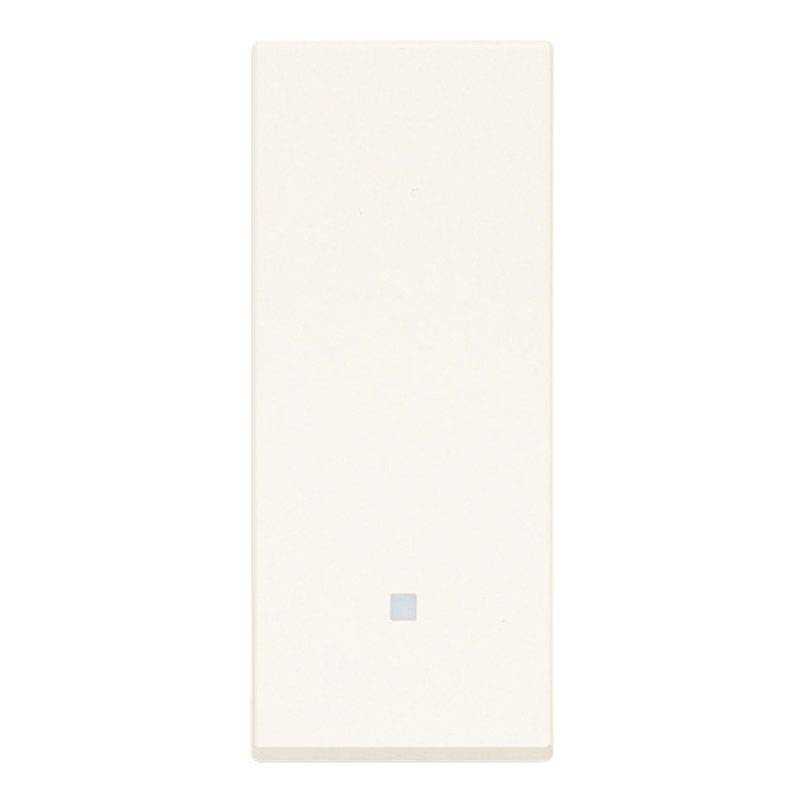

Vimar Linea 1P NO 10 A 250 V color White aligned pushbutton, replaceable button, illuminable.
Aligned controls feature a delicate protrusion and thanks to patented in-line technology, they return perfectly to position once actuated.
To be applied only to Vimar Linea series holders codes: 30613/30614/30617.
Illuminable with LED light 110-250 V 50/60 Hz 0.4 W for in-line and axial controls code 00943.W.
Accessory with vertical light beam buy separately Interchangeable key 1 module aligned illuminable code 31000S.B.
Vimar Linea 1P 10A Illuminated Aligned Pushbutton White 30008.B
€7.26
Tax included
€7.26
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 727
: 231
Pay in installments with Klarna
Frequently bought together
The button is usually used to ring the house bell or for systems equipped with relays, once pressed via a spring it returns to its initial position.
Features:
- Number of poles 1
- Suitable for protection class IP40
- Rated voltage 250 v
- Type of connection screw terminal
- Rated Current 10.00 A
- Material quality thermoplastic material
- RAL code (similar) 9016.
There are no reviews
Data sheet
- Main Commands: Buttons
