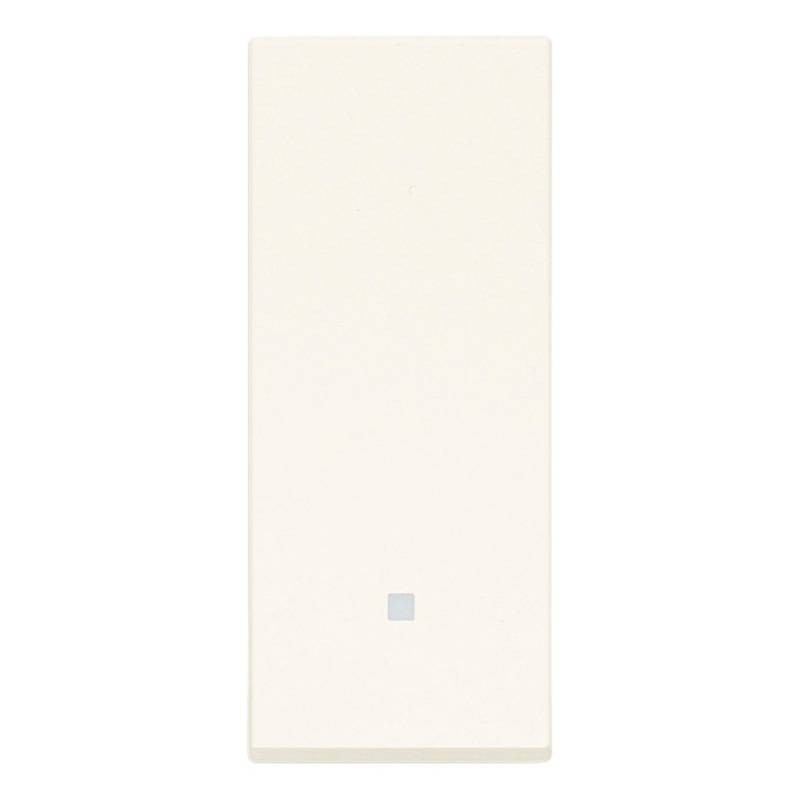

Vimar Linea Illuminated Changeover Switch 1P 10AX White 30000.B
VIW 30000.B
8007352674912
Vimar Linea Changeover Switch:
- 1 Pole
- Current Rating 10 Amps
- Illuminable
- Color White
- Max 100 W for lamps with integrated ballast (IEC 60669-1:2017)
To be applied only to Vimar Linea series frames codes: 30613/30614/30617.
Illuminable with LED indicator light 110-250 V 50/60 Hz 0.4 W for aligned and axial controls (code 00943.W).
Aligned controls feature a gentle protrusion and thanks to patented in-line technology, they return perfectly to position once operated.
Accessory with vertical light beam to be purchased separately Interchangeable key 1 illuminable aligned module (code 31000S.B).
Vimar Linea Illuminated Changeover Switch 1P 10AX White 30000.B
€6.51
Tax included
€6.51
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 782
: 224
Pay in installments with Klarna
Frequently bought together
The Changeover Switch is used when we need to turn on one or more lamps from a single point.
Features:
- Material quality thermoplastic material
- RAL code (similar) 9016
- Nominal voltage 250 v
- Rated Current 10.00 A
- Type of connection screw terminal
- Operation type single-pole switch
- Plastic material
- Suitable for protection class IP40
Data sheet
- Main Commands: Switches
