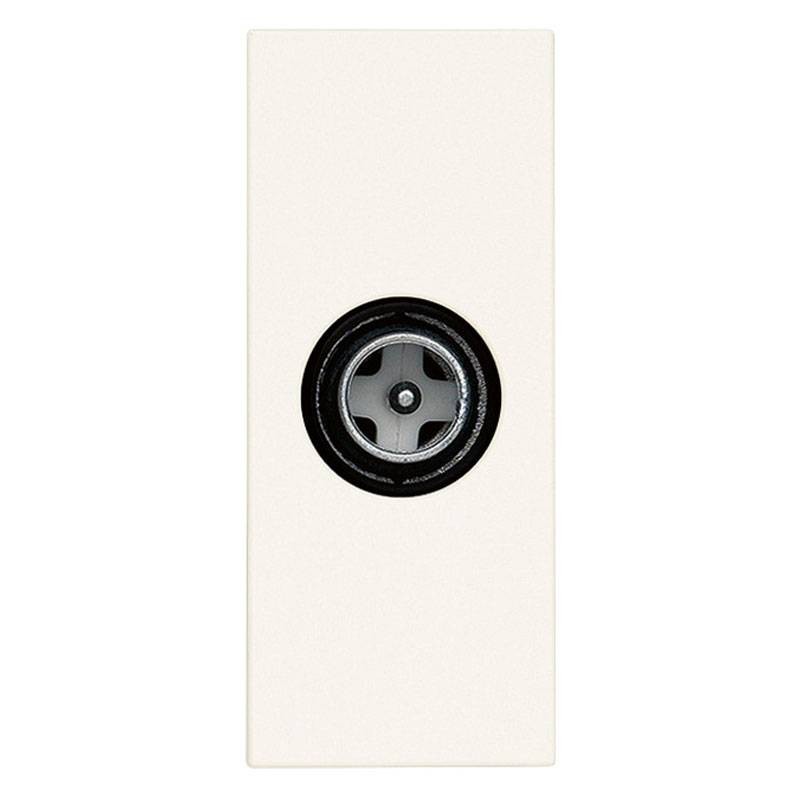

Vimar Linea TV-RD-SAT Direct Coaxial Socket White 30300.01B
VIW 30300.01B
8007352677340
Vimar TV-RD-SAT direct coaxial receptacle White Line (shunt), with male connector, shunt attenuation 1 dB.
White color, 1 module.
Allows the passage of direct current and control signals (24 V 500 mA max).
To be applied only to Vimar Linea series frames codes: 30613/30614/30617.
Vimar Linea TV-RD-SAT Direct Coaxial Socket White 30300.01B
€11.90
Tax included
€11.90
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 157
: 183
Pay in installments with Klarna
Frequently bought together
The direct outlet is also called the end because, precisely, it corresponds to the end of the antenna cable. We call it a feed-through socket, on the other hand, when the antenna cable that reaches the socket, comes out and goes into another socket.
Characteristics:
- Connection attenuation at 860 MHz 0.10 dB
- Type of fixing snap-on fixing
- Material quality thermoplastic material
- Degree of protection IP20
- Number of fruit modules 1
- Frequency 5 - 2400 MHz
- RAL code (similar) 9016.
molto soddisfatto, tutto secondo aspettative, prezzo competitivo e spedizione nella norma senza problemi
Data sheet
- Main Commands: TV sockets
