Gewiss steel panel 600x800 IP55 GW47172
GEW GW47172
8011564096318

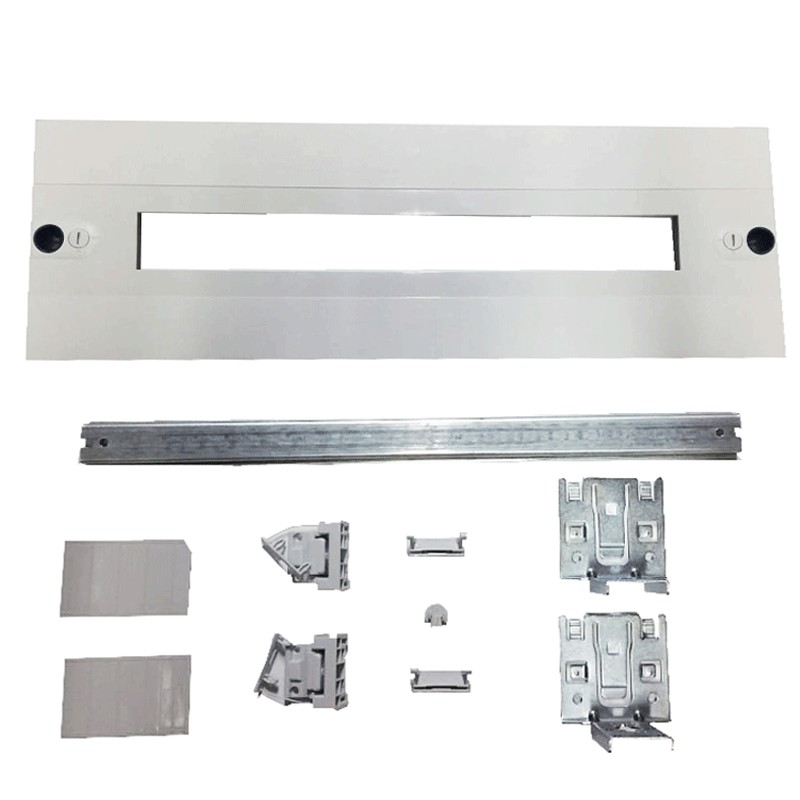

Gewiss installation kit, for CVX 160E modular/batten luminaires, with the following characteristics:
- Rated operational voltage (Ue): up to 500 V AC
- Rated insulation voltage (Ui): up to 500 V AC
- Rated current (In): up to 160 A
- Dimensions BxH: 600x200 mm
- Profile dimensions HxD: 35x15 mm
- 24 modules
Gewiss steel panel 600x800 IP55 GW47172
€36.08
Tax included
€36.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 56
: 9
Pay in installments with Klarna
This article should be installed indoors.
Features:
- Rated impulse withstand voltage (Uimp): 6 kV 1.2/50 μs
- Rated conditional short-circuit current (Icc): 10 kA
- Rated peak current (Ipk): 17 kA
- Rated short-time withstand current (Icw): 10 kA (1s)
- Protection against indirect contacts: metal casing prepared for grounding
- Operating temperature: -5 °C ÷ 40 °C
- Storage temperature: -25 °C ÷ 55 °C
- Sheet steel thickness metal casing: 10/10 mm
- Steel sheet thickness door: 12/10 mm
- Hot galvanized steel sheet thickness bottom plates: 15/10 mm
- Painting of the metal sheets with epoxy-polyester powder colour Grey RAL 7035
- Standards: EN 61439-1 and EN 61439-2, EN 62208, CEI 23-48, CEI 23-49
There are no reviews
Data sheet
- Type: Panels
