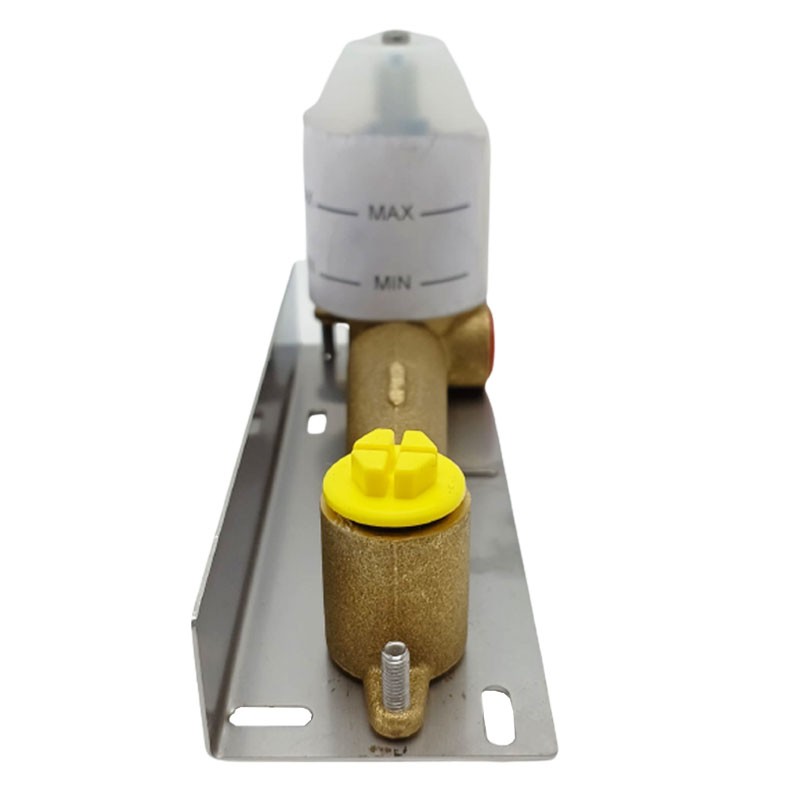

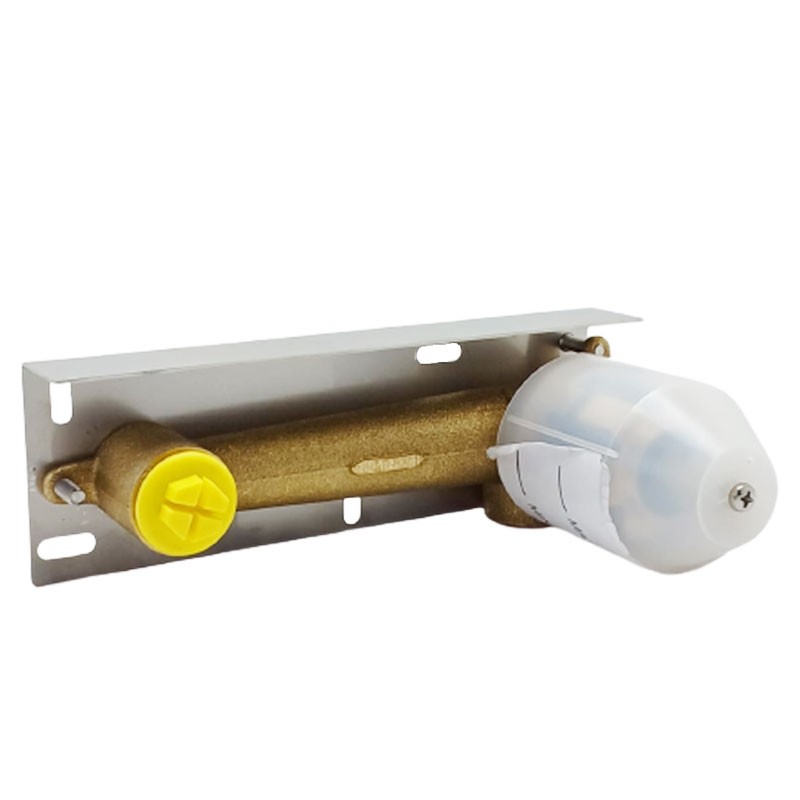

Teorema recessed body for washbasin taps 0310400-T02
06K 0310400-T02
8058965386426
Teorema recessed body for 2-piece washbasin taps, for single-lever mixers (part number 73318E11-001):
- Max operating pressure 5 bar
- Minimum working pressure 0.5 bar
- Recommended pressure 2/3 bar
- Hydraulic system water test Max 10 bar (with gradual increase in water pressure)
- Max operating temperature 60 degrees
Teorema recessed body for washbasin taps 0310400-T02
€61.00
Tax included
€61.00
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
Frequently bought together
Features:
- For higher pressures, fit a reducer
- To avoid overloading, the tap must be open to allow air to escape; close it later to begin leak test (otherwise air is compressed in the piping and the maximum allowable pressure value cannot be known)
- Always test the system in the appropriate manner
- Check for proper grounding of electrical equipment (e.g. hot tubs) to which the faucets may be connected; any stray currents may promote corrosion
Temperatures:
- Maximum (hot water inlet) 80 degrees
- Recommended (hot water inlet) 60 degrees
There are no reviews
Data sheet
- Type:
- Recessed bodies for taps
