Atlantic Calypso wall mounted thermodynamic electric water heater in high efficiency VM Heat Pump, tank capacity 150 liters with Steatite technology, Energy Class A, it uses the heat of the air to produce DHW (domestic hot water).
Atlantic Calypso Heat Pump Water Heater VM 150 876188 Wall mounted VM 150 866015
€1,906.46
Tax included
€1,906.46
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 2
Pay in installments with Klarna
Water heaters of the same series
ADVANTAGES

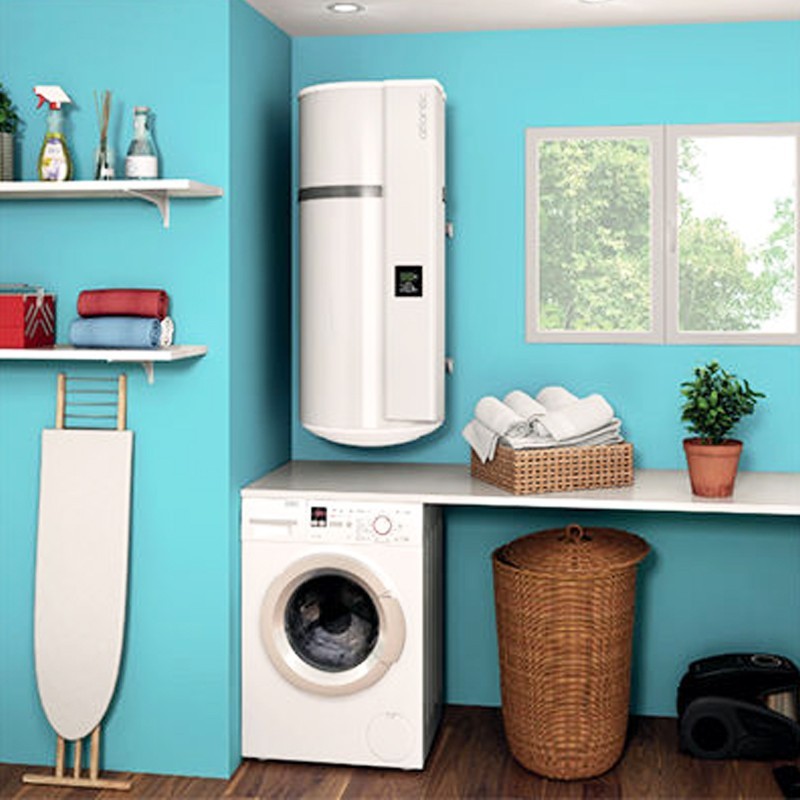

- Wall installation
- Low noise level
- Back-up electrical resistance
- Thermodynamic kettle in heat pump, uses latent heat from ambient air to produce DHW
- Suitable for installation in small spaces
- Remote control via App
- Photovoltaic system compatibility
- Canalized
- Steatite electric resistance with ACI Hybrid protection.
EQUIPMENT
- Single-phase power supply
- Heat pump
- Remote control via COZYTOUCH App, available for iOS and Android
- Vitrified storage tank
- Ductable air connections
- 1200 W steatite electric integration resistor
- Corrosion protection by ACI Hybrid (magnesium anode electronic anode)
- Connection to a photovoltaic system: when electricity is produced, the heat pump goes to maximum speed to store as much domestic hot water as possible.
CHARACTERISTICS:

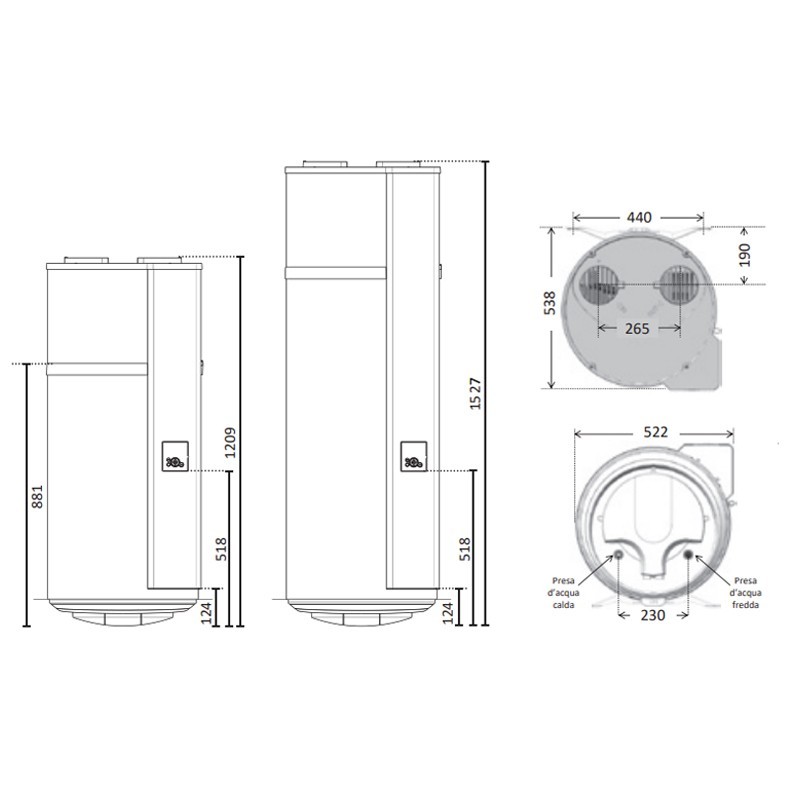

- Dimensions (Height x Width x Depth) 1527 x 529 x 539
- Empty weight 66
- Tank capacity 150 litres
- Hot water/cold water connection 3/4 M
- Corrosion protection ACI Hybride
- Assigned water pressure 8 Bar
- Electrical connection (voltage / frequency) 230V single-phase 50 Hz
- Maximum total power consumption 2150 W
- Maximum power consumption heat pump 350W
- Power consumption of electrical integration 1800W
- Heat pump water temperature control range 50 to 62 C
- Temperature range heat pump use -5 to 43 C
- Air inlet/outlet diameter 125 mm
- Vacuum air flow rate (without duct) 160 cubic meters/h
- Permissible pressure drops within the air circuit without impact on performance 70 Pa
- Acoustic power 45 dB(A)
- Mass of refrigerant R134a 0.58 Kg
- Volume of refrigerant in tonnes-equivalent 0.83 teqC0
- Mass of refrigerant 0.0039 Kg/L
- Quantity of hot water at 40°C: V40td in 8h(HC) 190 L.
CERTIFIED PERFORMANCE WITH AIR AT 7°C (EN 16147)
- Performance Coefficient (COP) 3.05 - L
- Power consumption in stabilized mode (Weights) 24W
- Warm-up time (th) 10h25 h.min
- Reference temperature (Tref) 53.2v C
- Air flow 110 cubic meters per hour.
CERTIFIED PERFORMANCE WITH AIR AT 15°C (EN 16147)
- Performance Coefficient (COP) 3.28 - L
- Power consumption at stabilised speed (Weights) 25W
- Warm-up time (th) 9h29 h.min
- Reference temperature (Tref) 53.4 C
- Air flow 110 cubic meters per hour.
There are no reviews
Data sheet
- Type: Water heaters
- Model: Heat Pump
- Installation: Vertical
- Capacity: 150 Liters
- Energy class: A+
- Series: Calypso VM
