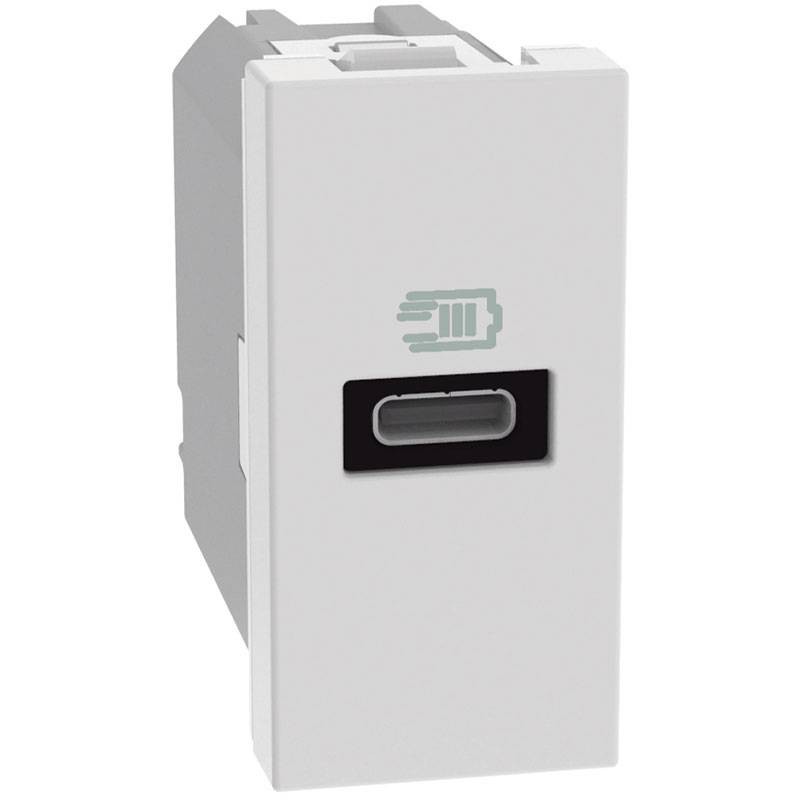

Bticino MatixGO 20W USB socket with 1 Port Type C White JW4192C
BTI JW4192C
8005543715116
Bticino MatixGO USB socket with 1 type C port:
- Voltage 100-240Vac
- Power (W) 20W
- Modules 1
- Output 5-9-12Vdc
- White color
- For charging electronic devices up to 20W
- Output voltage: 5 - 9 - 12Vdc
- Direct power supply 100-240 V 50-60 Hz
Enables fast charging of portable devices (tablets, smartphones) prepared with Power Delivery technology.
To be applied to J4702-J4703-J4704-J4707 frames.
Bticino MatixGO 20W USB socket with 1 Port Type C White JW4192C
€15.30
Tax included
€15.30
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 58
: 12
Pay in installments with Klarna
Frequently bought together
Usage:
- USB to charge portable devices such as phones, smartphones, MP3 or MP4 tablets, speakers, watches, game consoles, powerbanks
- Optimizes the charging speed of Power Delivery terminals
USB Power Delivery is the new fast charging technology built into iOS/Apple and Android/Google devices. Technology that enables a faster charging level than conventional technologies by operating through an exchange between the terminal and the charger.
Features:
- Clamp type: screw
- Clamp capacity: 1 x 2.5 mm2
- Stripping length: 6 mm
- Compatible with flexible and rigid cables
- Protection index IP40
- Impact proof IK04
- Storage temperature: -10° C to +70° C
- Operating temperature: -5° C to +35° C
Materials:
- Housing : PC class V-0
- Cover : PC class V-0
- Halogen Free
- UV Resistant
- Self-extinguishing: 850°C/30s for insulating parts holding live parts in place - 650°C/30s for other parts of insulating materials
Loads (All values listed below were measured at an ambient temperature of + 20° and after 30 minutes of operation):
- Rated input voltage 100-240 V~
- Rated input frequency 50/60 Hz
- Maximum input current 0.5 A
- Maximum output current 3.0 A
- Maximum output power 20W
- Rated output voltage 5.0 V
- Average power efficiency 86%
- Maximum power dissipation in stand-by < 0.05 W
- Off-charge consumption class and average efficiency level: level VI
- Protection class II - Low voltage
To optimize your device's charging time, be sure to turn it off while charging.
