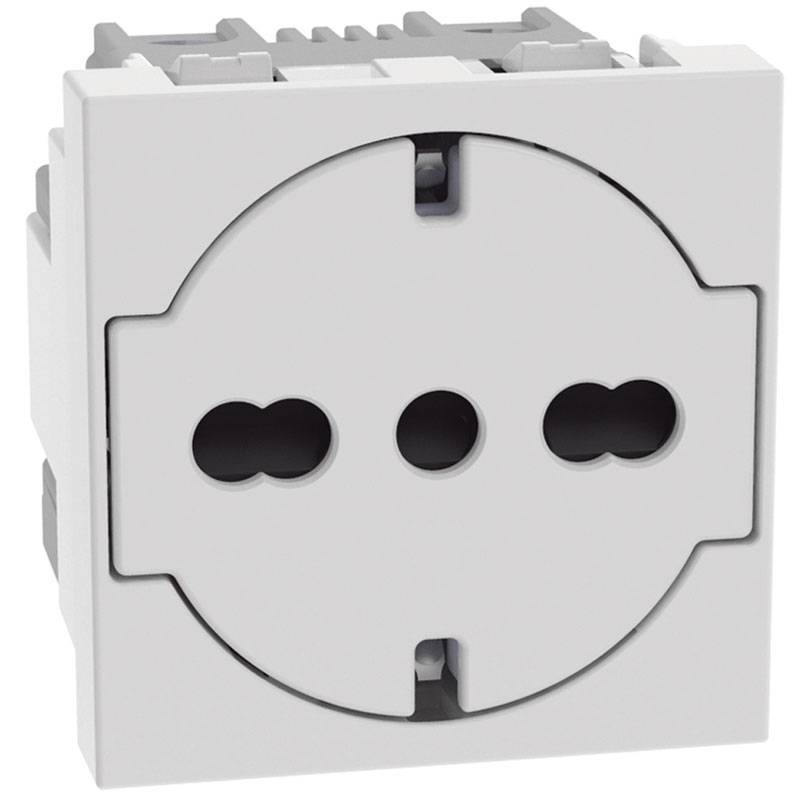

Bticino MATIXGO P40 2-module Standard Schuko Flat Socket White JW4140A16F
BTI JW4140A16F
8005543716717
Bticino MATIXGO Standard German Schuko Flat Socket:
- Voltage 250Vac
- Current In 16A
- 2 modules
- Color white
- Poles 2P+T
- 19 mm and 26 mm spacing in two-pole configuration
- Protected cavities
- Side ground contacts for German standard plugs
- Suitable for standard Italy 2 P and 2 P+T 10/16 A plugs, German standard 2 P+T 16 A plugs
To be mounted on socket J4702-J4703-J4704-J4707.
Unlike the traditional schuko socket, the flat is characterized by the surface of the socket, when the plug is inserted, it slides inside the well; it returns to its initial position when the plug is pulled out.
Bticino MATIXGO P40 2-module Standard Schuko Flat Socket White JW4140A16F
€6.95
Tax included
€6.95
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1171
: 1
Frequently bought together
The schuko electrical outlet also known as the German outlet allows any plug (small, large and schuko) to be inserted inside.
Features:
- Clamp type: screw
- Clamp capacity: 2 x 4 mm2
- Stripping length: 11 mm
- Compatible with flexible and rigid cables
- Penetration by solids/liquids: IP21D
- Impact proof: IK04
Materials:
- Case and cover : PC (polycarbonate)
- Halogen Free
- UV Resistant
- Self-extinguishing: 850°C/30s for insulating parts that hold live parts in place, 650°C/30s for other parts of insulating materials
- Storage temperature: -10° C to +70° C
- Operating temperature: -5° C to +35° C
