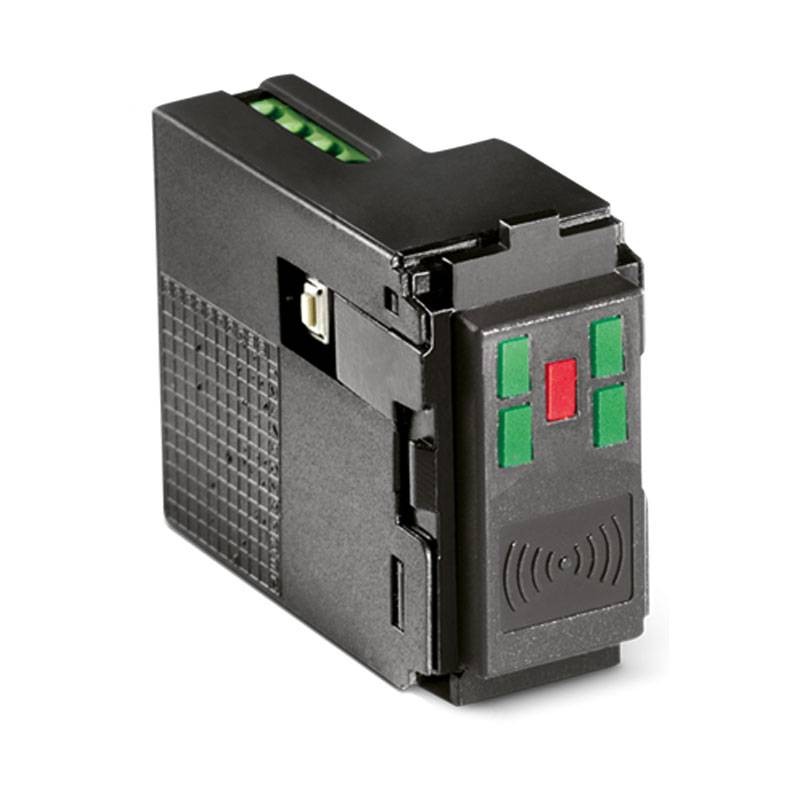

Elkron DK3000M-P Proximity Key Reader Black 80DK1000211
EKO 80DK1000211
8034034448226
Elkron DK3000M-P proximity key reader, through the approach of a proximity key belonging to the system, allows the user to impart in an extremely simple way, activation and deactivation commands:
- Mifare technology
- Compatible with Mifare keys model DK70
- 2 PriO points on board (IN/OUT)
- 4 green system status LEDs
- 1 red LED open inputs/alarm memory
- Buzzer
- Optional adapters for most common electrical series
- Dimensions (W x H x D): 21 x 40 x 50 mm
- EN50131 grade 2 class II certification
Compatible with Elkron DK70 Proximity Key for DK510M-P reader code 80DK6400111.
Elkron DK3000M-P Proximity Key Reader Black 80DK1000211
€51.14
Tax included
€51.14
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 24
: 1
Pay in installments with Klarna
Frequently bought together
The DK3000 is a control device (arming, disarming, scenario, etc.) prepared for the use of MIFARE DK70 keys, available with anthracite front (DK3000M-P).
The proximity reader is connected to the control unit via BUS and is prepared for mounting in modular boxes. It has 2 individually programmable PrIO points as input or output. Adapters are available for the most common civil series.
POSITIONING:
- The proximity reader is installed in flush-mounted or wall-mounted modular boxes positioned in a sheltered environment protected from water and moisture.
CAUTION:
- If two readers are to be installed in the same box, leave at least the space of one module between them
BUS CONNECTION:
- The proximity reader can be connected on the bus in cascade, star or mixed mode. The location along the bus does not matter. The total length of the bus leg should not exceed 500 meters (cable sect. 2x0.75 mm2 power + 2x0.22 mm2 data). Connect the proximity reader to the bus, using the +, A, B, C terminals.
INPUT/OUTPUT CONNECTIONS (PrIO):
- Connect detectors to PrIOs P1 and P2 programmed as inputs. They can be individually programmed as NC, NO, Balanced, Double Balanced, Triple Balanced and Tandem. Handle fast signals from seismic sensors or shutters. Specialization (intrusion, tampering, robbery, panic, technological etc.) is specified by programming
There are no reviews
Data sheet
- Type: Proximity readers
