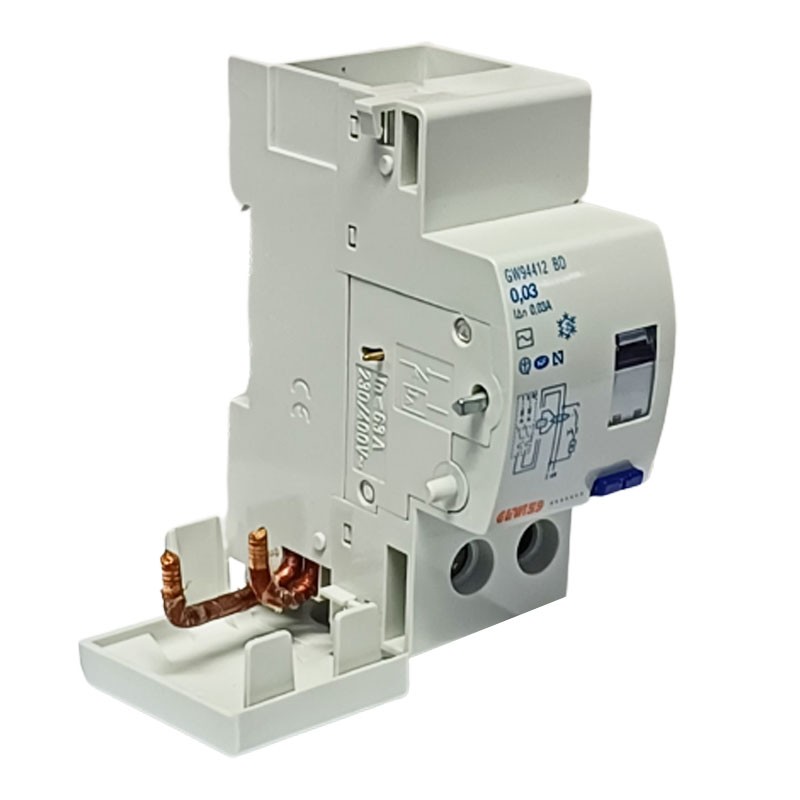

Gewiss 63A 2P 30MA AC 2-Module Circuit Breaker Differential Block GW94412
GEW GW94412
8011564061330
Gewiss life-saving differential lock with the following characteristics:
- Designation: BD
- Number of poles: 2P
- Number of modules: 2
- Rated current: 63A
- Rated differential current: 30mA
- Type: AC
- Rated voltage: 230V
Gewiss 63A 2P 30MA AC 2-Module Circuit Breaker Differential Block GW94412
€111.03
Tax included
€111.03
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 18
: 3
The differential blocks are mechanicallydesigned to prevent mismating between the block and the circuit breaker: the rating of the block must always be equal to or greater than that of the circuit breaker. The plastic clamp on the side allows faster mounting of the block on the circuit breaker, and a push-button prevents possible tripping.
It is used to protect human health in the event of a ground fault (electrical leakage) or phase-to-ground electrocution, thus also providing protection against macro electrical shock, both direct and indirect, on exposed persons.
The AC-type differential lock, works only with alternating current. Almost all installations for civil use fall into this type.
Characteristics:
- Rated frequency: 50/60 Hz
- Isolation voltage: 500V
- Rated impulse withstand voltage: 4 kV
- Overvoltage category: III
- Immunity level (8/20µs wave): 250 A
- Rigid cable cross-section: Max 35 mm²
- Flexible cable cross-section: Max 35 mm²
- Operating temperature: -25 - +40 degrees
- Storage temperature: -40 - +70 degrees
- Rated tightening torque: 2 Nm
- Mounting position Any
There are no reviews
Data sheet
- Voltage:
- 230VAC
- Modules:
- 2
- Poles:
- 2P
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 63A
- Circuit Protections:
- Earth Leakage add-on Blocks
