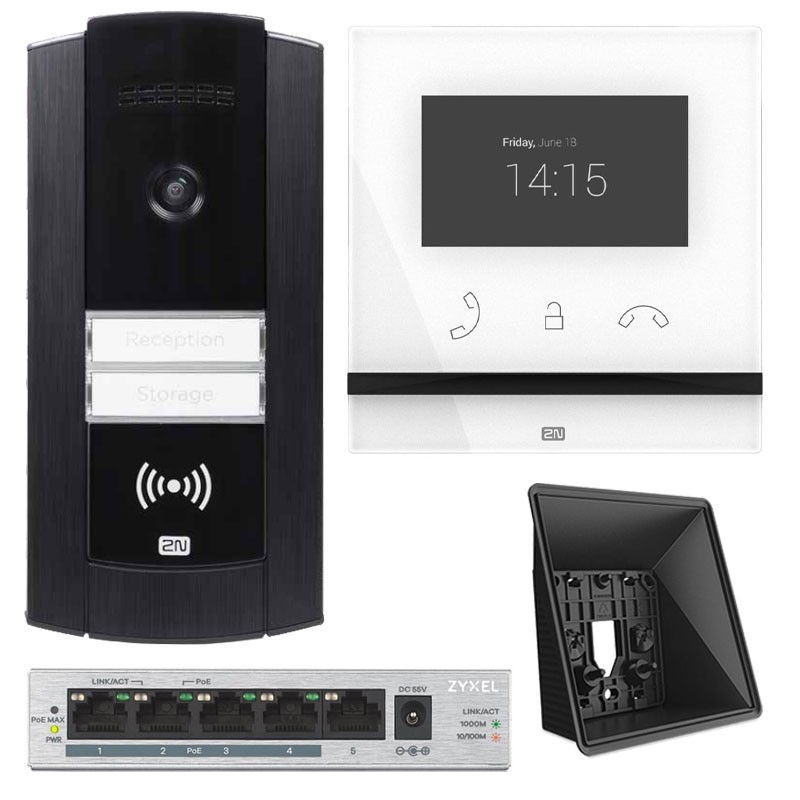

Component Specifications:

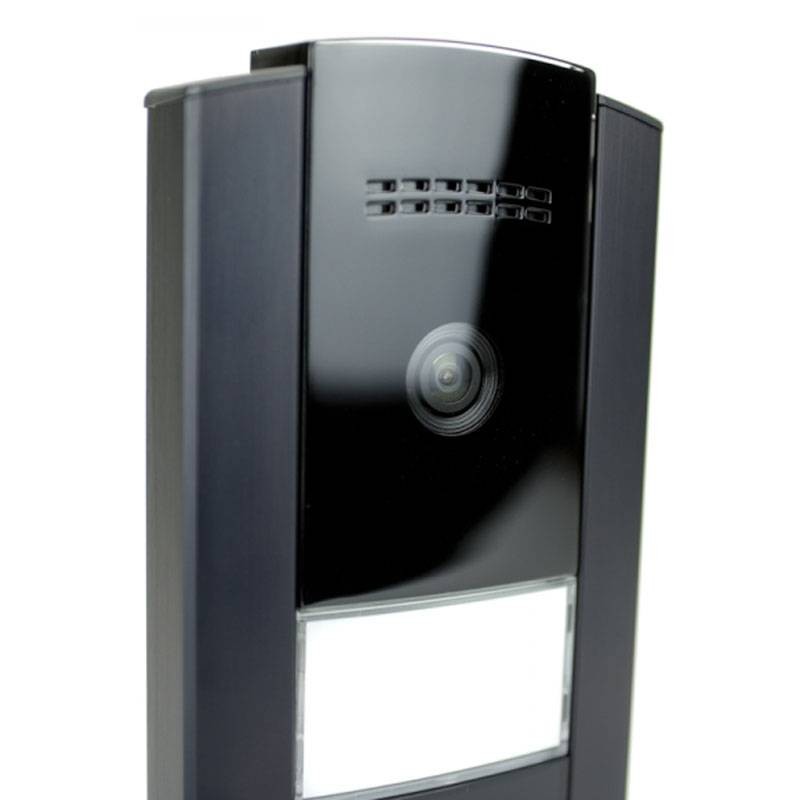

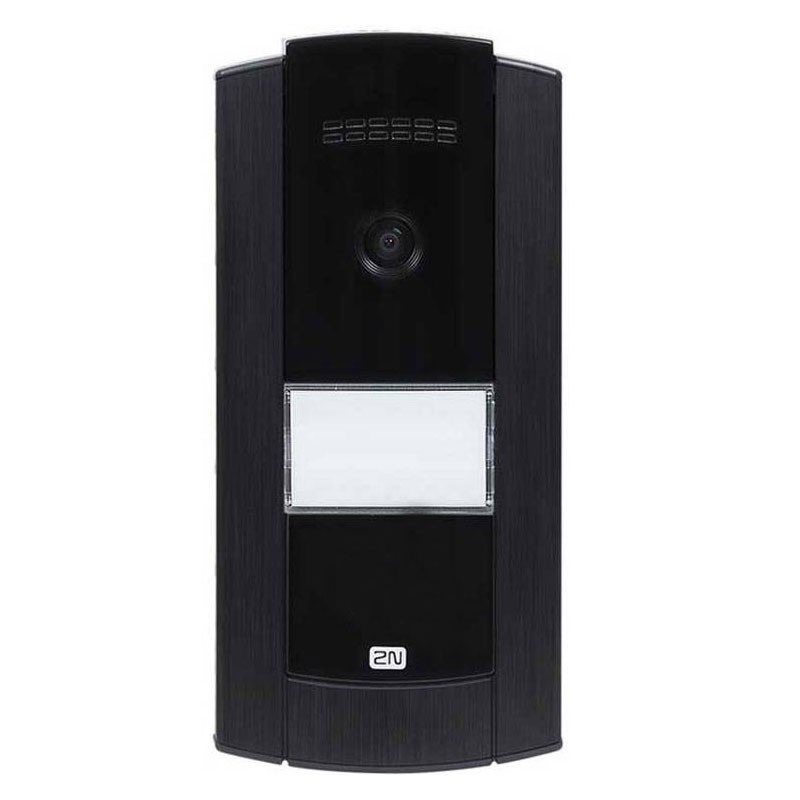

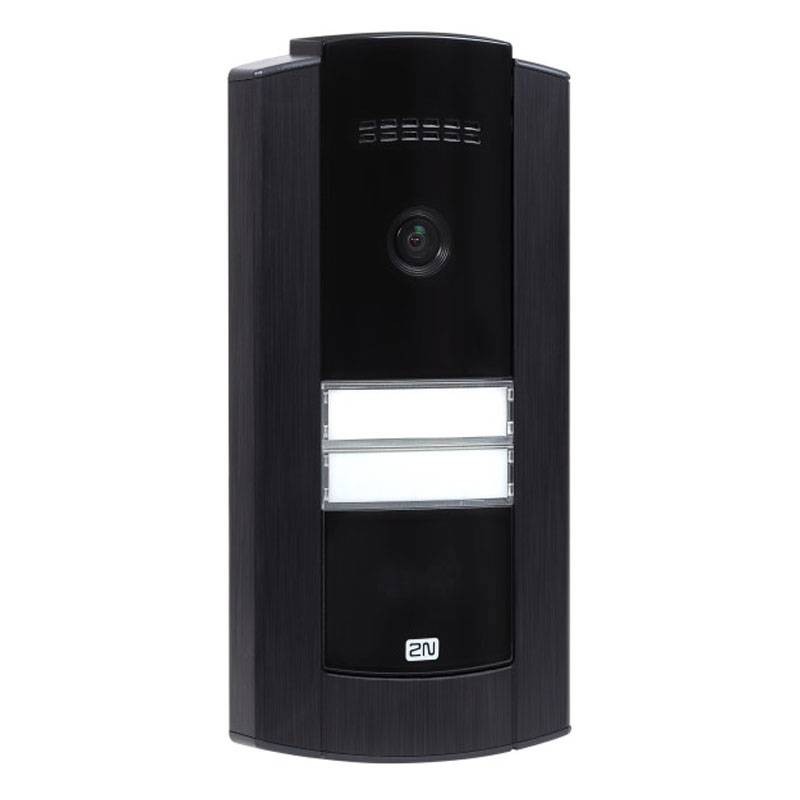

2N IP Base compact handset, which can be installed very easily and quickly. It has one or two buttons and offers high quality audio and video. It is an intercom designed especially for smaller installations.

SIMPLE IP INTERCOM WITH HD CAMERA:

• Elegant IP intercom with basic functions, high-quality audio and video.



RFID CARD READER:

• The basic model can be expanded with the module equipped with 125 kHz or 13.56 MHz RFID card reader.



2N® REMOTE CONFIGURATION

• Save time and money on excursions with our free service. Get remote access to all devices via a secure cloud connection. The fastest help to your customers.



READINESS TO CONNECT TO OTHER EQUIPMENT:

• The intercom has ready-made inputs and outputs for connecting the electric lock and other accessories.



DURABLE ALUMINUM FRAME:

• High strength is guaranteed by the degree of protection under IP65 standard and IK7 certificate.



VERY EASY TO INSTALL:

• Installation of the 2N® IP Base intercom is extremely simple. You save not only time, but also the costs associated with installation.



HIGH QUALITY VIDEO AND AUDIO:

• With a built-in HD camera and advanced sound processing with echo cancellation, the intercom delivers sharp images and excellent audibility in all conditions.



TAMPER SWITCH:

• The intercom features a tamper switch that detects unauthorized intrusion into the device.



ONE OR TWO BUTTONS:

• You can choose to use one or two buttons; both variants are included in the delivery.



Features:

• SIP 2.0 signaling protocol (RFC - 3261).
• Button design: plastic, transparent, backlit
• Number of buttons: 1 or 2 (package contains plastic buttons for both 1-button and 2-button options)
• Audio stream Codec: G.711, G.722, G.729
• Video Stream Codec: H.263+, H.263, H.264 for VoIP calls only MJPEG for http streaming
• Weight: max. 1000 g
• Operating temperature: -40°C 55°C
• Storage temperature: -40°C 70°C
• Operating relative humidity: 10%-95% (non-condensing)
• Dimensions: 229 × 109 × 31 mm
• Degree of protection: IP65, IK7



Audio:

• Microphone: built-in microphone
• Speaker: 2W
• Sound pressure for 1 kHz at a distance of 1 m: 78 dB.



Camera:

• HD camera resolution: 1280×960
• Visual angle: 135° in width, 109° in height
• Night vision: no.



Interfaces:

• PoE: 802.3af LAN PoE connector.
• Connector for expansion module (RFID card reader)
• IN1 - active/passive mode input terminal (-30 V to +30 V DC) OFF = open contact or UIN > 1.5 V - ON = open contact or UIN < 1.5 V
• 30 V/1 A AC/DC NO/NC relay output
• Active switch output: 8-12 V DC depending on power supply (PoE: 10 V; adapter: supply voltage minus 2 V), max. 400 mA
• Safety switch: yes, built-in
• Input for external power source: 12 V/2 A DC
• Supported protocols: SIP2.0, DHCP opt. 66, ONVIF, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog

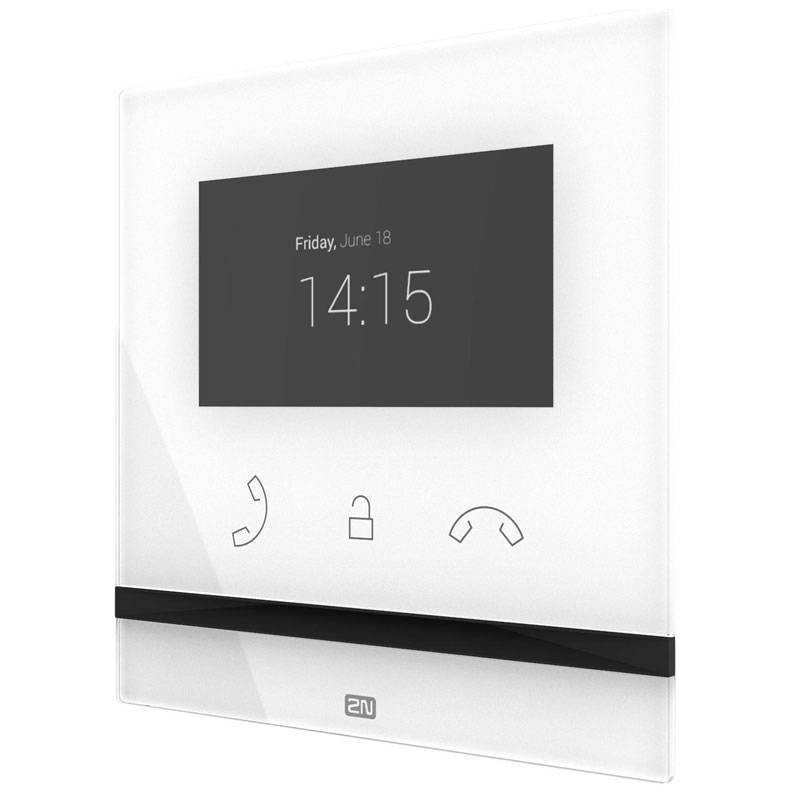

IP Response Unit 2N Indoor Compact White 91378501WH

Indoor 2N Indoor Compact response unit color Black designed specifically for the residential market. Installation by connecting a single UTP cable and configuration via Web interface ensures quick and convenient commissioning for any integrator. Users are fascinated by the minimalist design, tempered glass surface, 4.3-inch color display, and intuitive operation:

• Intuitive operation even for inexperienced users
• Tempered glass design surface
• Configuration via Web interface

INTUITIVE OPERATION EVEN FOR INEXPERIENCED USERS:

• It has never been easier to answer a call, open a door, view missed calls or activate silent mode. Large backlit buttons that contribute to quick orientation and ease of use

CONFIGURATION VIA WEB INTERFACE:

• Setup of all installed units, directory creation and firmware update can be performed via the web interface either from the local network or remotely using the 2N® Remote service

TEMPERED GLASS DESIGN SURFACE:

• Special 3 mm thick glass is chemically hardened at 420 °C in a salt bath, ensuring maximum scratch and impact resistance in daily use at home

UNIT CONNECTION IN SECONDS:

• Through the structured cabling typical of today's homes, 2N® Indoor Compact can literally be plugged into the system, so that both power to the device via PoE can be ensured immediately

QUALITY AUDIO WITH NOISE CANCELLATION:

• 2N® Indoor Compact offers the ultimate visitor communication experience. It uses the G.722 HD audio codec, a unique speaker output, and a noise cancellation system

VIDEO EXCHANGE FROM INDOOR AND OUTDOOR CAMERAS:

• When you answer a call on 2N® Indoor Compact, you can switch between the intercom camera and video from the outdoor IP camera at the entrance. Ensure that only authorized persons enter the house

INSTALLED IN THE WALL AND ON THE WALL:

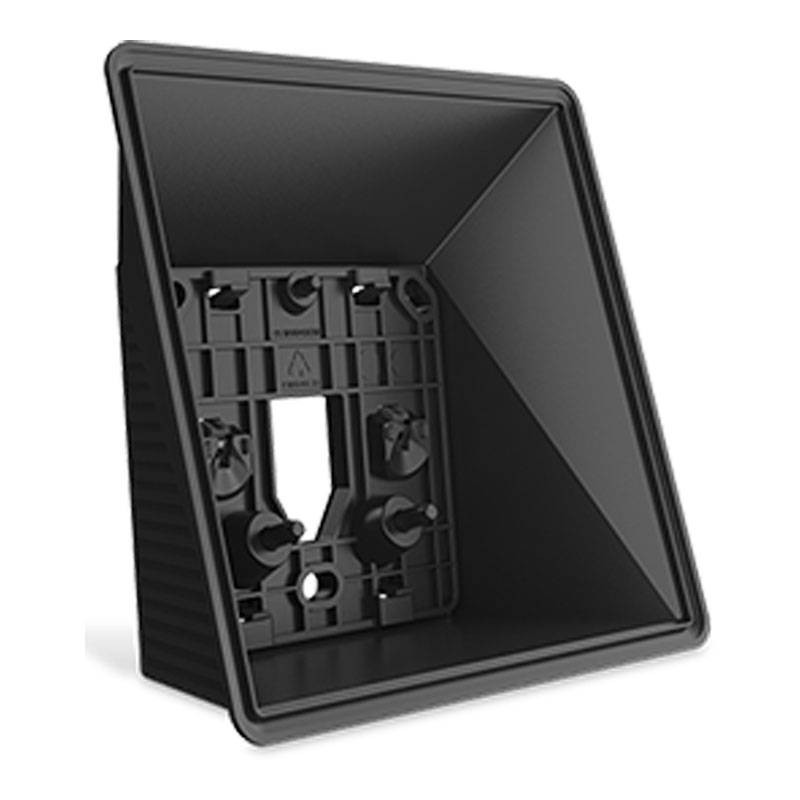

• The wall installation box allows you to achieve a horizontal position, with slight rotation, even on imprecise masonry. Can't drill? Choose a box with surface installation

INTEGRATION FOR SMART HOMES:

• Air conditioning activation, lighting or elevator call. These and 3 other commands can be sent by the resident directly through the unit's display.




Features:

Power supply:

• Type: 12V DC adapter or 802.3af PoE.
• Recommended power supply: 12 V/1 A
• Reverse polarity protection: yes




User interface:

• Controls: 7 capacitive buttons with backlighting



Interface:

• LAN: 10/100BaseT, RJ-45
• Recommended cabling: Cat5e or higher



Internal doorbell input:

• Input type: switch contact (button/relay)
• Contact type: normally open (NO)
• Contact parameters: up to 50 V/5 mA, DC



Audio:

• Microphone: built-in
• Speaker: built-in, 2W
• Induction circuit output: 600 mV RMS
• Codecs: G.711, G.729, G.722, L16/16kHz



Video:

• Codecs: H.264, H.263, MJPEG




Mechanical properties:

• Dimensions (W x H x D): 152 x 153 x 50 mm
• Weight: 387 g
• Operating temperature: 0 to 50 °C
• Operating relative humidity: 10 to 90 % (non-condensing)
• Storage temperature: -20 to 70 °C
• Recommended altitude above sea level: 0 to 2000 m

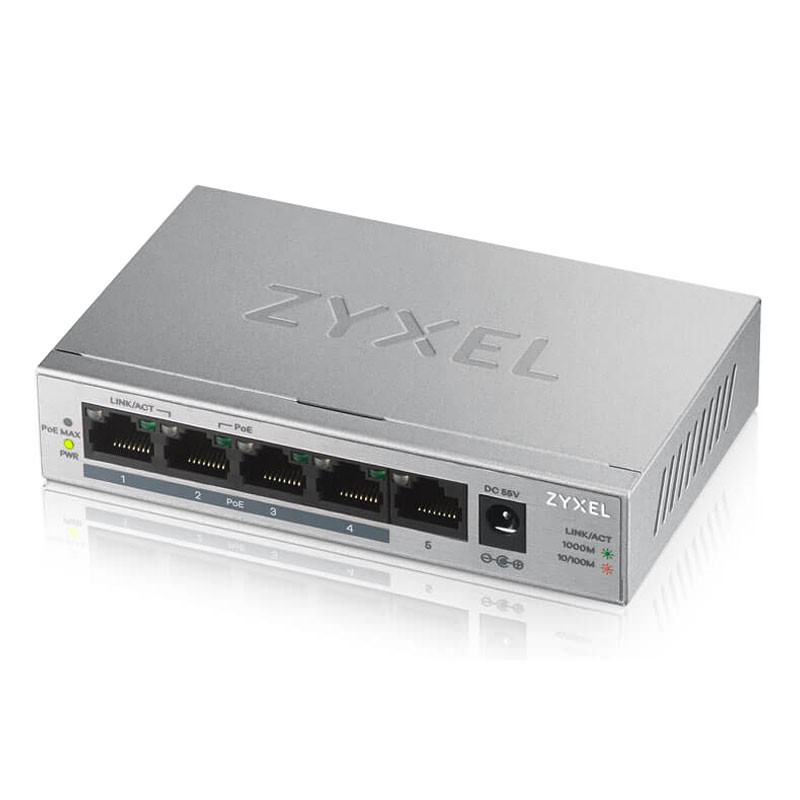

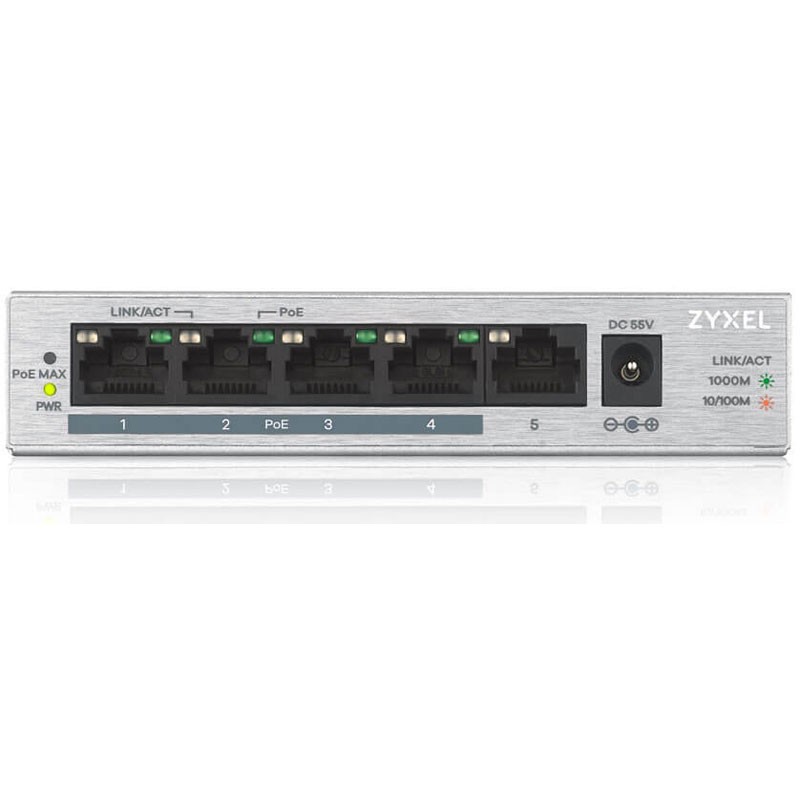

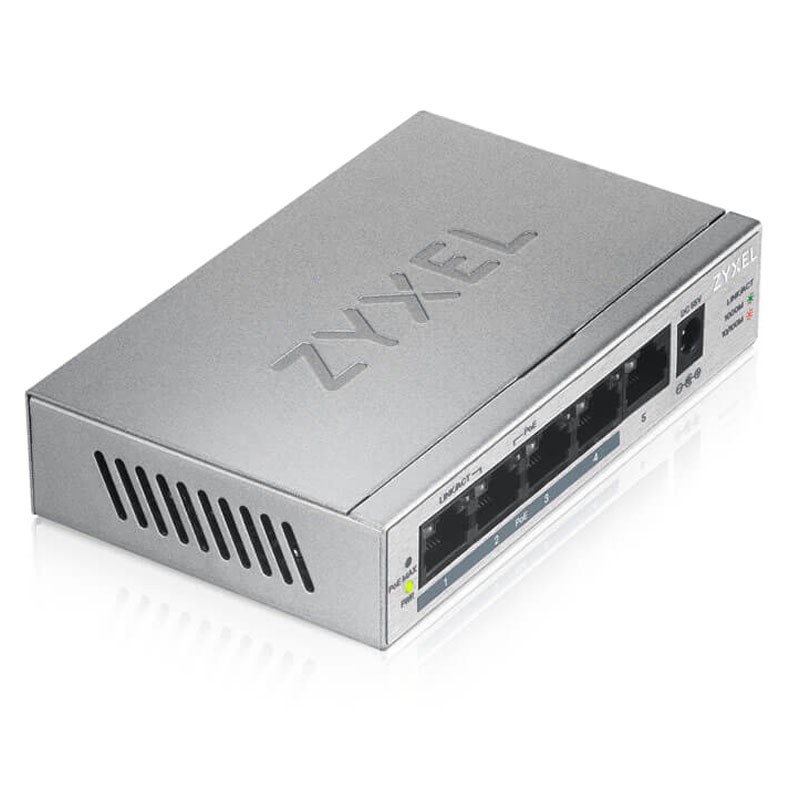

Zyxel 5GBE 60W 10/100/1000 POE 5-Port Switch GS1005HP-EU0101F

Zyxel Switch model GS1005HP is equipped with 5 Gigabit Ethernet ports, 4 of which are PoE ports capable of providing up to 60 W of total PoE budget

.

The GS1005HP can easily connect with PoE-ready devices to the network with a plug-and-play design, while providing energy-saving benefits without compromising performance.

The GS1005HP fills a long-standing gap in the market for unmanaged PoE switches that feature the 802.3at standard, have a high energy budget, and are affordable for SOHO and small businesses.

The GS1005HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a maximum total power budget of 60 watts) to provide power to PoE network devices such as wireless APs, IP cameras, and VoIP phones.

Fanless design:

• Extend your network without disrupting the quiet business environment. This switch features a fanless design that ensures quiet operation and increased reliability over time without moving parts that could fail.



Advanced power saving at work:

• The IEEE 802.3az Energy Efficient Ethernet (EEE) feature built into the GS1005HP automatically detects network traffic and dynamically adjusts power consumption to reduce power consumption during periods of low link utilization.



Gigabit data transmission and intelligent features:

• Equipped with Gigabit performance, it provides 10 times faster than Fast Ethernet. It offers up to 2,000 Mbps of dedicated bandwidth per port. Get more advanced features such as Jumbo Frame, flow control and automatic negotiation. It is a great choice for SMBs who want to take advantage of high-speed enterprise network applications!



Easy PoE budget management:

• The GS1005HP boasts a total power budget of 60 W and features a handy LED indicator that turns orange when the 50 W threshold is reached. If power consumption exceeds the budget, the last device will be automatically dropped without any impact on other devices powered through the switch.



Features:

Standard:

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3 Nway automatic negotiation
• IEEE 802.3x full duplex operation and flow control
• IEEE 802.3az Energy Efficient Ethernet



Performance:

• Data transfer rate (half duplex/full duplex): Ethernet: 10/20 Mbps - Fast Ethernet: 100/200 Mbps - Gigabit Ethernet: 1000/2000 Mbps
• MAC address table: 2 K
• Memory buffer: 128 KB
• Switching fabric (non-blocking): 10 Gbps




Features:

• Compatible with IEEE 802.3af and 802.at compliant PDs
• Auto-MDI/MDIX in all ports
• EEE802.3x flow control
• IEEE 802.1p quality of service
• Jumbo frame support up to 9 KB




Hardware Specifications:

Interface:

• 5 RJ-45 10/100/1000 Mbps Ethernet ports with automatic MDI/MDIX support



PoE ports (RJ45):

• Standard: 802.3af and 802.3at compliant
• 4 PoE+ ports (Port1- Port4), up to 30 W per port
• Total PoE budget: 60 W



Power supply:

• External AC to DC power adapter
• Input: 100-240V AC
• Output: 55 V DC/1.3 A



Physical Specifications:

• Item dimensions (WxDxH): 121 x 75 x 26 mm
• Item weight: 235 grams



Certifications:

• CE, FCC, BSMI, EAC.
