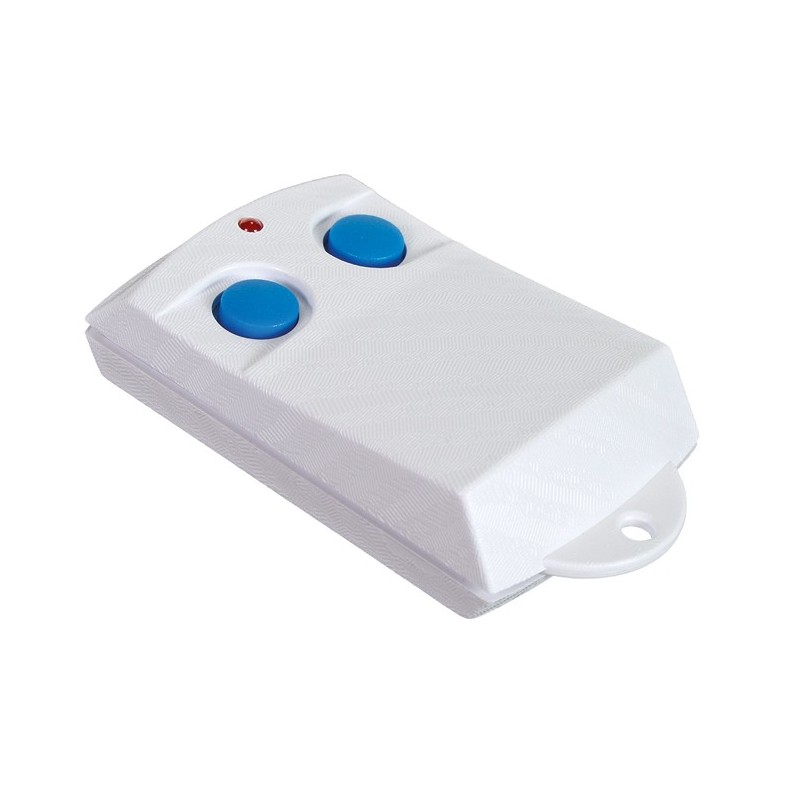

Hiltron bidirectional remote control 433Mhz for Protect and TM DXR20
C1A DXR20
8056450412148
Dual-channel remote control / bidirectional Hiltron, for PROTEC8GSM and TM800GSM. Power supply: 3Vdc Lithium Battery model CR2032.
Hiltron bidirectional remote control 433Mhz for Protect and TM DXR20
€34.49
Tax included
€34.49
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 1
Pay in installments with Klarna
Frequently bought together
BATTERY REPLACEMENT: Screw the screw on the bottom of the remote control to open the case, remove the spare battery and insert a new one, respecting the polarities indicated on the case. When you connect the battery, the led on the remote control should flash: if not, disconnect the battery and wait a few seconds before reconnecting it. Check the correct functioning of the two buttons before closing the container.
PROGRAMMING: Press both keys for a few seconds until the led stays on, then release them. Program the remote control with the system code using the two keys:- Left key: to enter "1". Right key: to enter "0". If entry of the dates is suspended for more than thirty seconds, the led will flash for a few moments and automatically exit the programming phase without modifying the existing code. In case of error, it is possible to interrupt date entry by pressing the two keys simultaneously for a few moments: the LED flashes for a few seconds and programming stops. When a correct code has been entered, the LED flashes once and the programming phase ends. In case of wrong code (all zeros or all ones) the led flashes for a few seconds and exits the programming phase without accepting the code. Keeping a key pressed for a long time, the relative command is sent for 15 times, then the XR20 waits for the delivery of the key before allowing a new sending. This function is useful to avoid unnecessary battery consumption in case of accidental pressing of a key.
Features:
- Hiltron series
- Connection and disconnection of XR series radio control panels
- Programming of the code through the two keys
- Unlimited number of radio controls that can be used for the same installation
- Page for attaching to key fobs in high frequency tires
- Function of 10 consecutive sending of the pressed key code
- Working frequency: 433.92 Mhz
- Max absorption in transmission: 40mA
- Rated supply voltage: 3V
- Dimensions: 61x38x18mm
There are no reviews
Data sheet
- Type: Remote controls
