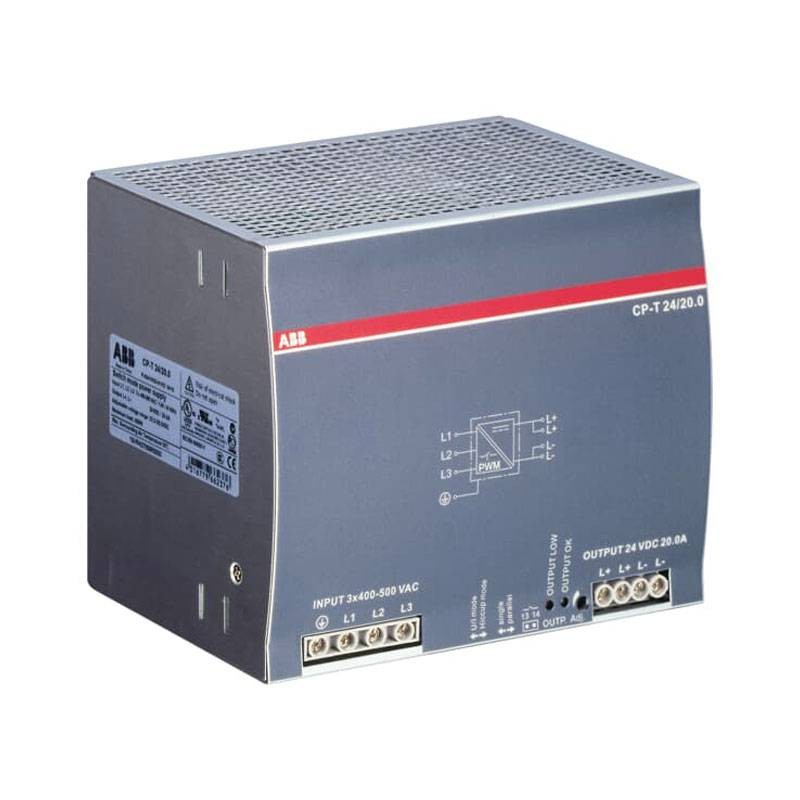

Abb switching power supplies 20A three-phase 24VDC 480W CPT2420
ABB CPT2420
4016779662376
Abb switching power supplies type CP-T 24/20.0:
- Output current: 20A
- Rated output voltage: 24V DC
- Number of phases: 3
- Rated input voltage (UIN): 3x 400 ... 500V AC
- Input voltage (Uin): 3 x 340...575V AC - 480...820V DC
- Power output: 480W
Abb switching power supplies 20A three-phase 24VDC 480W CPT2420
€383.42
Tax included
€383.42
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
Features:
- Dimensions. Width 150 mm - Height 131 mm - Depth 119 mm
- Net weight: 1.657 kg
- Rated frequency (f): 50 Hz
- Rated frequency: 47...63 Hz
- Output characteristic: U/I characteristic curve or Hiccup-mode selectable
- Degree of protection: IP20 housing - IP20 terminals
- Input connection capacitance: Flexible with ferrule 0.2 ... 4 mm² - Rigid 0.2 ... 6 mm²
- Capacitance output circuit connection: Flexible with ferrule 0.2 ... 4 mm² - Rigid 0.2 ... 6 mm²
- Tightening torque: Input circuit 1 N-m - Output circuit 0.6 Nm
- DIN rail mounting: TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm Mounting Rail) according to IEC 60715
- Ambient temperature: In operation -30/+70 °C - In storage -40/+85 °C
There are no reviews
Data sheet
- Type:
- Power supplies
