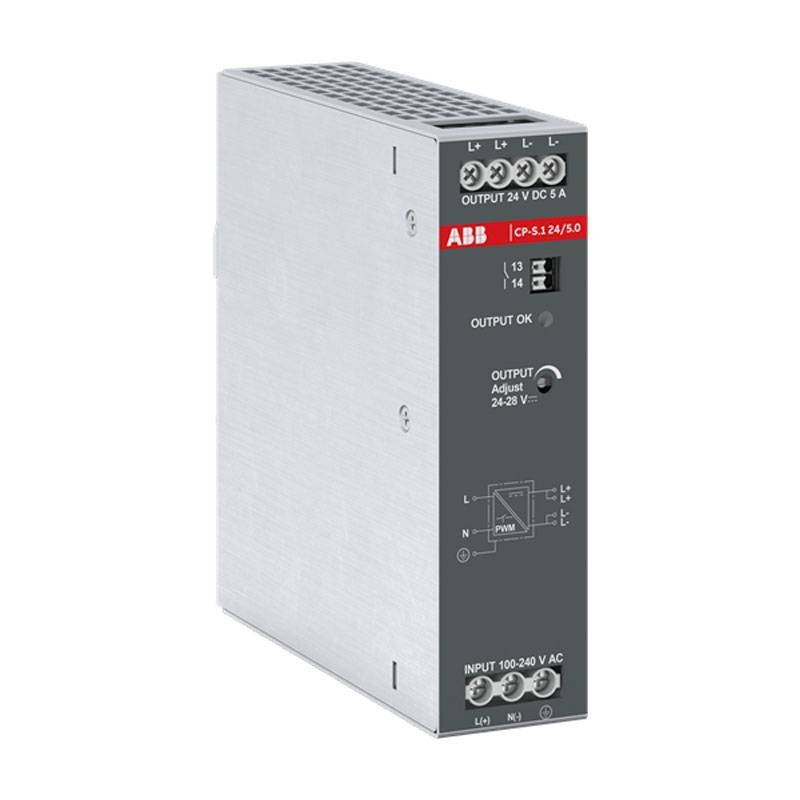

Abb switching power supplies 5A Single phase 24VDC 120W 1SVR320561R1000
ABB 1SVR320561R1000
4013614561108
Abb CP-S.1 24/5.0 switching power supplies:
- Output current: 5A
- Number of phases: 1
- Rated output voltage: 24VDC
- Rated output power: 120W
- Rated input voltage (UIN): 100...240V AC - 100...250V DC
Abb switching power supplies 5A Single phase 24VDC 120W 1SVR320561R1000
€169.93
Tax included
€169.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 3
Pay in installments with Klarna
Features:
- Dimensions: Width 35.5 mm - Height 129.4 mm - Depth: 127 mm
- Net weight: 0.69 kg
- Rated frequency (f): 50/60 Hz DC
- Rated frequency: 45 ... 65 Hz
- Maximum output current 7.5A
- Degree of Protection: IP20 Housing - IP20 Terminals
- Connecting Capacity Input Circuit: Flexible with Ferrule 0.5 ... 4.0 mm² - Flexible 0.5 ... 4.0 mm² - Rigid 0.5 ... 4 mm²
- Connecting Capacity Output Circuit: Flexible with Ferrule 0.5 ... 4.0 mm² - Flexible 0.5 ... 4.0 mm² - Rigid 0.5 ... 4 mm²
- Ambient temperature: In operation -25/+70 °C - In storage -40/+85 °C
There are no reviews
Data sheet
- Type: Power supplies
