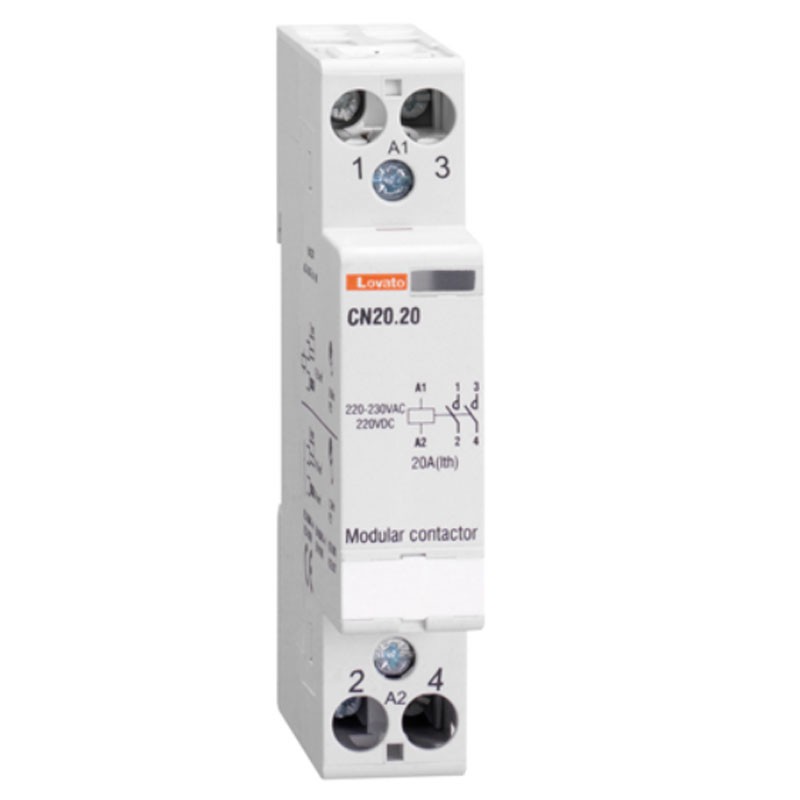

Lovato modular contactor 20A AC1 2NO 220VAC 1 module CN2020220
LOV CN2020220
8013975143759
Lovato modular contactor, with the following characteristics:
- IEC/EN rated insulation voltage Ui V: 440
- Rated impulse withstand voltage Uimp: kV 4
- Rated auxiliary voltage Us: 220 V AC/DC
- IEC Conventional free air thermal current Ith UN 20
- Minimum switching capacity: ≥17V ≥50mA
- Power loss per pole (average value) Ith: w 1.7
- Type of operating voltage: AC/DC
- Number of poles: 2
- Number of DIN modules: 1
- Fixing: 35mm DIN rail
Lovato modular contactor 20A AC1 2NO 220VAC 1 module CN2020220
€21.68
Tax included
€21.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 128
: 31
Pay in installments with Klarna
Features:
- Lovato Series
- Working temperature: min°C -15/max °C 55
- Storage temperature: min °C -30/max °C 80
- Maximum altitude: m 2000
- Weight: 135 grams
- Front IP degree: IP20
- Pollution degree: 3
- Instrument Terminals: PZ2
Operations:
- Mechanical life cycles 3000000
- AC3 Electrical Life cycles 300000
- Electrical life AC1 cycles 200000
Tightening torque for coil terminal:
- Max: Nm 0.6
- Max: Ibin 0.6
Tightening torque for terminals:
- max : Nm 1.2
- max : Ibin 0.9
