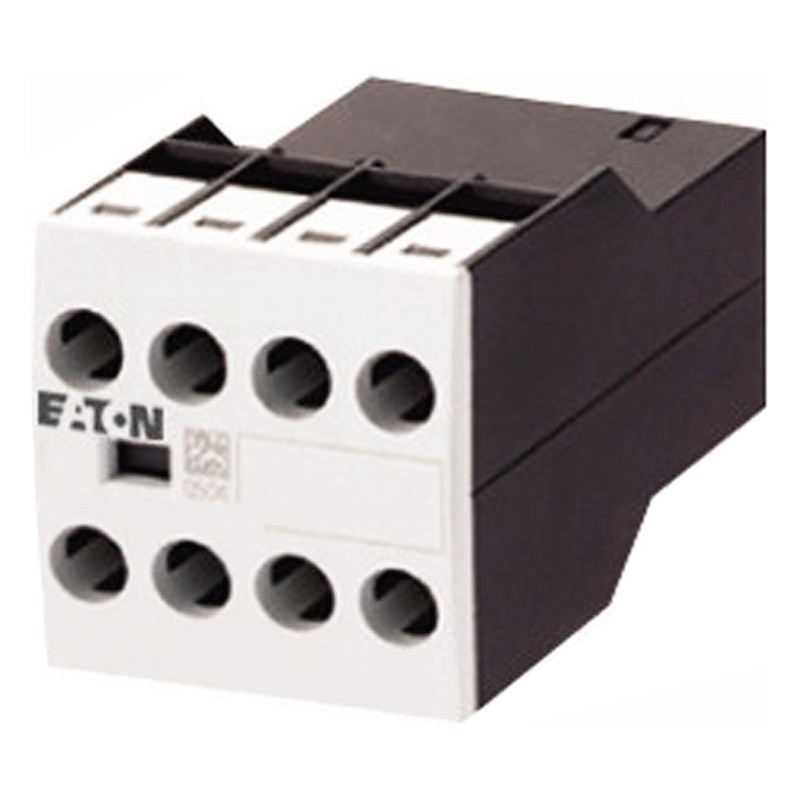

Auxiliary contact Eaton 1NA+3NC 4 poles 276425
EAO 276425
4015082764258
Auxiliary contact for Eaton contactors, with the following characteristics
-
Rated impulse withstand voltage [Uimp] 6000 Vac
-
Rated insulation voltage 690 Vac
-
Rated operational voltage 500 Vac
-
Overvoltage category III
-
Pollution degree 3
-
With forcibly guided contacts
-
Type of contacts 1 NO contact + 3 NC contacts
-
Type of mounting front mounting
-
Type of connection screw terminals
-
4 poles
-
Protection degree IP20
-
Tightening force 1.2 Nm
Auxiliary contact Eaton 1NA+3NC 4 poles 276425
€14.27
Tax included
€14.27
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Auxiliary contacts are secondary switching devices that operate in conjunction with primary switching equipment such as circuit breakers, relays, and contactors. These contacts are physically connected to the main switching mechanism and are activated simultaneously.
What are they used for? Auxiliary contacts are used for various functions, e.g. self-holding, consent/block, signaling, interlocking.
Features:
- Eaton Series
-
Rated impulse withstand voltage [Uimp] 6000 Vac
-
Rated insulation voltage 690 Vac
-
Rated operational voltage 500 Vac
-
Overvoltage category III
-
Pollution degree 3
-
With forcibly guided contacts
-
Type of contacts 1 NO contact + 3 NC contacts
-
Type of mounting front mounting
-
Type of connection screw terminals
-
4 poles
-
Protection degree IP20
-
Tightening force 1.2 Nm
There are no reviews
Data sheet
- Type: Auxiliary Contacts
