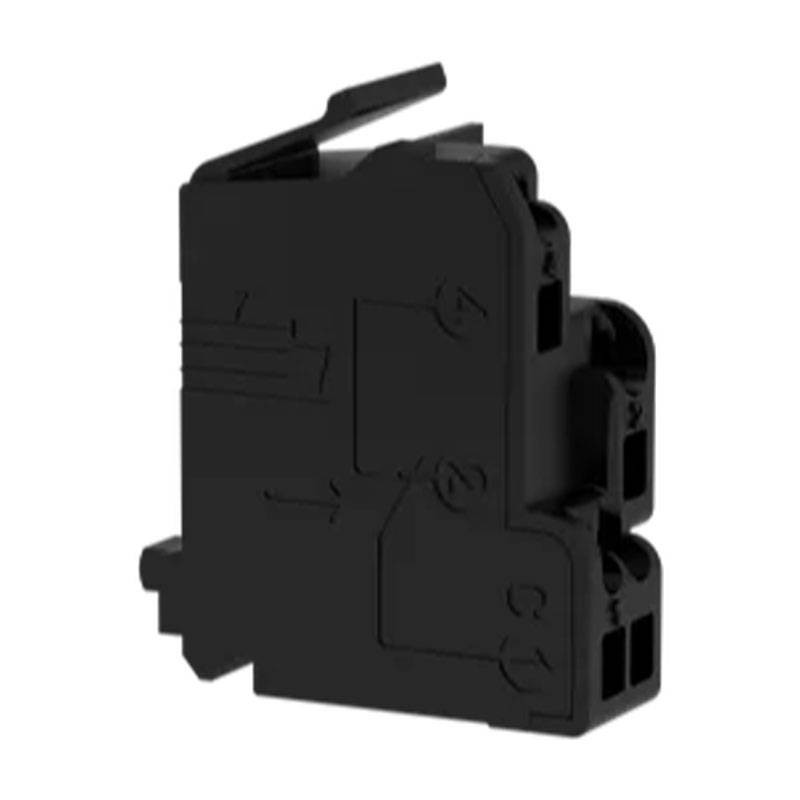

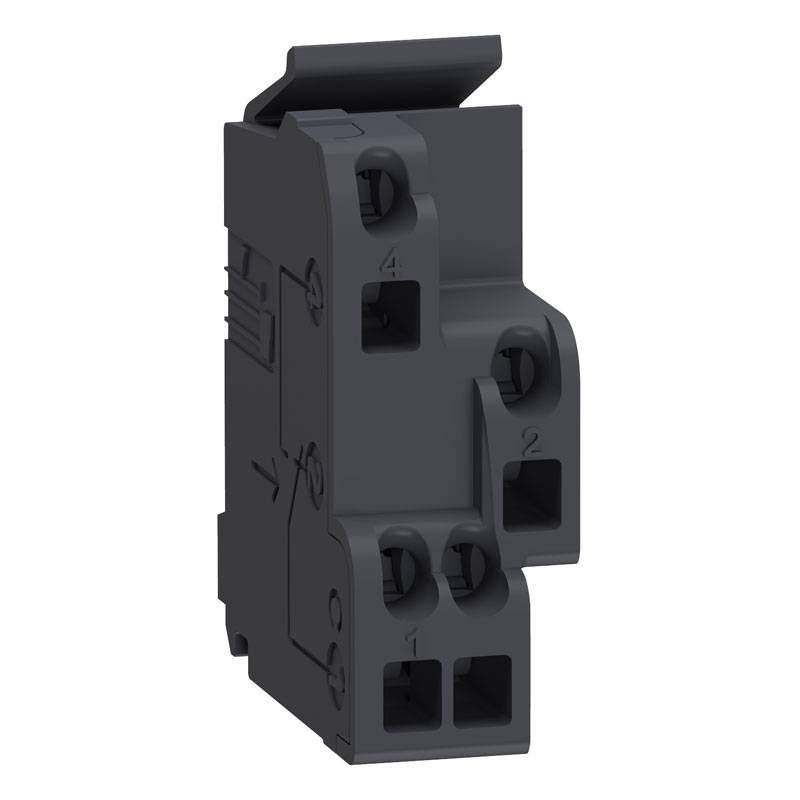

Schneider auxiliary contact 1 OC- 1 SD - 1 SDE - 1 SDV 100 mA 24V DC 29450
SNR 29450
3303430294504
Schneider auxiliary contact 1 OC- 1 SD - 1 SDE - 1 SDV with the following characteristics:
- Product type or component: Auxiliary contact
- Signal contact composition: 1 NO/NC
- Auxiliary contact type: Standard
- Mounting mode: Snap-on
- Conventional thermal current in air: 5 A
- Minimum load: 100 mA at 24 V DC
Schneider auxiliary contact 1 OC- 1 SD - 1 SDE - 1 SDV 100 mA 24V DC 29450
€30.15
Tax included
€30.15
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 167
: 5
Pay in installments with Klarna
It is a single standard auxiliary contact that provides all the different remote indications for Compact NSX, Compact NS, PowerPact Multistandard, and EasyPact CVS switches. The remote status information is ON/OFF (OF), trip indication (SD), and electrical fault indication (SDE) for all types of switches.
Remote status information for tripping indication due to ground fault (SDV) is used for Compact NSX and PowerPact Multistandard. The contacts are installed in dedicated slots of the device. The auxiliary contact is a changeover contact with 1 normally open contact and 1 normally closed contact.
The rated current is 6A and the minimum load is 100mA at 24 VDC. The utilization categories are AC12/AC15/DC12/DC 14. One device integrates 5 auxiliary contacts. It complies with the IEC 60947-5-1 standard.
Compatibility range:
- Compact (Compact NS630b...1600)
- Compact (Compact NS1600b...3200)
- Compact (ComPacT INS)
- Compact (Compact INV)
- Compact (Compact NSX)
- Easypact ("EasyPact CVS")
- PowerPact (PowerPact Multistandard)
- Compact (ComPact NSX DC )
Rated use current:
- AC-12: 6 A at 24 V "AC" "50/60 Hz"
- AC-12: 6 A at 48 V "AC" "50/60 Hz"
- AC-12: 6 A at 110 V "AC" "50/60 Hz"
- AC-12: 6 A at 220/240 V "AC" "50/60 Hz"
- AC-12: 6 A at 380/440 V "AC" "50/60 Hz"
- AC-12: 6 A at 480 V "AC" "50/60 Hz"
- AC-12: 6 A at 660/690 V "AC" "50/60 Hz"
- AC-15: 6 A at 24 V "AC" "50/60 Hz"
- AC-15: 6 A at 48 V "AC" "50/60 Hz"
- AC-15: 5 A at 110 V "AC" "50/60 Hz"
- AC-15: 4 A at 220/240 V "AC" "50/60 Hz"
- AC-15: 2 A at 380/440 V "AC" "50/60 Hz"
- AC-15: 1.5 A at 480 V "AC" "50/60 Hz"
- AC-15: 0.1 A at 660/690 V "AC" "50/60 Hz"
- DC-12: 6 A at 24 V DC
- DC-12: 2.5 A at 48 V
- DC -12: 0.6 A at 110 V DC
- DC-12: 0.3 A at 250 V DC
- DC-14: 1 A at 24 V DC
- DC-14: 0.2 A to 48 V DC
- DC-14: 0.05 A to 110 V DC
- DC-14: 0.03 A to 250 V DC
There are no reviews
Data sheet
- Type: Auxiliary Contacts
