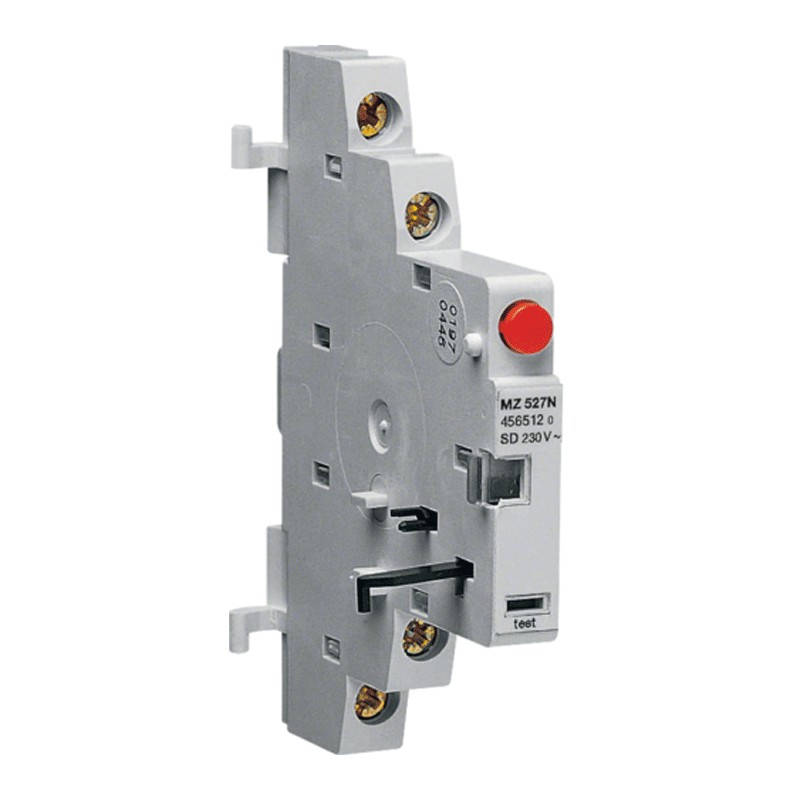

Hager 3A 1NA MZ527N Auxiliary Contact Fault Indication Motor Protector
HAG MZ527N
3250614565120
Auxiliary Fault Signaling Contact for Hager Motor Savers:
- Rated operating current in AC1 3A
- Contact type 2NO
- Rated operating voltage AC 220 / 500V
Accessory for tripped signaling contact.
Hager 3A 1NA MZ527N Auxiliary Contact Fault Indication Motor Protector
€27.75
Tax included
€27.75
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Features:
- Maximum number of main circuit poles 3
- Rated operating voltage AC 220 / 500 V
- Type of AC supply voltage
- Rated frequency 40/60 Hz
- Rated insulation voltage 690 V
- Rated fault holding current 6000 V
- Rated DC voltage 24 / 220 V
- Rated operating current in AC1 3 A
- Tripping simulation no
- Maximum current 25 A
- Rated current in A 1 A
- Imin = f (U = 230 V AC) 3 A
- Imin = f (U = 230 V DC) 0.25 A
- Imin = f (U = 400V AC) of the power circuit 2 A
- Imin=f(U=24V DC) of the power circuit 2 A
- Total power dissipation 0.2 W
- Power dissipated per pole 0.1 W
- Electrical life and number of cycles 5000
- Number of maneuvers (mechanical lifetime) 10000
- Depth of installed product 68 mm
- Width of installed product 9 mm
- Tightening torque 1.3Nm
- Minimum cross-section with flexible cable 2.5mm²
- Minimum section with rigid cable 2.5mm²
- Contact type 2NO
- Screw connection type
- Trip signaling contact
- Number of NO auxiliary contacts 2
- Number of NO contacts 2
- Number of tripped contacts SG 2
- Enclosure degree of protection IP20
- Operating temperature -25/+55 °C
- Pollution degree/ IEC60664/IEC60947-2 3
- Altitude 2000m
- Tropicalized execution 95% / 80°C
- Storage/transport temperature -25/+80 °C
There are no reviews
Data sheet
- Type:
- Auxiliary Contacts
- Modules:
- 0.5
- Amps:
- 3A
