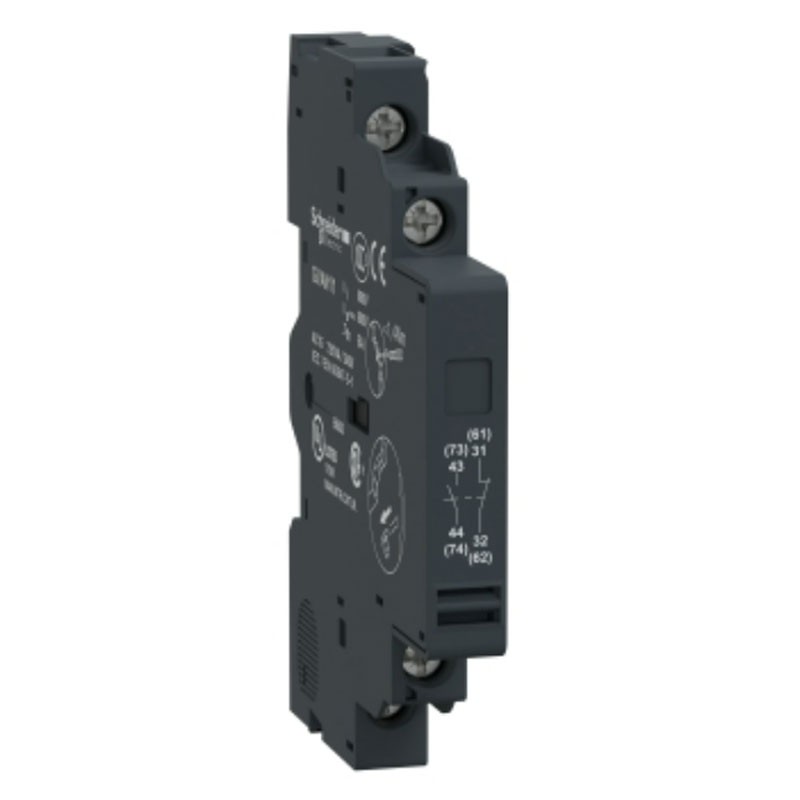

Telemecanique TeSys 1NA+1NC Auxiliary Contact GVAN11
SNR GVAN11
3389110343489
Schneider TeSys GV instantaneous auxiliary contact, with the following characteristics:
- Mounting position: Left side
- Contact pole composition: 1 NO + 1 NC
- Rated insulation voltage [Ui]: 600 V according to UL 508, 690 V according to IEC 60947-1, 600 V according to CSA C22.2 No 14
- Rated use voltage [Ue]: 48...690 V "AC," 24...240 V DC
- Conventional thermal current in open air [Ith]: 6 A
- Type of protection: circuit breaker GB2CB, fuse gG 10 A
- Mechanical durability: 100000 cycles
- Minimum switching current: 5 mA
- Minimum switching voltage: 17V
- Tightening torque: 1.4 Nm - on screw clamps
- Height 89 mm
- Width 9.3 mm
- Depth 66 mm
- Weight 0.05 kg
- Color: dark gray
Telemecanique TeSys 1NA+1NC Auxiliary Contact GVAN11
€9.77
Tax included
€9.77
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 160
: 12
Frequently bought together
TeSys GV auxiliary contact block, for GV2 and GV3 motor switches. Instantaneous auxiliary contacts 1NO+1NC. Rated for operation up to 6A/ 690V AC and 6 A/240V DC. To be installed on the left side of the switch (2 blocks possible), connection by screw terminals. Certified according to various standards (IEC, UL, CSA, CCC, EAC), Green Premium compliance (RoHS/REACh).
Rated use power in VA:
- 300 VA at 48 V AC-15 - electrical life: 100000 cycles
- 414 VA at 690 V AC-15 - electrical life: 100000 cycles
- 500 VA at 110...127 V AC-15 - electrical life: 100000 cycles
- 500 VA at 500 V AC-15 - electrical life: 100000 cycles
- 650 VA at 440 V AC-15 - electrical life: 100000 cycles
- 720 VA at 230...240 V AC-15 - electrical life: 100000 cycles
- 850 VA at 380...415 V AC-15 - electrical life: 100000 cycles
Rated use power in W:
- 120 W at 240 V DC-13 - electrical life: 100000 cycles
- 140 W at 110 V DC-13 - electrical life: 100000 cycles
- 140 W at 24 V DC-13 - electrical life: 100000 cycles
- 180 W at 60 V DC-13 - electrical life: 100000 cycles
- 240 W at 48 V DC-13 - electrical life: 100000 cycles
There are no reviews
Data sheet
- Type:
- Auxiliary Contacts
