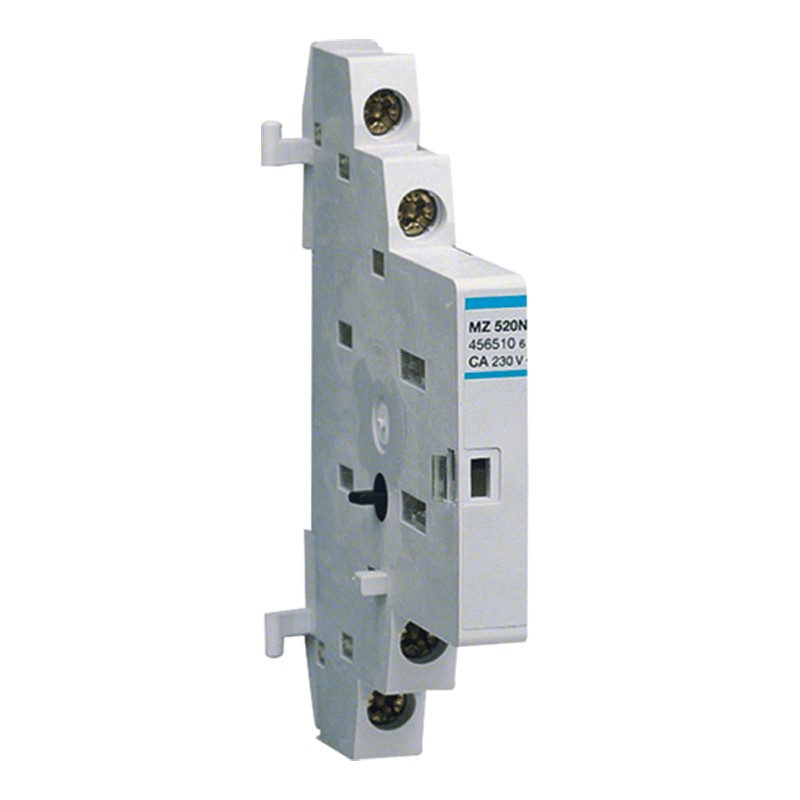

Auxiliary Contact for Hager Motor Protectors 3.5A 1NA+1NC 0.5 Modules MZ520N
HAG MZ520N
3250614565106
Auxiliary Contact for Hager Motor Protectors:
- Rated use current in AC1 3.5A
- Contact type 1NC+1NO
- 0.5 Modules
Auxiliary Contact for Hager Motor Protectors 3.5A 1NA+1NC 0.5 Modules MZ520N
€13.99
Tax included
€13.99
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 2
Features:
- Maximum number of main circuit poles 3
- Method of attachment Side mounting
- Rated operating voltage AC 220 / 500 V
- Type of AC supply voltage
- Rated frequency 40/60 Hz
- Rated insulation voltage 690 V
- Rated fault holding current 6000 V
- Rated DC voltage 24 / 220 V
- Rated operating current in AC1 3 A
- Maximum current 25 A
- Rated current in A 1 A
- Imin = f (U = 230 V AC) 3 A
- Imin = f (U = 230 V DC) 0.25 A
- Imin = f (U = 400V AC) of the power circuit 2 A
- Imin=f(U=24V DC) of the power circuit 2 A
- Total power dissipation 0.04 W
- Power dissipated per pole 0.04 W
- Electrical life and number of cycles 50000
- Number of maneuvers (mechanical lifetime) 100000
- Depth of installed product 68 mm
- Width of installed product 9 mm
- Tightening torque 1.3Nm
- Minimum cross-section with flexible cable 2.5mm²
- Minimum section with rigid cable 2.5mm²
- Contact type 1NC+1NO
- Screw connection type
- Type of accessory Auxiliary contact
- Number of NC auxiliary contacts 1
- Number of NO auxiliary contacts 1
- Quantity of NC contacts 1
- Quantity of NO contacts 1
- Enclosure degree of protection IP20
- Operating temperature -2555 °C
- Pollution degree / IEC60664/IEC60947-2 3
- Altitude 2000m
- Tropicalized execution 95% / 80°C
- Storage/transport temperature -2580 °C.
There are no reviews
Data sheet
- Type:
- Auxiliary Contacts
- Modules:
- 0.5
- Amps:
- 3,5A
