Kit Domotic 5 roller shutters Plus Comelit 20001051
COE 20001051
8023903410914

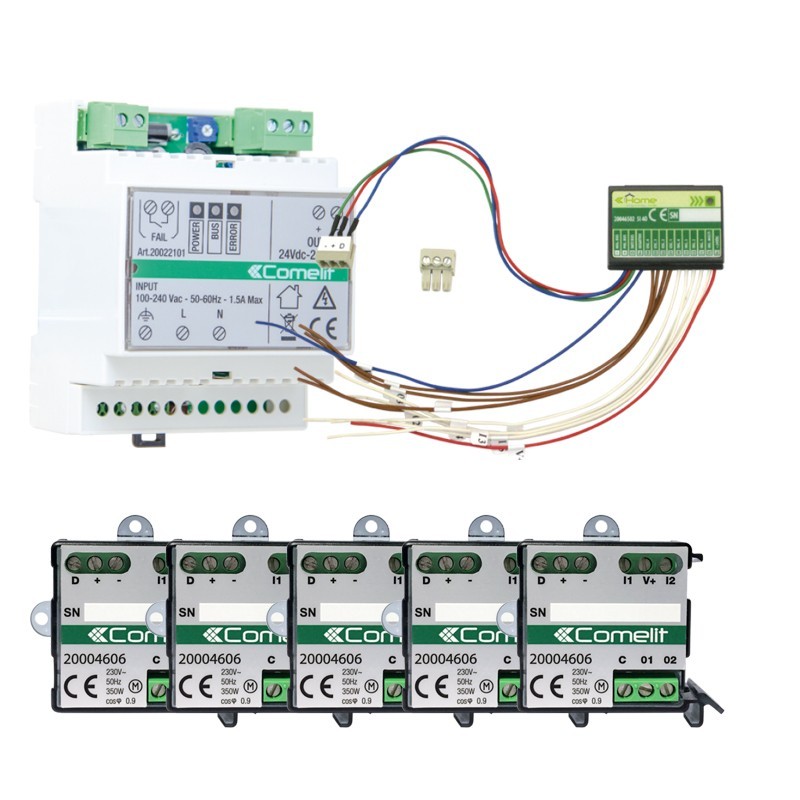

Kit Domotic 5 roller shutters Plus Comelit composed of:
- 1 Power supply 20022101
- 5 Roller shutter modules 2 inputs 2 outputs 20004606
- 1 Module 5 inputs 20046501
Kit Domotic 5 roller shutters Plus Comelit 20001051
€282.69
Tax included
€282.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
: 3
Home automation kit for the automation of 5 electric rolling shutters at 230VAC. The modules inside the kit are programmed to allow installation without the use of SimpleProg programming software. It is possible to control each shutter through the local inputs of modules art. 20004606 and the general up and down control of all shutters from 2 inputs of module art. 20046501. The modules are set up for the management of the percentage position and for the command to a preferred position.
Kit components specifications:
2I2O Rolling shutter module:
- Home automation module equipped with 2 inputs for the direct connection of 2 control buttons and 2 outputs electronically interlocked by the module with 2A electromechanical relays that can control 250VAC motors up to a maximum of 350W.
- Suitable for the control of automated openings such as motors of awnings, rolling shutters or blinds. The module allows management of opening, closing, stopping and positioning at intermediate values of the motorisation connected to it.
- Addressing via SimpleProg software.
- Flush-mounting or DIN rail mounting
- Dimensions 50x50x18.5mm (1 DIN module)
- Absorption max. 16mA.
Power supply 20022101:
- Scenario management
- Dimensions: HxWxD 50x50x18.5mm
- Home automation system compatible
- DIN modules (No.) 1
- Connectivity No. of Simplehome buses (No.) 1
- Digital inputs (n°) 2
- Max distance from digital input 25 meters
- Relay output 2x2A@250VAC
- Power supply from SimpleHome BUS
- Maximum current consumption 16 (mA)
- Maximum load as sum of the loads of the single outputs 350 mm
- Number of digital inputs (n°) 2
- Number of outputs (n°) 2
- Output type Electromechanical relay
SIMPLEHOME module 5 digital inputs flush-mounted:
- SimpleHome module equipped with 5 digital inputs (4 normal + 1 scenario) that can be used to connect up to 5 buttons in flush-mounted or wall-mounted boxes.
- Dimensions 41x29x9mm
- To be connected to the SimpleHome BUS
- Absorption 20mA
- Digital inputs configurable via software nc/no
- BUS address programming via dip-switches
- Lights management
- Scenario management
- Removable terminals
- Home automation system compatibility
- Wall mounting.
