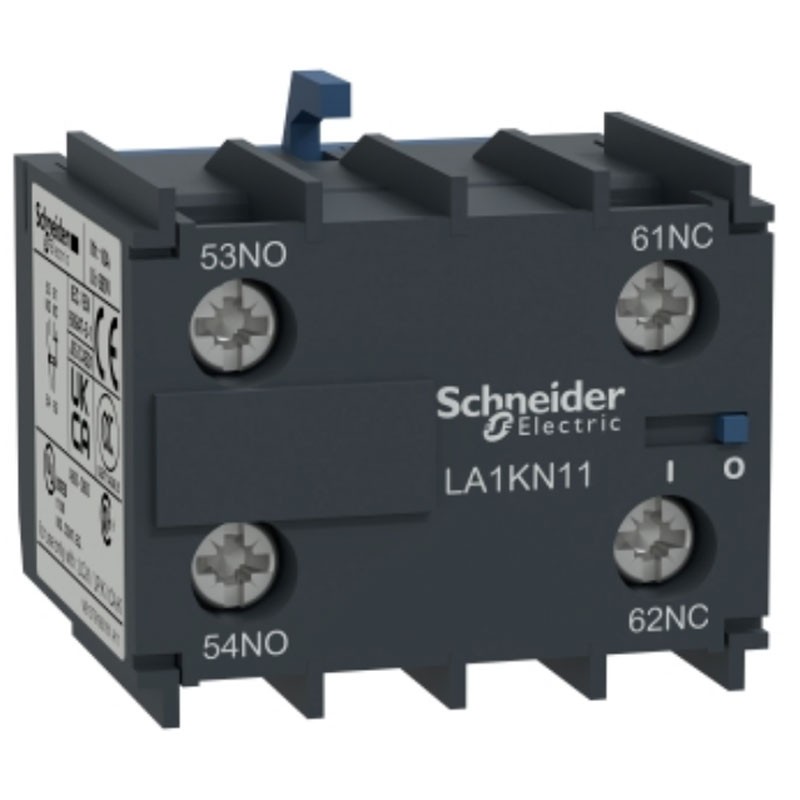

Telemecanique Auxiliary Contact Block 1NA+1NC LA1KN11
SNR LA1KN11
3389110500059
Schneider TeSys auxiliary contact block, with the following features:
- Compatibility range: TeSys K LC1K - TeSys K CA2K - TeSys K CA3K - TeSys K CA4K
- Mounting position: front side
- Contact pole composition: 1 NO + 1 NC
- Contact operation: Instantaneous
- Rated operating voltage [Ue]: 690 V "AC" 25...400 Hz
- Conventional thermal current in open air [Ith]: 10 A at <50 °C
- Rated closing power Irms: 110 A at <= 690 V "AC" in accordance with IEC 60947
- Permissible temporary rated current: 80 A 1 s - 60 A 500 ms - 110 A 100 ms
- Associated fuse rating: 10 A gG at <= 690 V complying with IEC 60947
- Minimum switching current: 5 mA
- Minimum switching voltage: 17V
- Non-overlap distance: 0.5 mm
Telemecanique Auxiliary Contact Block 1NA+1NC LA1KN11
€9.73
Tax included
€9.73
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 19
Pay in installments with Klarna
TeSys K instantaneous auxiliary contact block, for LC.K, LP.K, CA.K contactors with screw terminals. Features 1NO+1NC contacts rated up to 10A 690V AC, connection by screw terminals. Front mounting by clip, ensures high reliability and durability. Certified according to various standards (IEC, UL, CSA, CCC), Green Premium (RoHS/REACh) compliance.
Rated insulation voltage [Ui]:
- 690 V complying with IEC 60947-5-1
- 600 V complies with UL 60947-5-1
- 600 V complying with CSA C22.2 No 60947-5-1
Connections-clamps:
- Screw clamps 1 cable 0.34...1.5 mm² flexible with cable termination
- Screw clamps 1 cables 0.75...4 mm² flexible without cable termination
- Screw clamps 1 cables 1.5...4 mm² rigid
- Screw clamps 2 cables 0.34...1.5 mm² flexible with cable termination
- Screw clamps 2 cables 0.75...4 mm² flexible without cable termination
- Screw clamps 2 cables 1.5...4 mm² rigid
Other Specifications:
- Insulation resistance: > 10 MOhm
- Tightening torque: 1.3 Nm - with Philips screwdriver No 2 - 1.3 Nm - with pozidriv screwdriver No 2
- Height 30 mm
- Width 38 mm
- Depth 35 mm
- Weight 0.045 kg
- Environmental characteristics: Normal environment
- IP rating: IP20 complying with IEC 60529
- Protection treatment: TC complying with IEC 60068
- Storage temperature: -50/+80 °C
- Operating ambient temperature: -25/+50 °C
- Operating altitude: Acti9 iCV40 ARC
There are no reviews
Data sheet
- Type: Auxiliary Contacts
