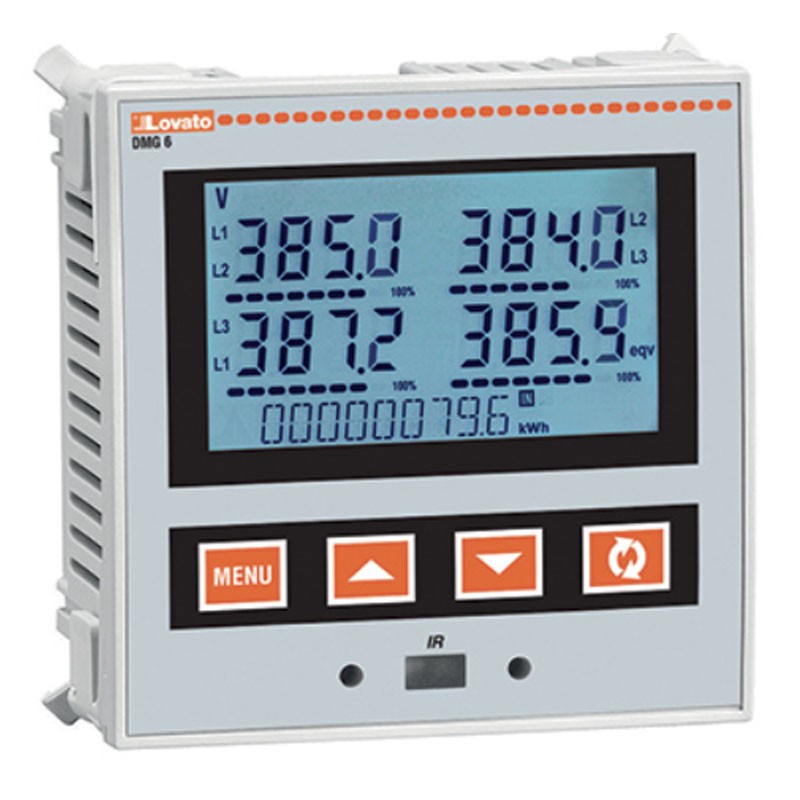

Lovato LCD expandable multimeter 100-440VAC 120-250VDC DMG600
LOV DMG600
8013975179451
Lovato LCD built-in and expandable multimeter with the following features:
- IEC/EN rated insulation voltage Ui: 600V
- Rated impulse withstand voltage Uimp: kV 9.5
- Withstand voltage at operating frequency: kV 5.2
- Rated auxiliary AC supply voltage: VAC 100...440
- Nominal auxiliary DC supply voltage: VDC 120...250
- Operating Frequency: min Hz 45 - max Hz 66
- Power consumption: maximum VA 9.5
- Maximum power dissipation: 3.5W
Lovato LCD expandable multimeter 100-440VAC 120-250VDC DMG600
€166.51
Tax included
€166.51
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
: 3
Pay in installments with Klarna
Other features:
- Voltage input measurement method: true RMS
- Connection method: Separate. Two. three-phase with or without neutral. balanced three-phase system
- Rated current (Ie): UN 1A/5A
- Measuring range: 0.01...1.2 / 0.01...6
- Measurement method: TRMS
- Overload capacity: +20% Ie from external CT with secondary 5A
- Overload peak UN: 50A for 1s
- Type: three-phase + neutral
- Operating temperature: min °C -20 - max °C +60
- Storage temperature - Min °C -30 - max °C +80
- Relative humidity: %<90
- Maximum pollution degree: 2
- Degree of protection: IP54
- Tightening torque (max): Nm 0.5 - lbin 4.5
- Fixing: flush mounting
- Weight: 300 grams
Data sheet
- Type: Multimeters
