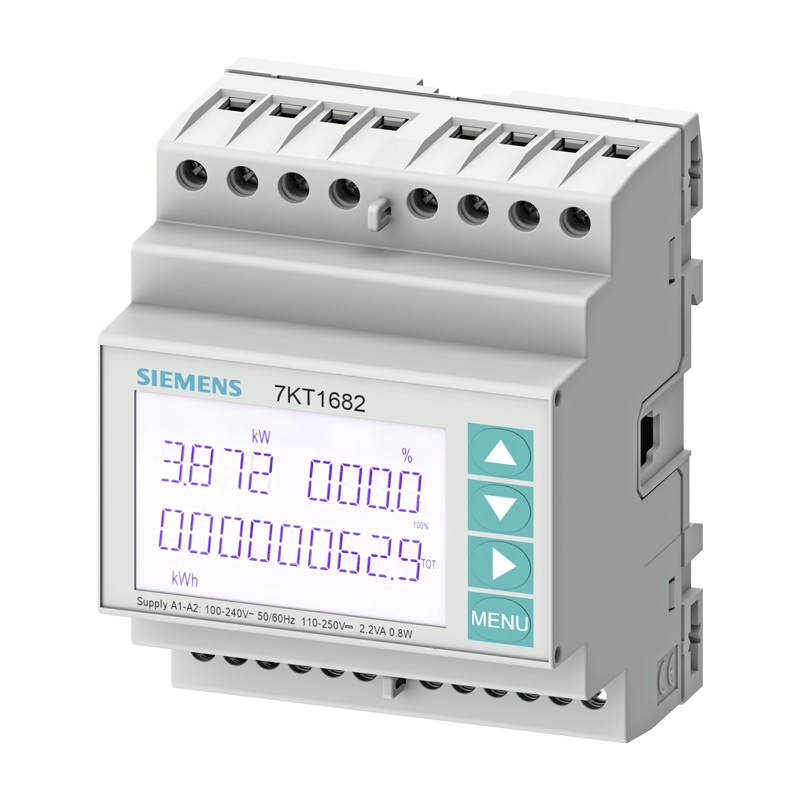

Siemens Sentron PAC1600 Three-Phase Modbus RTU/ASCII Multimeter 7KT1682
SIE 7KT1682
4001869563695
Multimeter Siemens Sentron PAC1600 LCD, L-L: 400 V, L-N: 230 V, 5A, DIN-rail mountable, three-phase Modbus RTU/ASCII, Multifunction measurement incl. THD, AC/DC, screw terminal
Siemens Sentron PAC1600 Three-Phase Modbus RTU/ASCII Multimeter 7KT1682
€258.82
Tax included
€258.82
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 20
: 4
Features:
- SENTRON product brand
- Basic product design
- Product type designation Measuring device
- Type of measured value acquisition without spaces
- Wide voltage supply voltage execution
- Multimeter size 4 UM
- Mode of operation for measured value acquisition Automatic mains frequency detection
- Sinusoidal or distorted voltage curve shape
- Measurable mains frequency / start value 45 Hz
- Measurable mains frequency / end value 66 Hz
- Type of voltage / AC/DC supply voltage
- Apparent power consumption without extension module / typ. 2.2 VA
- Active power consumption without upgrade module / typ. 0.8 W
- Degree of protection IP front side IP40 - rear side IP20
- Operating current / at AC / nominal value 6 A
- Measurable current 1 / at AC / nominal value 5 A - 2 / at AC / nominal value 5 A
- Suitability for use Device for DIN rail mounting
- LCD display design
- Number of keys 4
- Electrical connection design / on the digital outputs screw terminals
- Dimensions: height 90 mm - width 71.6 mm - depth 63 mm
- Net weight 280 grams
- Installation altitude / for altitude above sea level / max. 2,000 m
Functions
- Reactive power measurement Yes
- Frequency measurement Yes
- Voltage measurement
- Current measurement Yes
- Active power measurement
There are no reviews
Data sheet
- Type:
- Multimeters
- Modules:
- 4
- Amps:
- 5A
