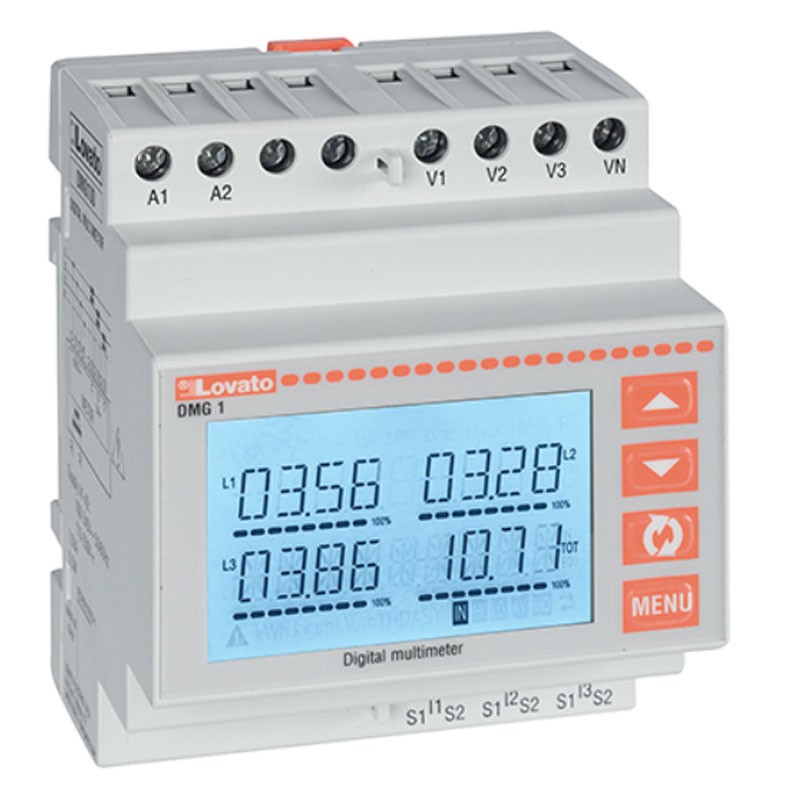

Lovato LCD multimeter rs485 built-in 100-240VAC 115-250VDC DMG110
LOV DMG110
8013975214879
Lovato modular LCD multimeter, not expandable, with the following features:
- Rated auxiliary AC voltage: VAC 100...240
- Rated auxiliary DC supply voltage: VDC 10...250
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 9.5
- Withstand voltage at operating frequency: kV 5.2
- Auxiliary operating voltage range: AC min VAC 85, maximum VAC 264 -DC Min VCC 93.5, maximum VCC 300
- Operating frequency: Min Hz 45 - Max Hz 66
- Power consumption: maximum VA 3.5
- Max power dissipation : 1.2W
- Rated current (Ie): UN 5
Lovato LCD multimeter rs485 built-in 100-240VAC 115-250VDC DMG110
€258.25
Tax included
€258.25
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Pay in installments with Klarna
Other Specifications:
- Type: three-phase + neutral
- Number of DIN rail module: 4
- Measuring range: 0.01 to 6
- Measurement method: TRMS
- Overload capability: +20% Ie via external CT with secondary 5A
- Measurement method of voltage inputs: true RMS
- Connection method: separate. Two. three-phase with or without neutral. balanced three-phase systems.
- Peak overload UN: 50A for 1s
- Housing type: polyamide
- Terminal type: fixed
- Tightening torque (max): Nm 0.8 - lbin 7
- Fixing: Din rail
- Weight: 294 grams
- Operating temperature: min °C -20/max °C +60
- Storage temperature: min °C -30/max °C +80
- Relative humidity: % <90
- Maximum pollution degree: 2
- Degree of protection: IP30
There are no reviews
Data sheet
- Type: Multimeters
