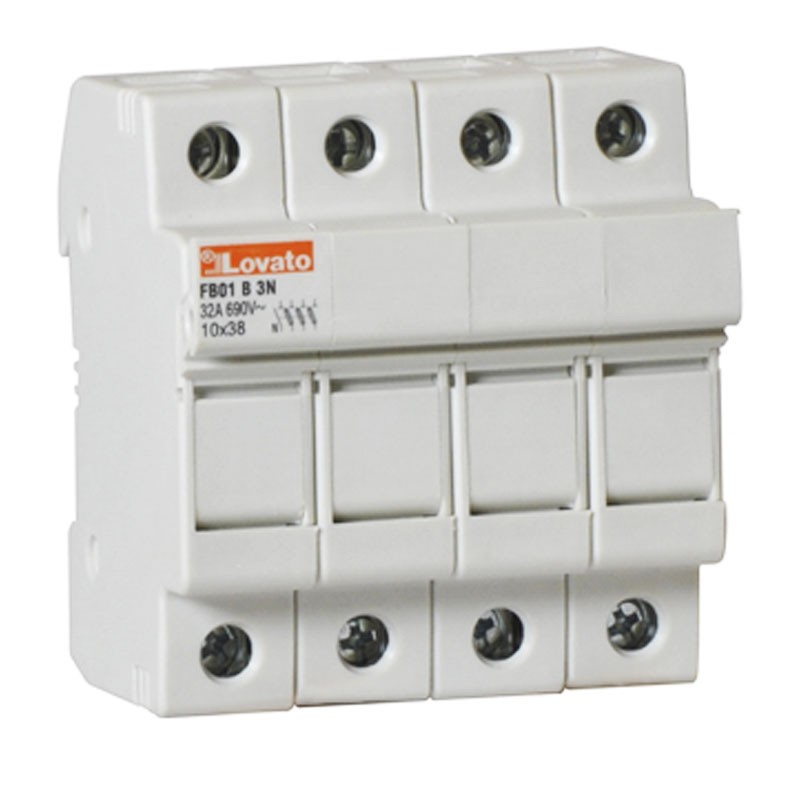

Lovato fuse holder 3-pole + neutral 32A 10X38mm 4 modules FB01B3N
LOV FB01B3N
8013975187043
Lovato fuse holder, with the following characteristics:
- Voltage 690 Vac
- Rated current 32 Amps
- Suitable for 10X38mm fuses
- Poles: 3P+N
- 4 DIN modules
- Without indicator light
- Operating voltage type: AC
- IP front protection rating: IP20
- Fixing: 35mm DIN rail
- Tightening torque for terminals: max Nm 2.5 - max Ibin 22
- Weight: 128 grams
- Operating temperature: min °C -20- max °C+70
- Storage temperature: min °C -40 - max °C +80
- Maximum altitude: 3000m
Lovato fuse holder 3-pole + neutral 32A 10X38mm 4 modules FB01B3N
€8.80
Tax included
€8.80
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 55
Pay in installments with Klarna
Conductor cross-section:
- Flexible max (IEC) mm² 16
- Max flexibles (AWG/kcmil): 8
- Rigid max (IEC): mm² 16
- Rigid max (AWG/kcmil) 8
Ottimo portafusibili, di buona fattura. È la prima volta che acquisto Lovato, ma ho visto molti loro articoli montati su quadri al lavoro. Soddisfatto.
