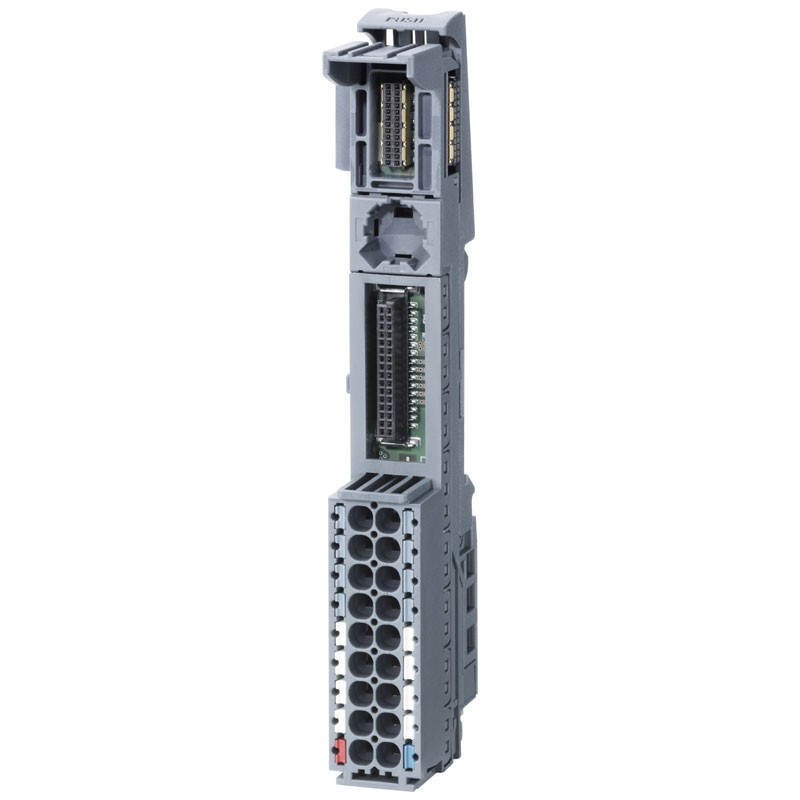

Basic unit Siemens Simatic ET 200SP BU15-P16+A0+2B 6ES71936BP000BA0
SIE 6ES71936BP000BA0
4025515080848
Basic unit Siemens Simatic ET 200SP BU15-P16+A0+2B BU type A0, Push-in terminals, without aux. terminals, jumpered to the left, LaxA: 15x 117 mm.
Basic unit Siemens Simatic ET 200SP BU15-P16+A0+2B 6ES71936BP000BA0
€18.53
Tax included
€18.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 709
: 3
Pay in installments with Klarna
Characteristics:
- Product Type Designation BU Type A0
- Hardware version from FS06
- Supply voltage Nominal value (DC) 24 V
- External protection of supply cables Yes; DC circuit breaker 24 V / 10 A with trip characteristic type B or C
- Current rating for P1 busbar and P2 busbar, max. 10 A - for process terminals, max. 2 A
- Automatic coding
- Potential group formation New potential group No - Potential group continued from left Yes
- Number of slots 1; Type A0
- Insulation tested with DC 707 V (Type Test)
- Dimensions: Width 15 mm - Height 117 mm - Depth 35 mm
- Weight 40 g.
There are no reviews
Data sheet
- Type: Basic Units
