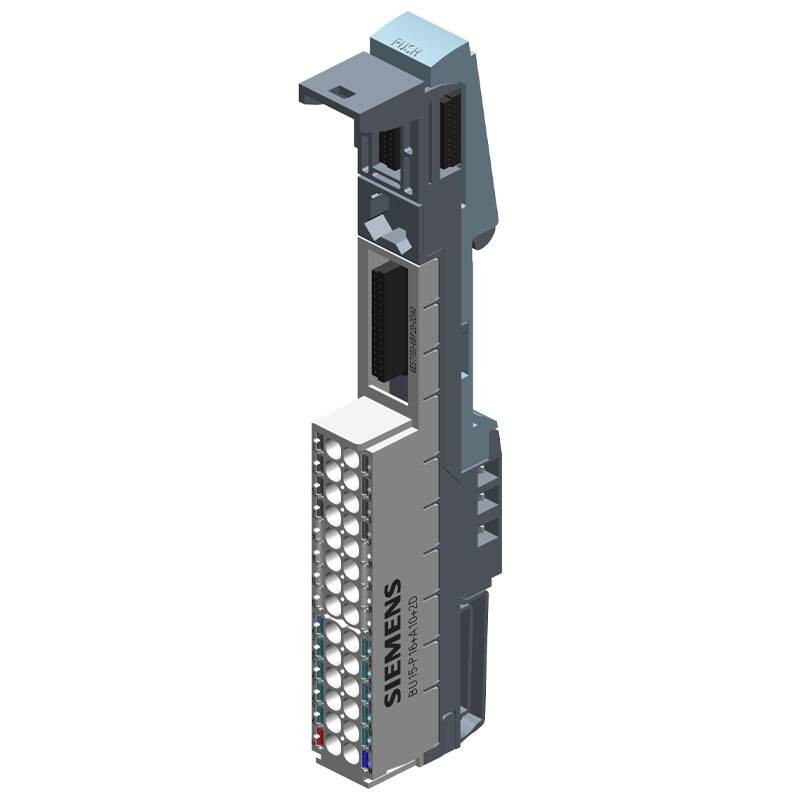

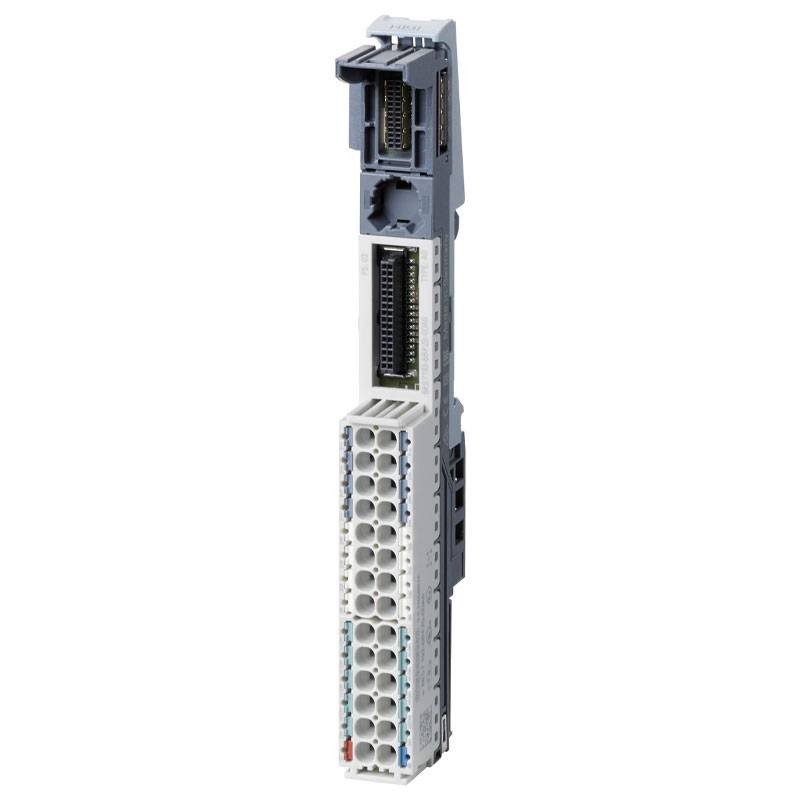

Siemens Simatic ET 200SP BU15-P16+A10+2D Base Unit 6ES71936BP200DA0
SIE 6ES71936BP200DA0
4025515080879
Siemens Simatic ET 200SP BU type A0 Push-in terminals and 10 AUX terminals base unit with the following characteristics:
- Product type designation: BU type A0
- HW functional status: From FS07
- Rated value (DC): 24V
- Number of slots: 1 Type A0
- Insulation tested with 707V DC (type test)
- Terminal type: push terminal
- Conductor cross section: 0.14 mm² AWG 26 - 2.5 mm² AWG 14 16
- Number of terminals to AUX bus: 10
- Number of terminals with connection to the P1 and P2 bus: 2
Siemens Simatic ET 200SP BU15-P16+A10+2D Base Unit 6ES71936BP200DA0
€52.85
Tax included
€52.85
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 98
: 2
Features:
- External protection for power lines: Yes; 24 V DC/10 A thermal-magnetic circuit breaker with trip characteristic of type B or C
- For P1 and P2 bus, max: 10A
- For AUX bus, max: 10A
- For process terminals, max: 2A
- Ambient temperature during horizontal operation: -30/+60 degrees
- Ambient temperature during vertical operation: -30/+50 degrees
- Installation altitude above sea level, max: 5 000 m; Limitations for installation altitude > 2 000 m, see manual
- Width: 15 mm
- Height: 141 mm
- Depth: 35 mm
There are no reviews
Data sheet
- Type:
- Basic Units
